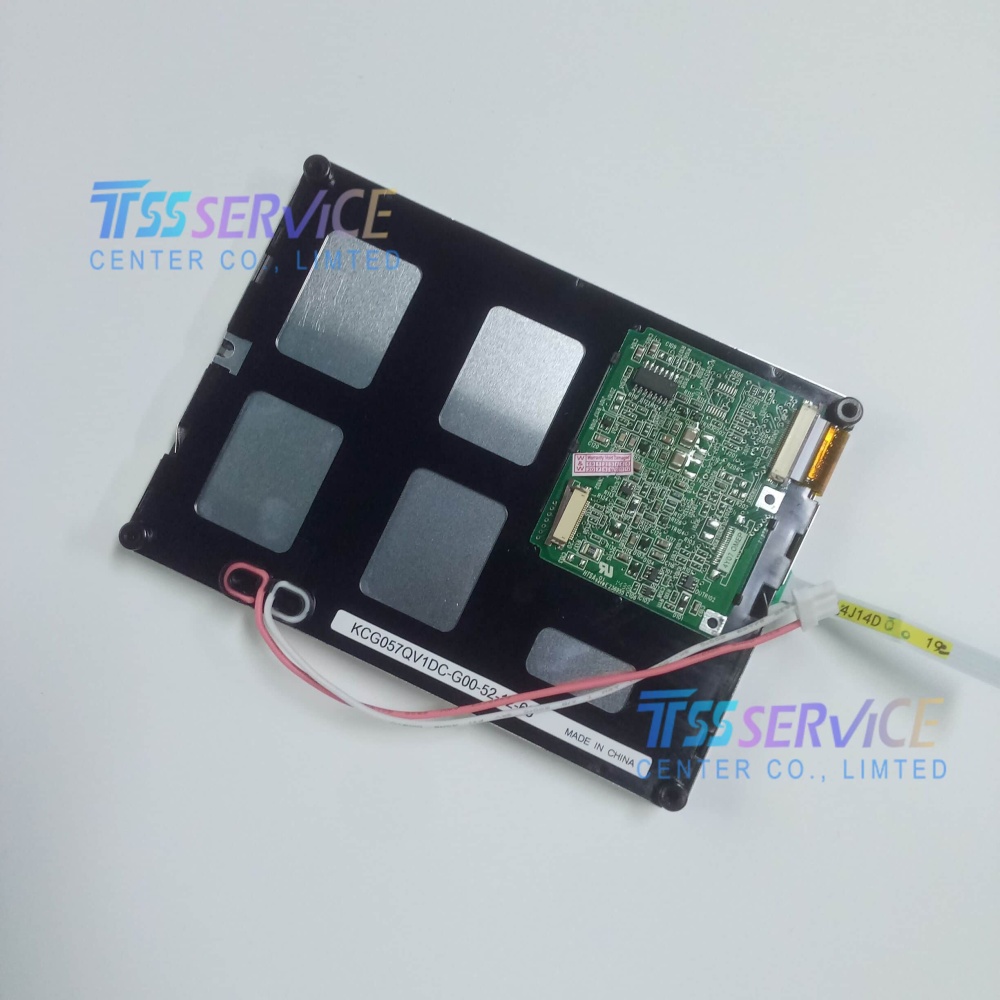

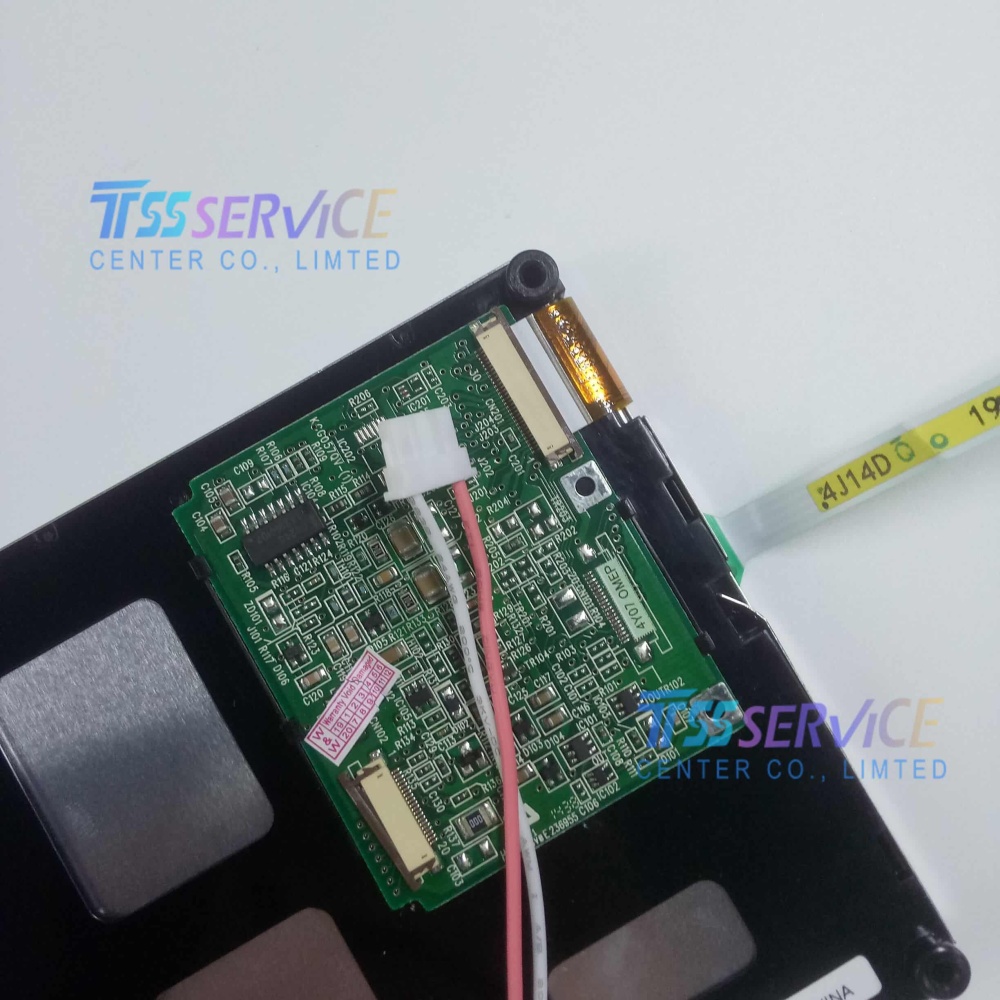

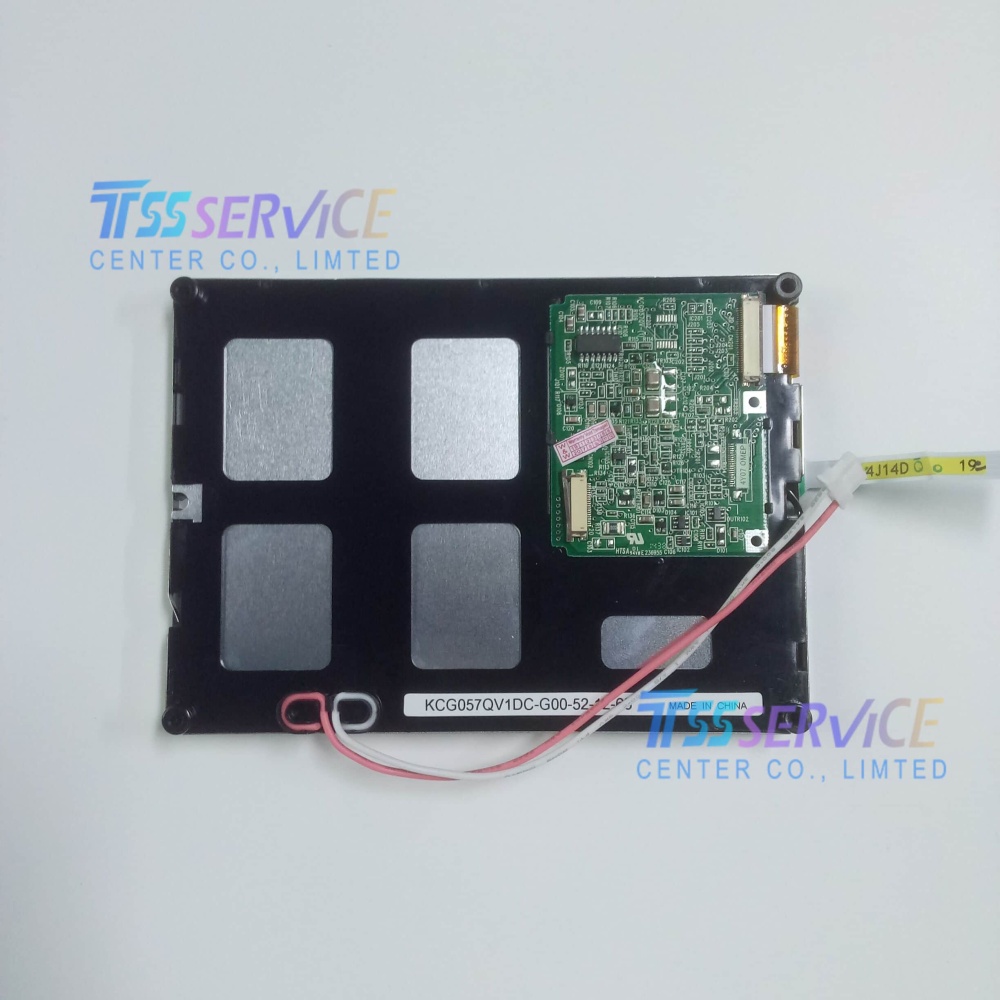

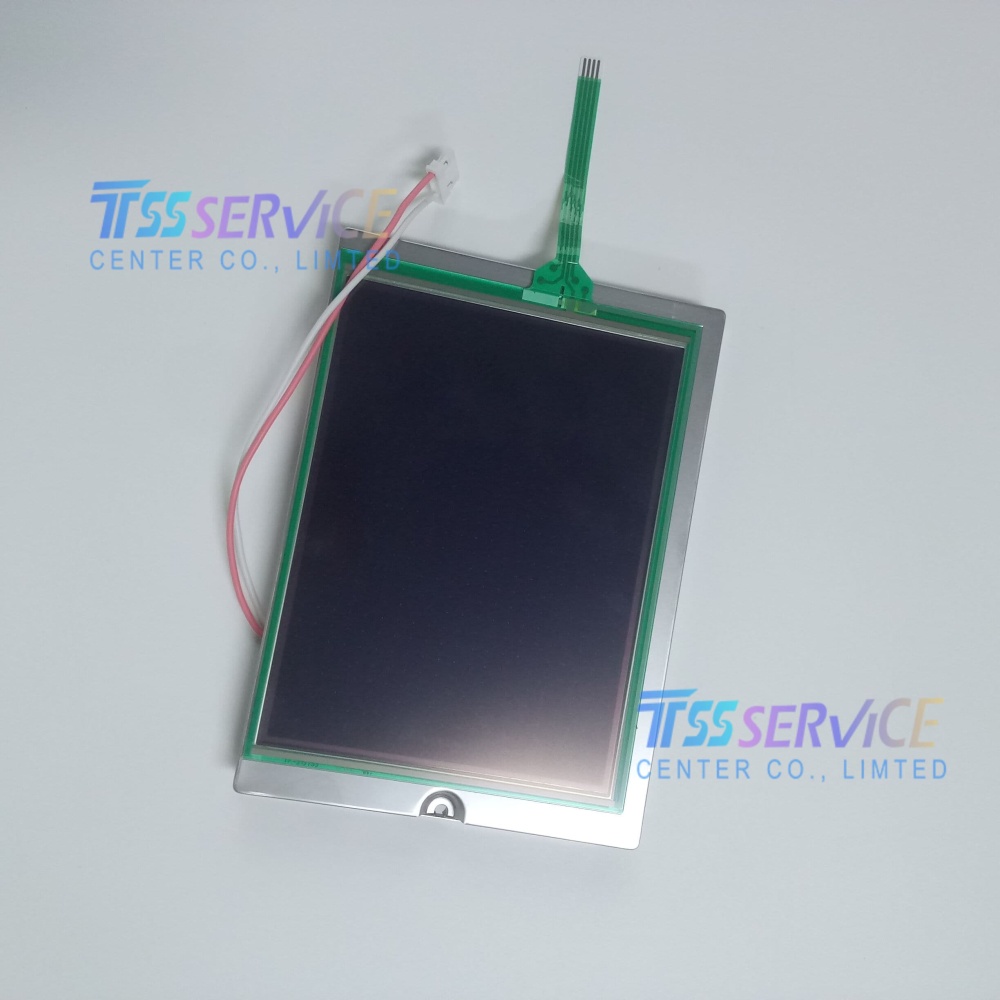

The KCG057QV1DC-G00 is a 5.7-inch CSTN-LCD module manufactured by Kyocera. This model is specifically designed for industrial applications that require reliable performance in standard operating environments . It features a QVGA resolution of 320×240 pixels with an RGB vertical stripe pixel arrangement.
| Brand |
Kyocera |
| Model P/N |
KCG057QV1DC-G00 |
| Diagonal Size |
5.7" |
| Panel Type |
CSTN-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA, 70 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Contrast Ratio |
55:1 (Typ.) (TM) |
| Viewing Angle |
50/50/20/35 (Typ.)(CR≥2) |
| Response Time |
180/170 (Typ.)(Tr/Td) ms |
| Display Mode |
STN, Normally Black, Transmissive |
| Display Colors |
Color |
| Backlight |
CCFL |
| Operating Temp. |
0 ~ 60 °C |
| Storage Temp. |
-20 ~ 60 °C |
Application Scenarios
The KCG057QV1DC-G00 is engineered to excel where standard consumer-grade displays may not provide sufficient reliability . Its design provides good visibility and performance in typical industrial settings, making it suitable for various applications:
-
Industrial Automation: Human-Machine Interface (HMI) panels on factory floors and industrial control systems
-
Specialized Equipment: Control panels for CNC machines, test and measurement equipment, and instrumentation requiring reliable performance in non-climate-controlled environments
-
Outdoor & Commercial Applications: Outdoor ticketing kiosks, control panels in refrigerated warehouses, and other commercial applications where consistent operation across temperature variations is critical .
