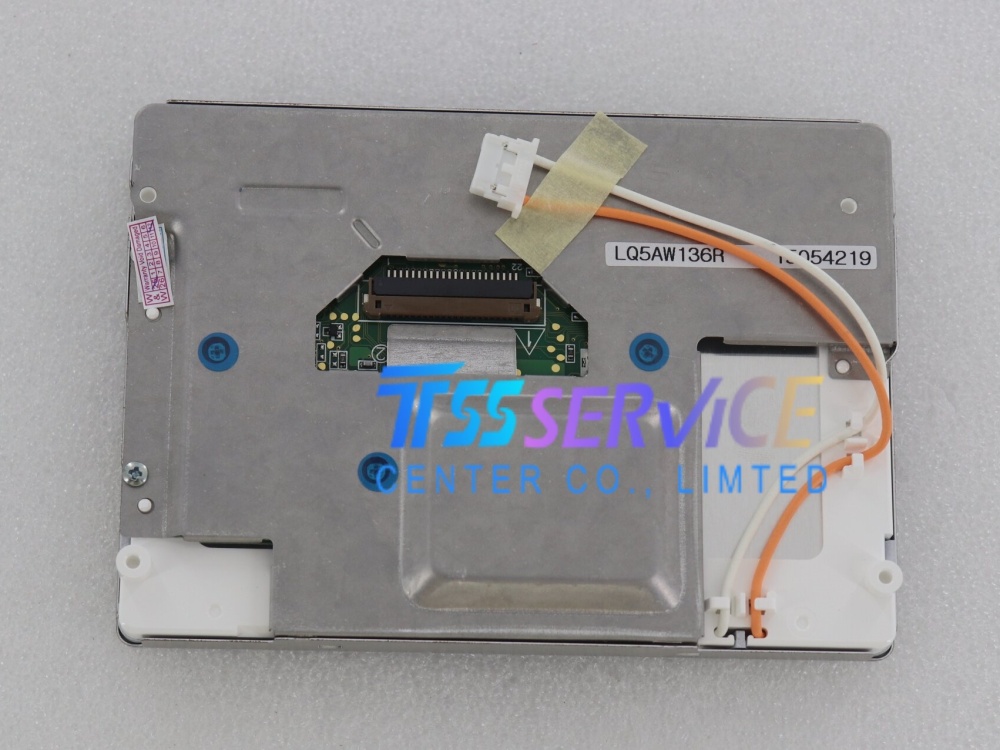

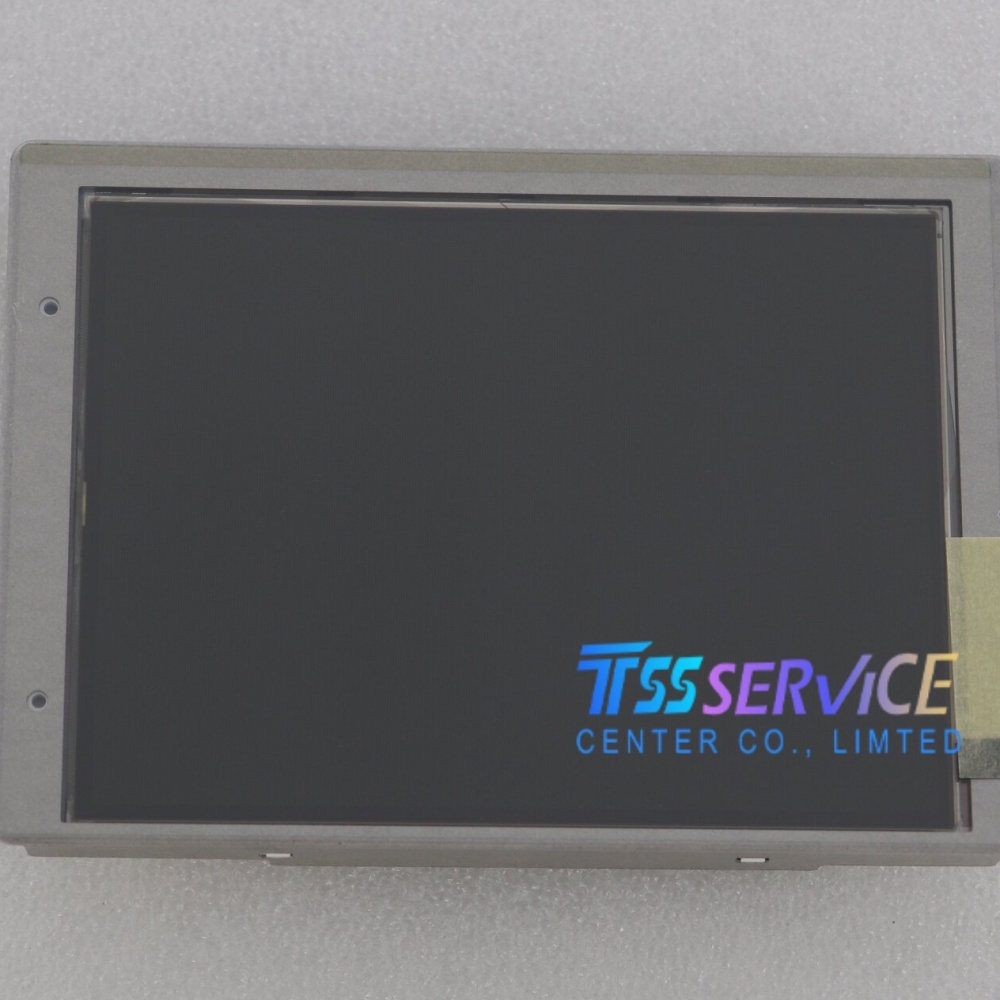

Sharp LQ5AW136R 5.0-inch Automotive TFT-LCD Panel

Name: Sharp LQ5AW136R 5.0-inch Automotive TFT-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ5AW136R
Price: 68 USD
Availability: InStock

SKU: LQ5AW136R

1，Condition: New，Grade A

2，Description: LQ5AW136R 5.0-inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Sharp LQ5AW136R is a 5.0-inch diagonal a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module engineered for exceptional durability in demanding industrial and automotive environments. Featuring 320 × 234 resolution with an RGB vertical stripe pixel arrangement, this display is specifically designed to withstand extreme temperatures and high vibration, making it ideal for off-highway vehicles, construction equipment, and industrial control panels where consumer-grade displays would fail .

Category	Details
Brand	Sharp
Model P/N	LQ5AW136R
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234, 79PPI
Pixel Format	RGB Vertical Stripe
Active Area	102.2(W)×74.8(H) mm
Bezel Opening	109.5(W)×80.8(H) mm
Outline Size	126.8(W)×89.6(H)×16.8(D) mm
Surface	Antiglare, Antireflection
Brightness	320 cd/m² (Typ.)
Contrast Ratio	60 : 1 (Min.) (TM)
Viewing Angle	65/65/40/65 (Typ.)(CR≥5)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	30/50 (Typ.)(Tr/Td)
Display Colors	Full color
Lamp Type	1 pcs CCFL, 10K hours, Without Driver
Touch Screen	Without
Panel Weight	185g (Max.)
Signal Interface	Analog RGB + Composite Video (NTSC/PAL), 22 pins Connector
Input Voltage	8.0 / -5V (Typ.)(VSH/VSL)
Operating Temp.	-30 ~ 85 °C
Storage Temp.	-30 ~ 85 °C
Vibration Level	2.9G (28.4 m/s²)

Typical Applications

Application Area	Use Cases
Off-Highway Vehicles	Excavators, tractors, agricultural machinery HMIs, construction equipment displays
Automotive	In-vehicle infotainment, dashboard displays, rear-seat entertainment, navigation systems
Industrial Control	Factory automation panels, CNC machine interfaces, process controllers
Test & Measurement	Oscilloscopes, signal analyzers, portable field instruments
Medical Equipment	Diagnostic devices, patient monitoring systems (non-life-support)
Embedded Systems	Legacy system replacements, industrial computers
