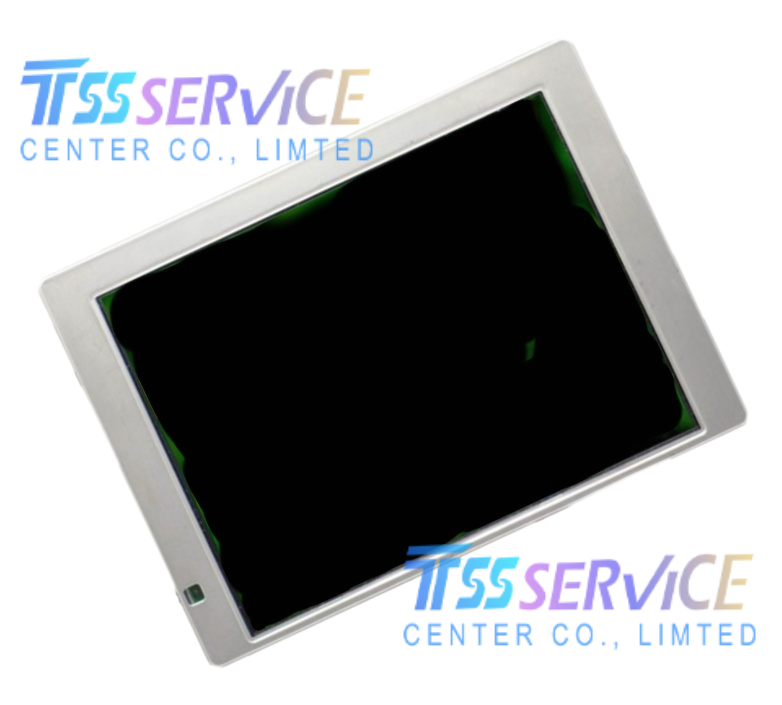

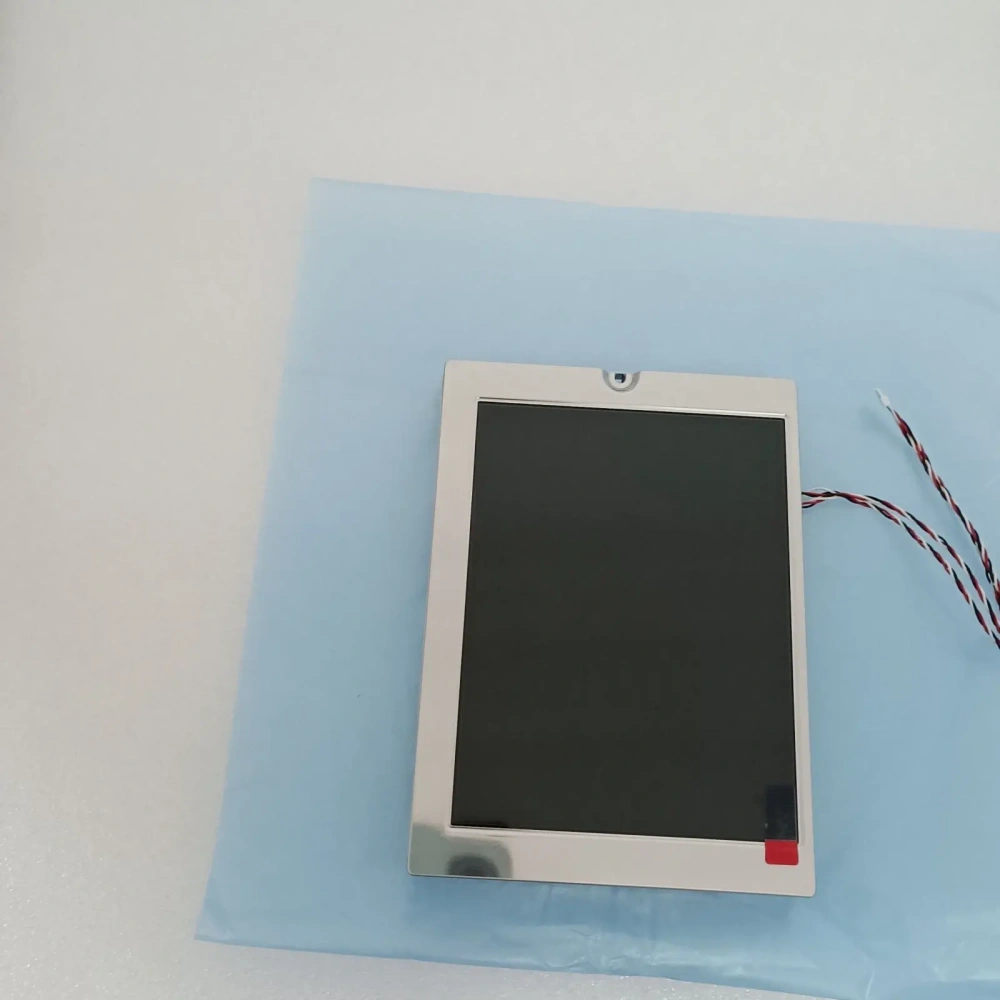

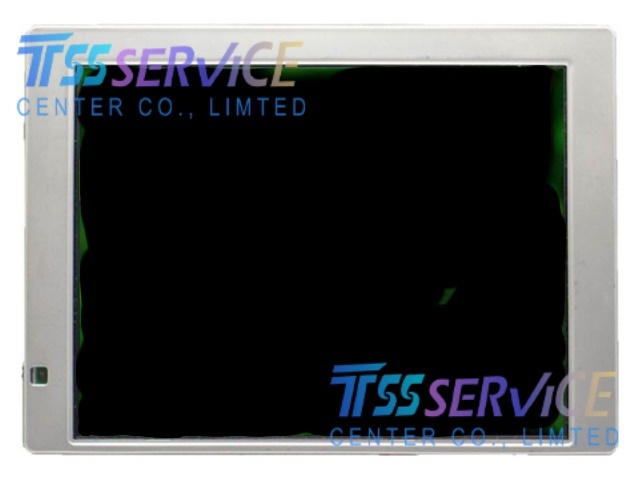

OPTREX T-55265GD057J-LW-AAN 5.7 inch 320×240 LCD Display Panel Module for Industrial

Name: OPTREX T-55265GD057J-LW-AAN 5.7 inch 320×240 LCD Display Panel Module for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: T-55265GD057J-LW-AAN
Price: 120 USD
Availability: InStock

SKU: T-55265GD057J-LW-AAN

Model: T-55265GD057J-LW-AAN
Panel Size: 5.7 inches (diagonal)
Panel Type: a-Si TFT-LCD, LCM (TN Mode, Normally White, Transmissive)
Resolution: 320(RGB)×240 (QVGA), 70 PPI

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

OPTREX T-55265GD057J-LW-AAN 5.7 inch 320×240 LCD Display Panel Module for Industrial

Parameter	Specification
Brand	Kyocera (formerly Optrex)
Model	T-55265GD057J-LW-AAN
Panel Size	5.7 inches (diagonal)
Panel Type	a-Si TFT-LCD, LCM (TN Mode, Normally White, Transmissive)
Resolution	320(RGB)×240 (QVGA), 70 PPI
Active Display Area	115.2 mm (W) × 86.4 mm (H)
Outline Dimensions	144 mm (W) × 104.6 mm (H) × 13.0 mm (D, max)
Pixel Configuration	RGB Vertical Stripe
Pixel Pitch	0.360 mm × 0.360 mm
Brightness	500 cd/m² (Typical)
Contrast Ratio	350:1 (Typical)
Viewing Angle	70°/70°/70°/70° (L/R/U/D, CR≥5)
Response Time	21/10 ms (Typical, Tr/Td)
Color Depth	262K colors (6-bit RGB)
Backlight	WLED (4S3P, without driver), 70,000 hrs lifespan
Interface	33-pin Parallel RGB (1 channel, 6-bit, TTL)
Input Voltage	3.3 V (Typ., Vcc)
Net Weight	≤255 g
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Compliance	RoHS Certified

Typical Applications (English)

Industrial HMI & Control Panels: Factory automation terminals, PLC interfaces, and CNC machinery requiring compact, reliable 5.7-inch displays.
Legacy Medical Devices: Patient monitors, diagnostic equipment, and laboratory instruments needing stable performance in clinical environments.
Outdoor & Industrial Terminals: Bright 500 cd/m² LED backlight ensures readability in moderate sunlight for outdoor kiosks and field devices.
Transportation & Heavy Machinery: In-vehicle displays for construction equipment, agricultural machinery, and public transport dashboards.
Retail & Vending Systems: POS terminals, vending machines, and self-service kiosks with 24/7 operation capability.
Harsh Environment Displays: Wide temperature range (-20°C to +70°C) suits energy, utility, and manufacturing control rooms.
