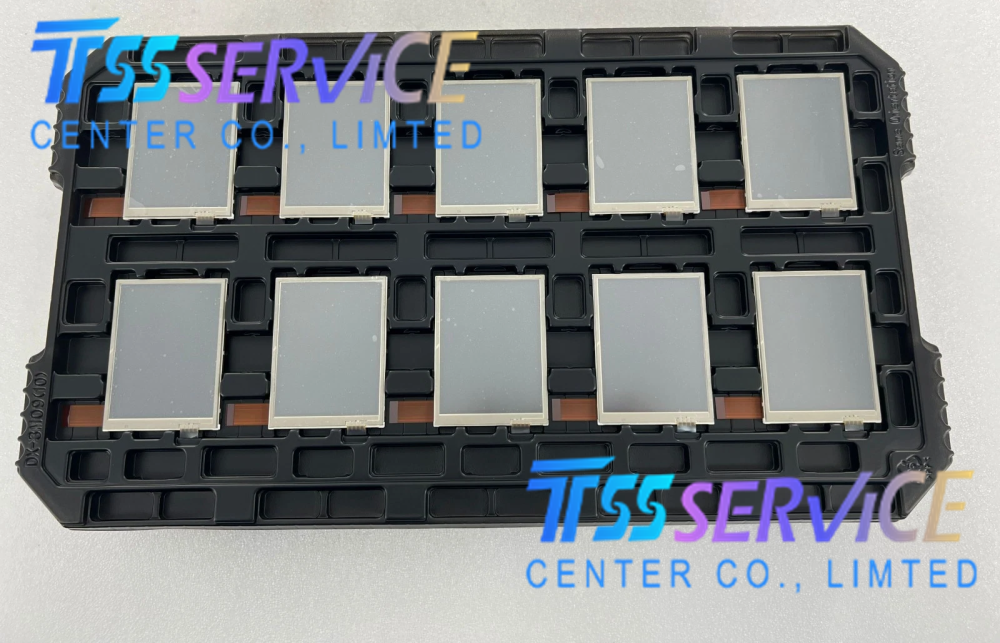

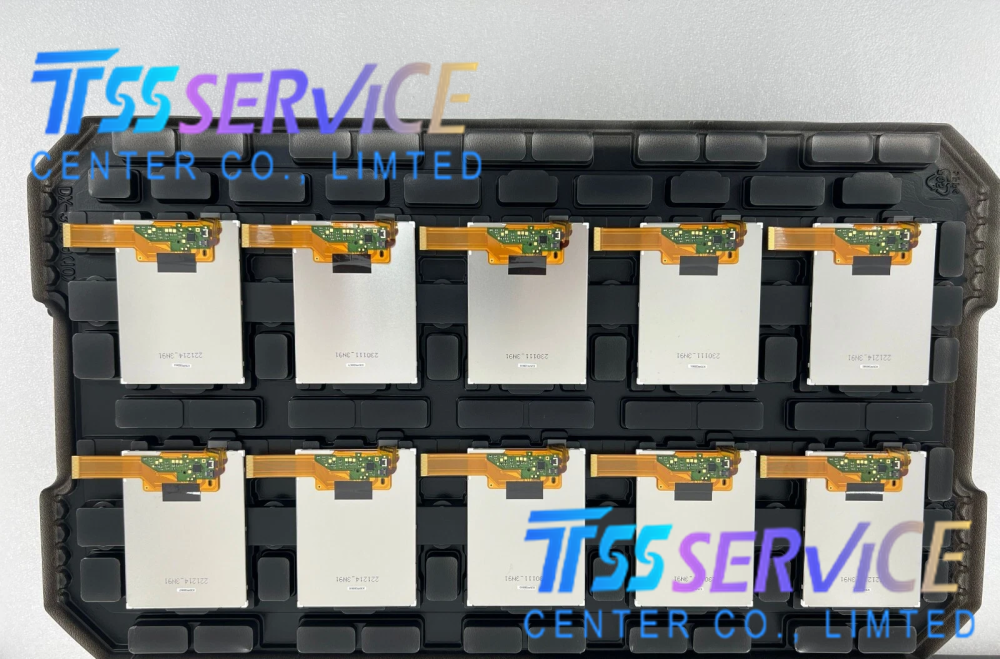

COM35H3P08ULC | Ortustech (Casio) 3.5" VGA Transflective Industrial TFT-LCD Module
COM35H3P08ULC is a 3.5-inch vertical VGA transflective a-Si VA TFT LCD module manufactured by Ortustech (Casio Display). It adopts transflective sunlight-readable technology, 250 cd/m² WLED backlight, single-channel 6-bit parallel RGB 39-pin FPC interface, full symmetrical 80° wide viewing angle, ultra-wide industrial temperature range (-20℃ ~ +70℃), 3H anti-scratch hard coating and low-power design. The transflective polarizer enables clear display under direct outdoor sunlight without extra backlight boost, widely used for industrial handheld terminals, portable medical diagnostic devices, field test meters, logistics barcode scanners and outdoor portable monitoring equipment.
| Parameter Item |
Specification Details |
| Full Part Number |
COM35H3P08ULC |
| Manufacturer |
Ortustech (Casio Display) |
| Diagonal Size |
3.5 inch, vertical portrait, 3:4 aspect ratio |
| Native Resolution |
480(H) × 640(V) pixels (Vertical VGA, 228 PPI) |
| Display Technology |
a-Si TFT-LCD, VA mode, Normally Black, Transflective (sunlight readable) |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.111 mm (H) × 0.111 mm (V) |
| Active Area (AA) |
53.28 mm (W) × 71.04 mm (H) |
| View Area |
57.44 mm (W) × 75.32 mm (H) |
| Overall Outline Dimension |
63.5 mm (W) × 85.0 mm (H) × 4.53 mm (Thickness) |
| Typical Brightness |
250 cd/m² (transmissive mode) |
| Typical Contrast Ratio |
600:1 (transmissive), 5.5:1 (reflective) |
| Viewing Angle (L/R/U/D, CR≥10 Min.) |
80° / 80° / 80° / 80°, full symmetrical wide angle |
| Response Time (Tr / Td Max.) |
40 ms / 60 ms |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
Edge-lit WLED, service life ≥ 50,000 hours, no built-in driver |
| Signal Interface |
Single-channel parallel RGB (6-bit), 39-pin 2-in-1 FPC connector |
| Logic Supply Voltage |
3.3 VDC (Typical) |
| Refresh Rate |
60 Hz standard |
| Operating Temperature |
-20°C ~ +70°C |
| Storage & Transport Temp |
-30°C ~ +80°C |
| Touch Function |
Without integrated touch screen (resistive/capacitive touch overlay customizable) |
| Surface Treatment |
Clear hard coating, 3H scratch-resistant anti-abrasion layer |
| Net Weight |
Approx. 30.8 g ultra-lightweight |
| Compliance Standard |
RoHS lead-free compliant |
| Production Status |
Mass production industrial portable display, stable stock for project & maintenance replacement |
