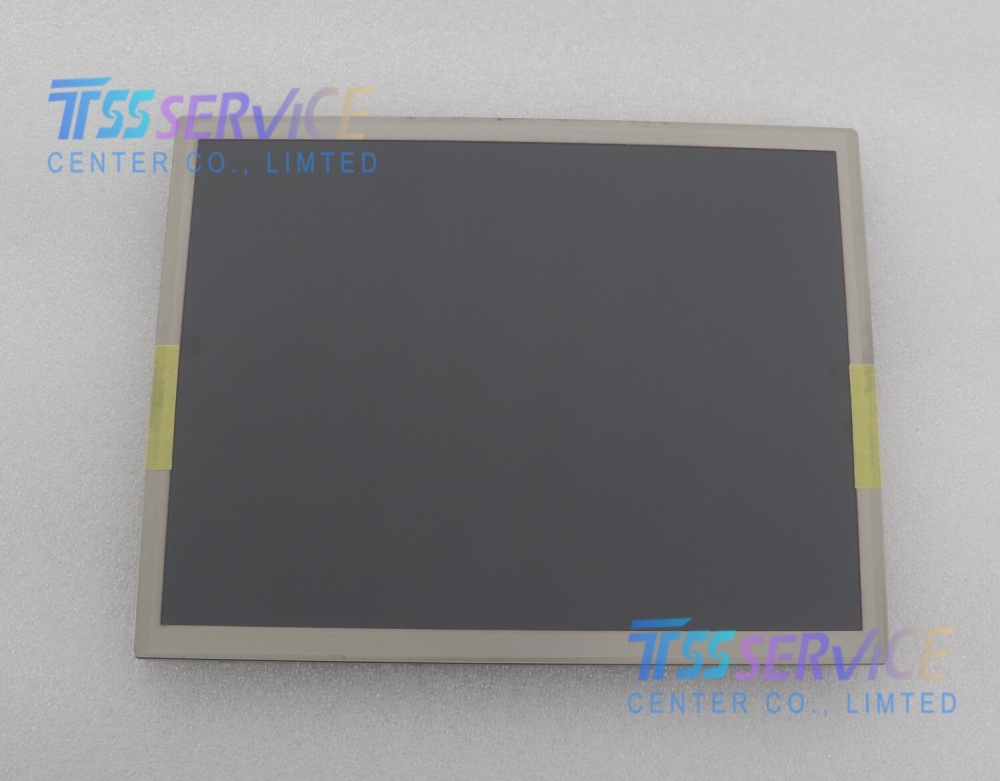

TIANMA NEW 10.4 inch LCD Display Panel P1040VGF1MB00 for Industrial
| Parameter |
Value |
| Manufacturer |
Tianma (TIANMA) |
| Screen Diagonal |
10.4 inches (26.416 cm) |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Resolution |
640 x 480 (VGA) |
| Aspect Ratio |
4:3 |
| Pixel Density |
76 PPI |
| Active Area |
211.2mm (W) x 158.4mm (H) |
| Outline Dimensions |
243.0mm (W) x 185.1mm (H) x 11.47mm (D) |
| Brightness |
450 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Viewing Angle |
88° (Typ.)(CR≥10) (L/R/U/D) - Full View |
| Response Time |
25 ms (Typ.)(Tr+Td) |
| Display Colors |
262K (6-bit), 50% NTSC |
| Backlight |
WLED (6S3P), 70,000 hours lifespan, no driver included |
| Interface |
TTL / Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage |
3.3/5.0V (Typ.)(VCC) |
| Operating Temperature |
-30 ~ +80 °C |
| Storage Temperature |
-35 ~ +85 °C |
| Touch Panel |
Optional |
Due to its industrial-grade durability (-30°C to 80°C), high brightness (450 nits), and VGA resolution, the P1040VGF1MB00 is ideal for
-
Industrial Control & HMI: Factory automation panels, CNC machine displays, and process control interfaces.
-
Medical Equipment: Patient monitoring systems, diagnostic devices, and medical cart terminals.
-
Outdoor Terminals: Ticketing kiosks, EV charging stations, and marine electronics.
-
Test & Measurement: Portable oscilloscopes, spectrum analyzers, and lab equipment requiring stable display performance.
-
Infotainment: Elevator panels and commercial audio-visual control systems.
