Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

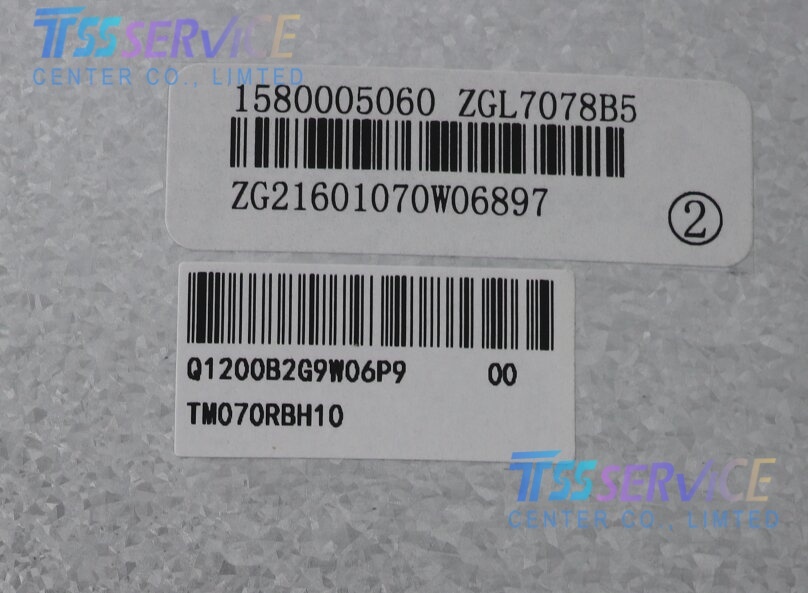

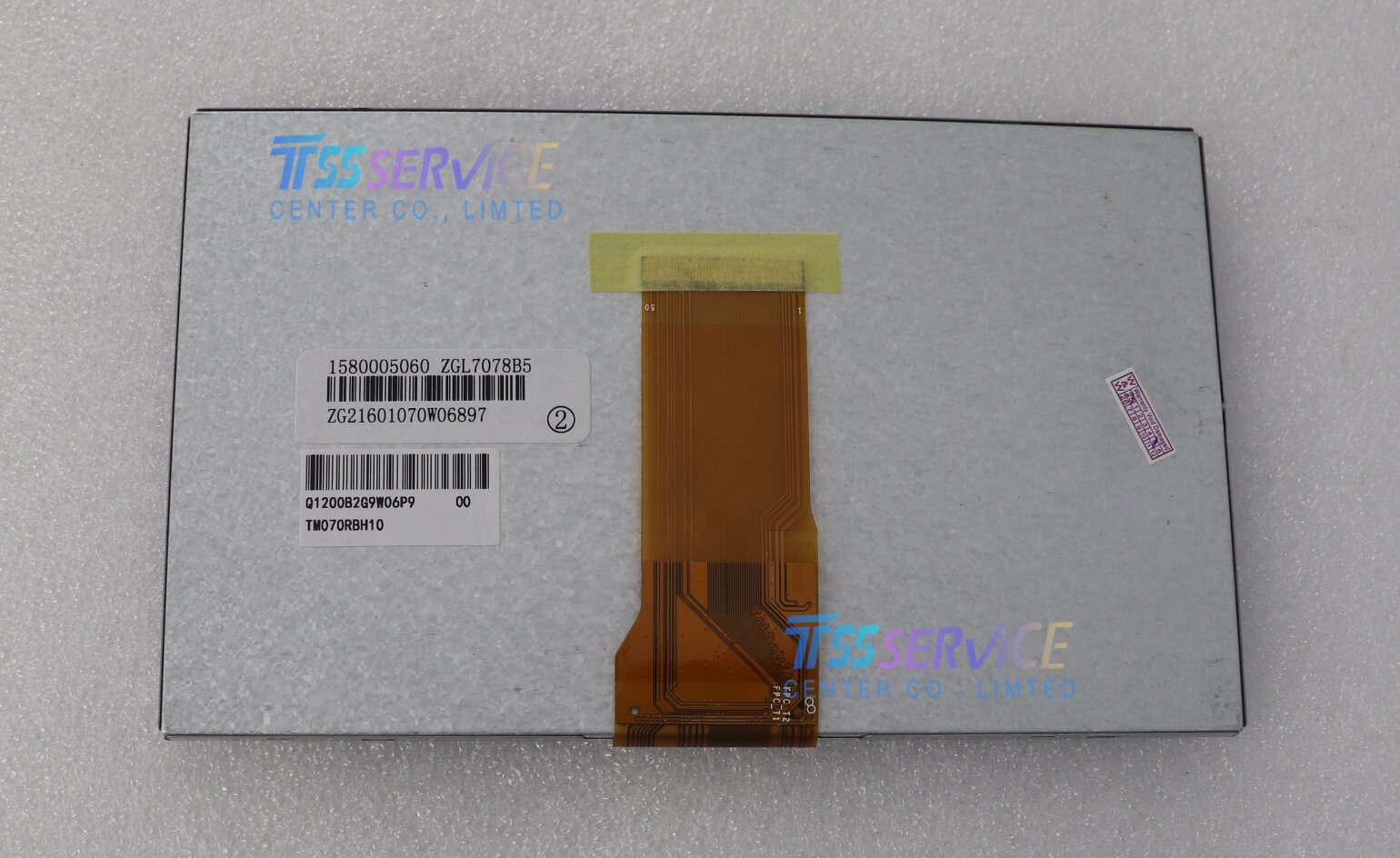

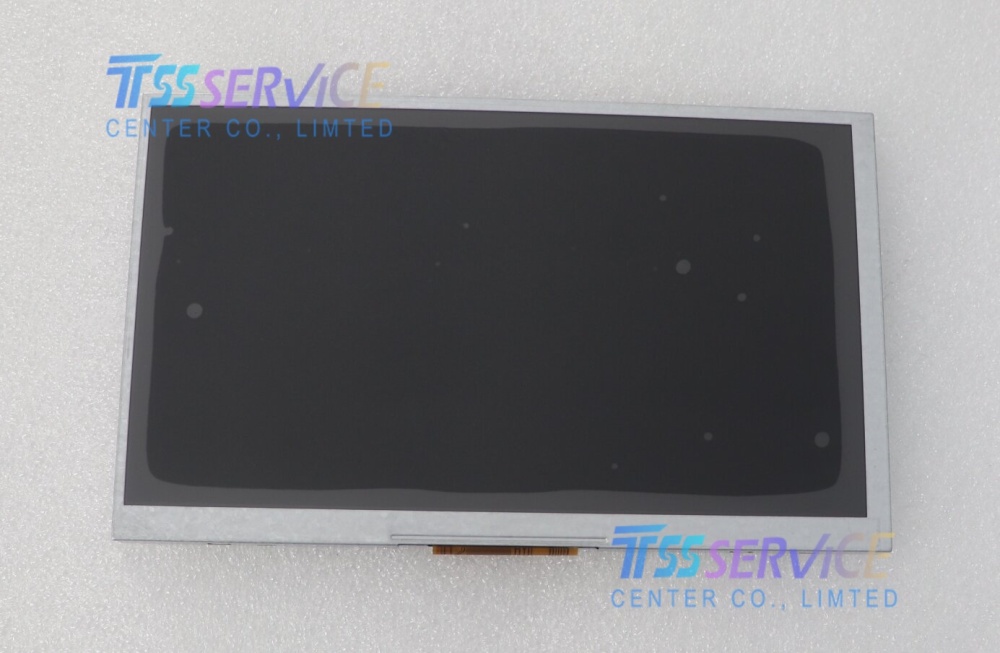

The TM070RBH10-00 is a 7.0-inch a-Si TFT-LCD module (LCM) from TIANMA, featuring WVGA resolution (800×480) and a 4-wire resistive touchscreen. It is designed for industrial control, automotive infotainment, and portable device applications, with a focus on reliable performance in moderate-temperature environments.
| Brand | TIANMA |
| Model P/N | TM070RBH10-00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | - |
| Outline Size | 164.9(W)×100(H) ×7.1(D) mm |
| Surface | Antiglare |
| Brightness | 280 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K/16.2M 49% NTSC |
| Lamp Type | 3S8P WLED, 20K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | 4-wire Resistive Touch |
| Weight | TBD |
| Application | Industrial control devices, vehicle-mounted devices, notebook computers, etc. |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pins FPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
