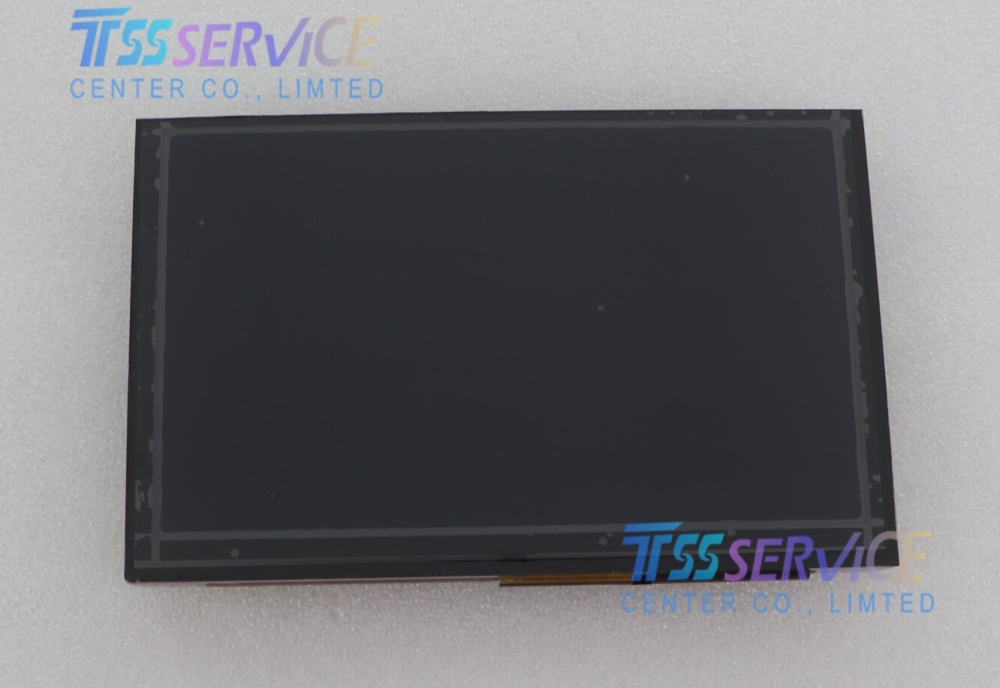

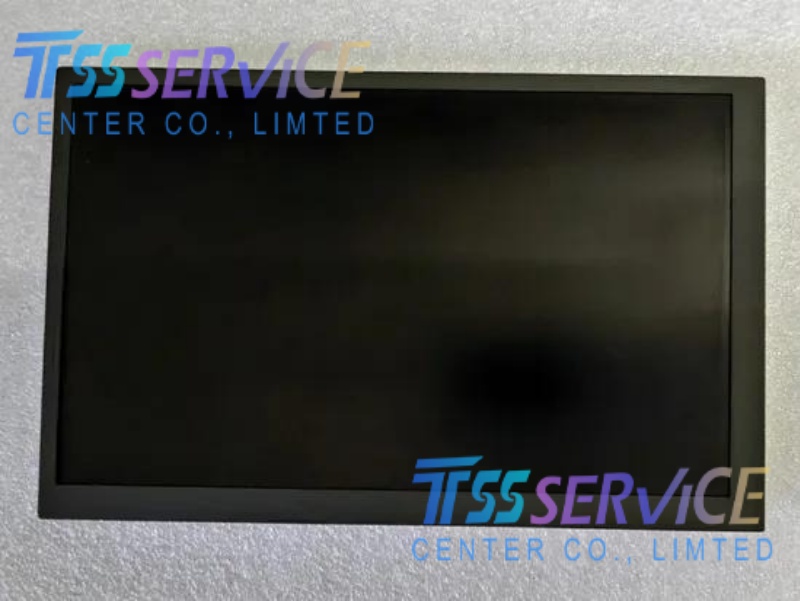

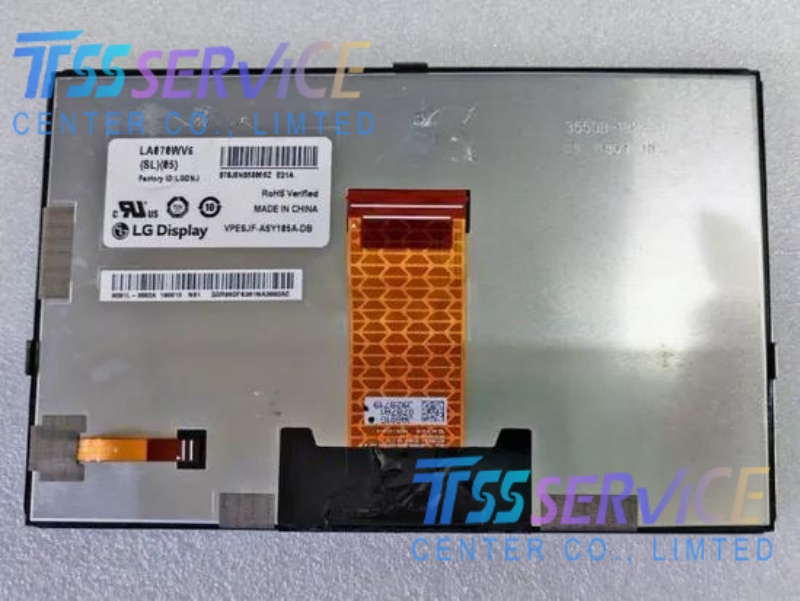

LA070WV6-SL05 LG Display 7 Inch 800×480 LCD Panel Screen for Industrial

Name: LA070WV6-SL05 LG Display 7 Inch 800×480 LCD Panel Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LA070WV6-SL05
Price: 99 USD
Availability: InStock

SKU: LA070WV6-SL05

Model P/N: LA070WV6-SL05
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA 133PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$102.00~~ $99.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LA070WV6-SL05 LG Display 7 Inch 800×480 LCD Panel Screen for Industrial

Parameter	Details
Part Number	LA070WV6-SL05
Manufacturer	LG Display
Panel Type	a-Si TFT-LCD, IPS, Normally Black, Transmissive
Diagonal Size	7.0 inch
Resolution	800 × 480 (WVGA), 133 PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4 × 91.44 mm
Outline Dimensions	166.6 × 105.8 × 8.6 mm
Brightness	1500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89° (U/D/L/R) @ CR≥10:1
Response Time	25 ms (Typ.) (Tr+Td)
Refresh Rate	60 Hz
Display Colors	16.7M (8-bit), 60% NTSC
Backlight	WLED, 6S3P, 10,000 hrs, No Driver
Interface	LVDS (1 ch, 8-bit), 50-pin FPC
Supply Voltage	DVDD=3.3V, AVDD=13.0V, VGH=18.5V, VGL=-7.5V
Weight	170 g (Typ.), 175 g (Max.)
Surface	Anti-glare (Matte, Haze 25%), Hard coating (3H)
Operating Temp.	-40 ~ 85 °C
Storage Temp.	-40 ~ 95 °C
RoHS	Compliant
