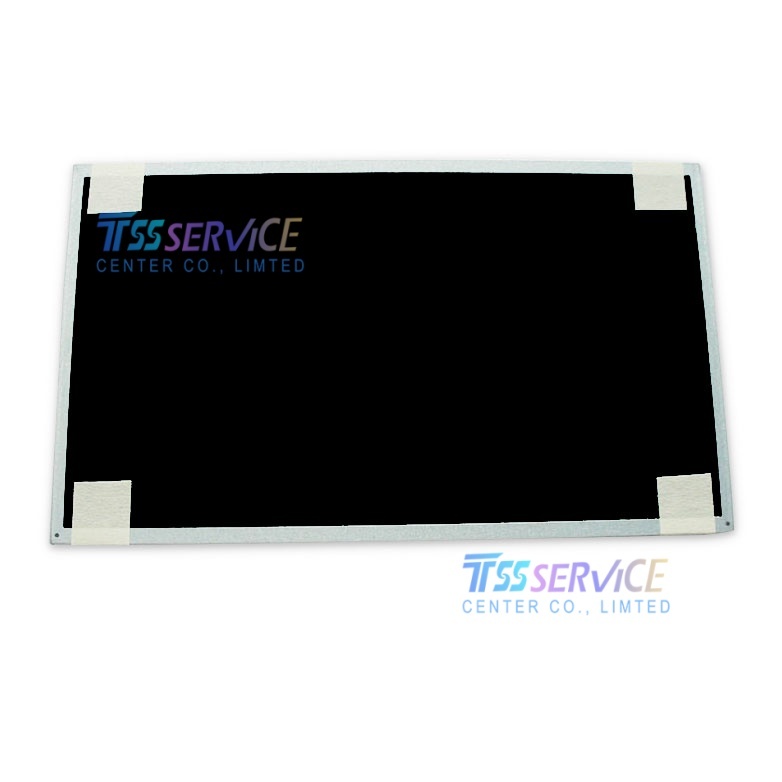

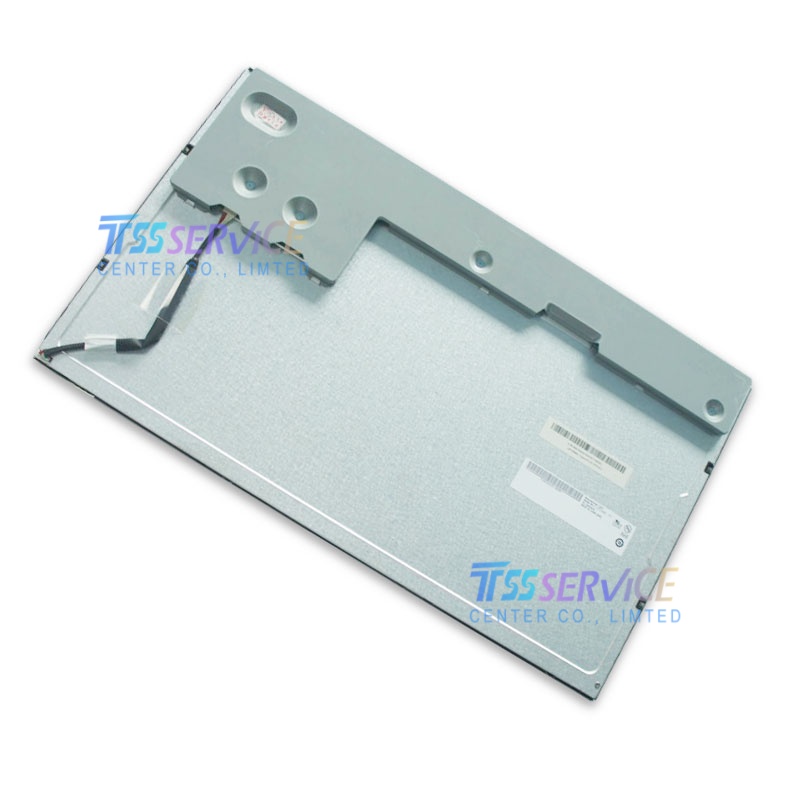

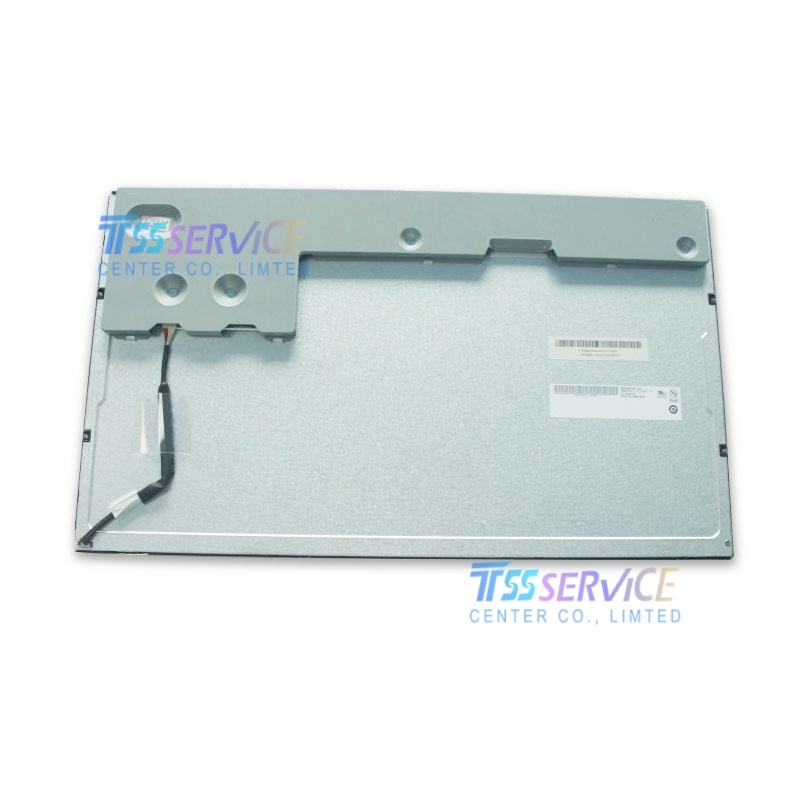

The AUO G185XW01 V201 (also known as G185XW01 V.201) is a 18.5-inch a-Si TFT-LCD display module from AU Optronics (AUO), engineered to deliver high-brightness, high-contrast display performance for demanding industrial and commercial applications . Designed as a reliable solution for professional environments, this panel combines robust construction with excellent optical characteristics, making it a trusted choice for industrial automation, human-machine interfaces (HMIs), medical equipment, gaming terminals, and information kiosks .
This module features a modern LCD architecture with integrated long-life WLED backlighting and an anti-glare surface treatment, providing clear and vibrant visual output with enhanced durability for 24/7 operation.
| Parameter |
Value |
| Brand |
AUO |
| Model P/N |
G185XW01 V201 |
| Diagonal Size |
18.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1366(RGB)×768, WXGA 84PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
409.8(W)×230.4(H) mm |
| Bezel Opening |
413.4(W)×234.0(H) mm |
| Outline Size |
430.4(W)×254.7(H)×11.1(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
450 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Response Time |
3.5/1.5 (Typ.)(Tr/Td) |
| Display Colors |
16.7M 70% NTSC |
| Lamp Type |
WLED, 50K hours, With LED Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
1.44Kgs (Max.) |
| Signal Interface |
LVDS (1 ch, 8-bit), 30 pins Connector |
| Input Voltage |
5.0V (Typ.) |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 60 °C |
Applications
The AUO G185XW01 V201 is ideally suited for applications that require a bright, reliable, and wide-format display with stable performance:
-
Industrial Automation: HMIs, control panels, and factory floor equipment requiring clear visibility in well-lit environments
-
Gaming and Entertainment: Slot machines, gaming terminals, and amusement equipment requiring vibrant colors and high brightness
-
Medical Instrumentation: Patient monitors and diagnostic devices needing high reliability and bright displays
-
Commercial Information Systems: Kiosks, information terminals, point-of-sale (POS) systems, and ticketing machines
-
Test and Measurement Equipment: For displaying waveforms and data in laboratory and field applications -
-
Transportation Systems: In-vehicle displays and control systems requiring robust performance.
