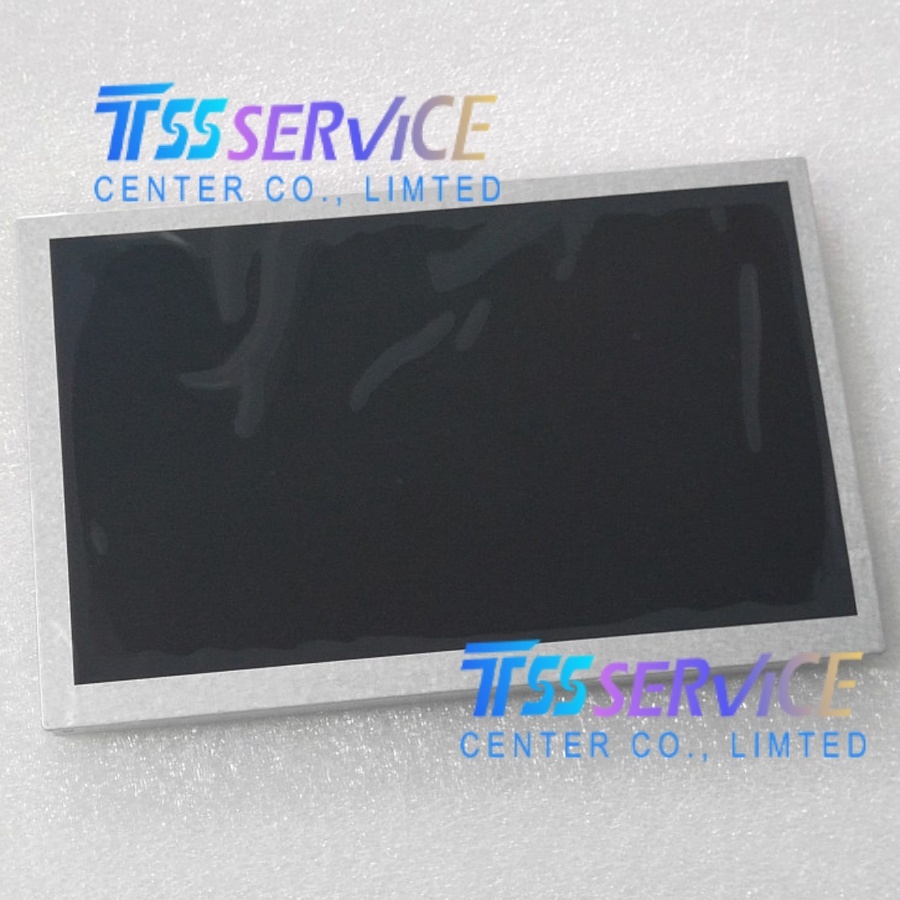

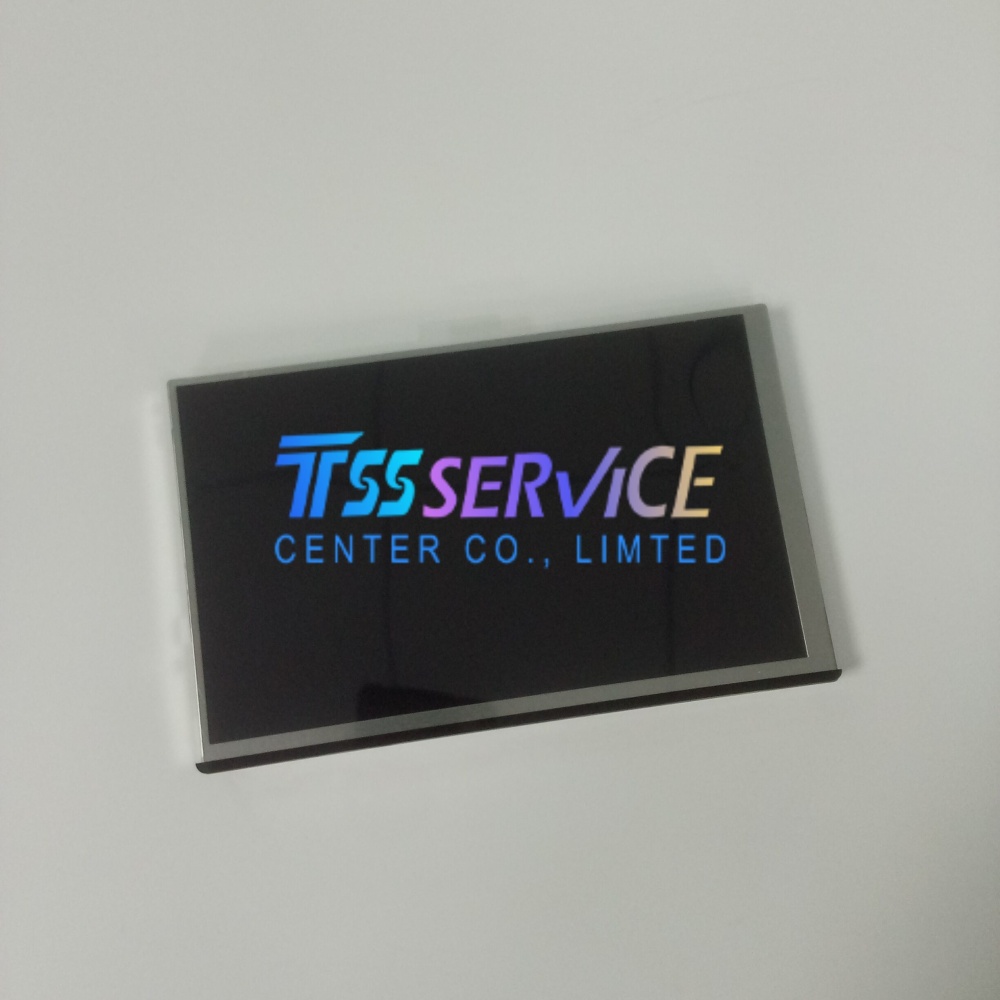

KOE TX31D208VM0BAA 12.1 inch 1280×800 LCD Display Screen For Industrial
| Item |
Specification |
Unit |
| Model |
TX31D208VM0BAA |
– |
| Brand |
KOE (Japan) / JDI |
– |
| Display Type |
a-Si TFT‑LCD, LCM (IPS, Normally White) |
– |
| Diagonal Size |
12.1 |
inch |
| Resolution |
1280 (RGB) × 800 (WXGA), 124 PPI |
– |
| Pixel Arrangement |
RGB Vertical Stripe |
– |
| Active Area (W×H) |
261.12 × 163.2 |
mm |
| Outline Dimension |
275.0 × 185.0 × ～10.0 |
mm |
| Brightness |
1500 (Typ.) |
cd/m² |
| Contrast Ratio |
1000:1 (Typ.) |
– |
| Viewing Angle (CR≥10) |
88/88/88/88 (L/R/U/D) |
° |
| Display Colors |
16.7M (24‑bit RGB) |
– |
| Backlight |
WLED, 70,000 hrs (25°C) |
– |
| Interface |

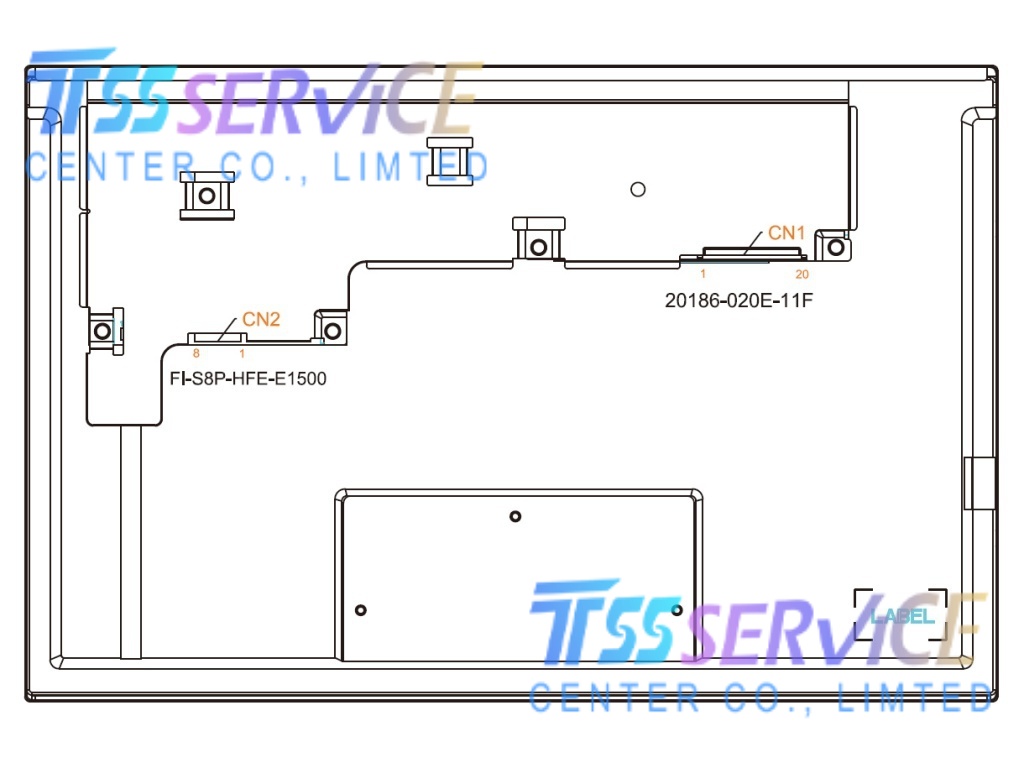

LVDS (1ch 6/8‑bit), 20‑pin connector |
– |
| Supply Voltage |
3.3 (Typ.) |
V |
| Operating Temperature |
‑40 ~ +80 |
°C |
| Storage Temperature |
‑40 ~ +80 |
°C |
| Vibration Resistance |
5G (industrial grade) |
– |
| Surface Treatment |
AG (Anti‑Glare) + Hard Coating (3H) |
– |
| Weight |
Approx. 450 |
g |
| Compliance |
RoHS, CE |
– |
Typical Applications（English）
- Outdoor & Sunlight‑Readable Displays: Construction machinery, agricultural equipment, outdoor kiosks, parking guidance systems (1500nit direct sunlight viewable)
- Industrial HMI & Control Rooms: CNC machine tools, factory automation panels, test & measurement instruments (wide temp −40~+80°C + 5G vibration)
- Marine & Heavy‑Duty Vehicles: Ship navigation displays, railway/metro dashboards, heavy truck instrumentation (high reliability + long backlight life)
- Military & Defense: Field portable devices, vehicle‑mounted terminals, ruggedized displays (extreme temp + shock resistance)
- Medical & Lab Equipment: High‑end diagnostic devices, surgical monitors (stable performance + excellent visibility)
