| Parameter | Value |
|---|---|
| Manufacturer | CASIO |
| Model No. | COM35T3830XLC |
| Screen Size | 3.5 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Number of Dots | 320(RGB)×240, QVGA, 4:3 |
| Pixel Format | RGB Vertical Stripe |

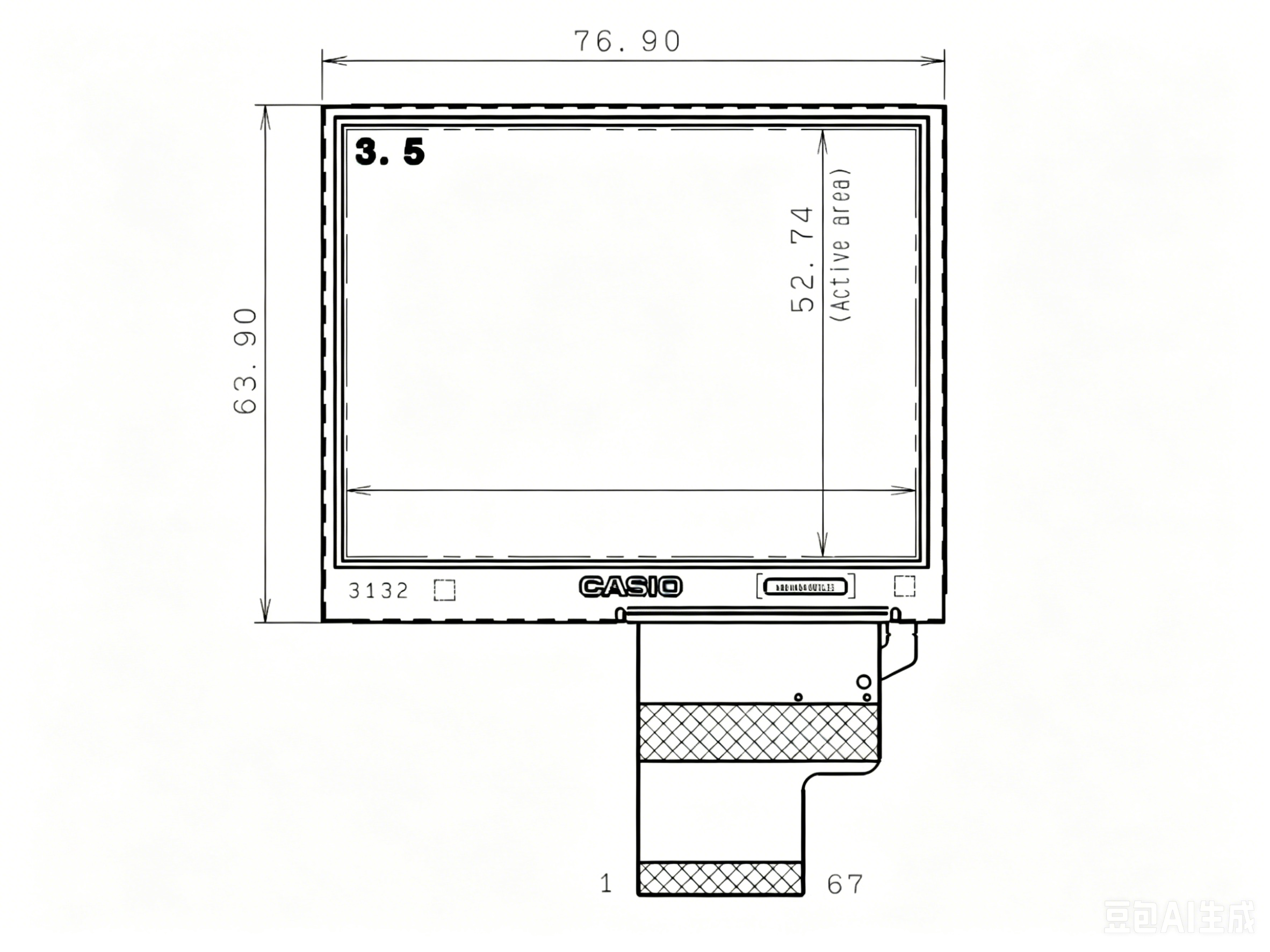

| Active Area | 70.32×52.74 mm (H×V) |
| Outline Area | 76.9×63.9×3.38 mm (H×V×D) |
| Weight | 32.0g |
| Surface Feature | Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response Time | 40/60 (Max.)(Tr/Td) ms |
| Display Type | TN, Normally White, Transmissive |
| Display Colors | 262K/16.7M |
| Used For | 5S2P WLED, 70K hrs, No Driver |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6/8-bit), FPC 67 pins |
| Voltage Supply | 3.3V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
1/1
COM35T3830XLC 3.5inch Lcd Display Panel for CASIO
SKU: COM35T3830XLC
1，Condition: New，Grade A
2，Description: COM35T3830XLC 3.5inch LCD Display Panel
3，Warranty: 90 Days
4，Lead Time: 1-3 Working days
5，Shipping: DHL ,FedEx, EMS , SF express or by air.
6，Packaging: Bubble pad+Paper box
7，Note: All LCD display panels will be full tested before shipping.
(0 Reviews)
0 Sold
1/1
