The Ortustech COM35H3P70ULC (also known under Toppan Inc.) is a 3.5-inch diagonal a-Si TFT-LCD module featuring innovative Blanview-2 VA (Vertical Alignment) technology. Designed as a transflective display, it combines transmissive and reflective modes to offer exceptional sunlight readability while maintaining low power consumption. This makes it an ideal choice for rugged industrial, outdoor, and handheld applications where visibility under bright ambient light is critical.
| Parameter |
Value |
| Mfr. |
Ortustech |
| Model Name |
COM35H3P70ULC |
| Display Size |
3.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
480(RGB)×640, VGA, 3:4 |
| Dot Layout |
RGB Vertical Stripe |
| Display Area |
53.28(W)×71.04(H) mm |
| Panel Weight |
27.7g (Typ.) |

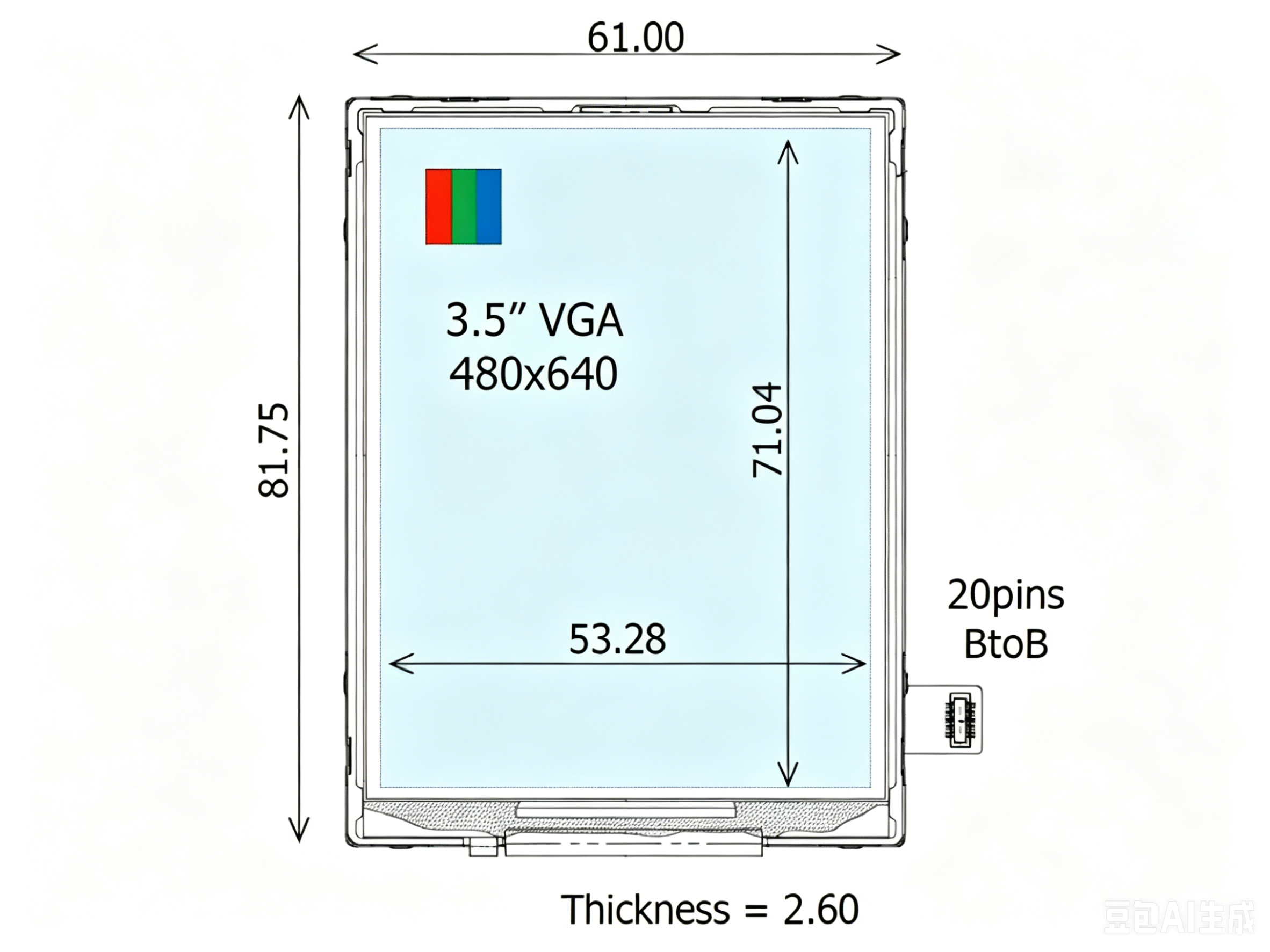

| Outline Size |
61(W)×81.75(H)×3.96(D) mm |
| Surface |
Hard coating (2H) |
| Brightness |
900 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Display Mode |
VA, Normally Black, Transflective |
| View Direction |
Symmetry |
| Response Time |
40/60 (Max.)(Tr/Td) mm |
| Display Colors |
16.7M, 50% NTSC |
| Touch Screen |
Without |
| Light Source |
6S1P WLED, 10K hrs, Without Driver |
| Frequency |
60Hz |
| Application |
(blank) |
| Interface |
MIPI (2 data lanes), 20 pins Connector |
| Input Voltage |
1.8/2.8V (Typ.)(VCCIO/VDD) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Typical Applications
The combination of sunlight readability, durability, and portrait orientation makes the COM35H3P70ULC suitable for a wide range of professional applications :
