The COM70T7M18ZTC is a 7.0-inch diagonal a-Si TFT-LCD module originally manufactured by CASIO and now under the Ortustech brand. It features a transmissive TN (Twisted Nematic) display with a normally white mode. This panel is designed for industrial applications requiring a balance of good brightness, wide viewing angles, and an integrated 4-wire resistive touch panel.
| Parameter |
Value |
| Mfr |
Ortustech |
| Model Name |
COM70T7M18ZTC |
| Display Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×480, 15:9, WVGA |
| Pixel Format |
RGB Vertical Stripe |

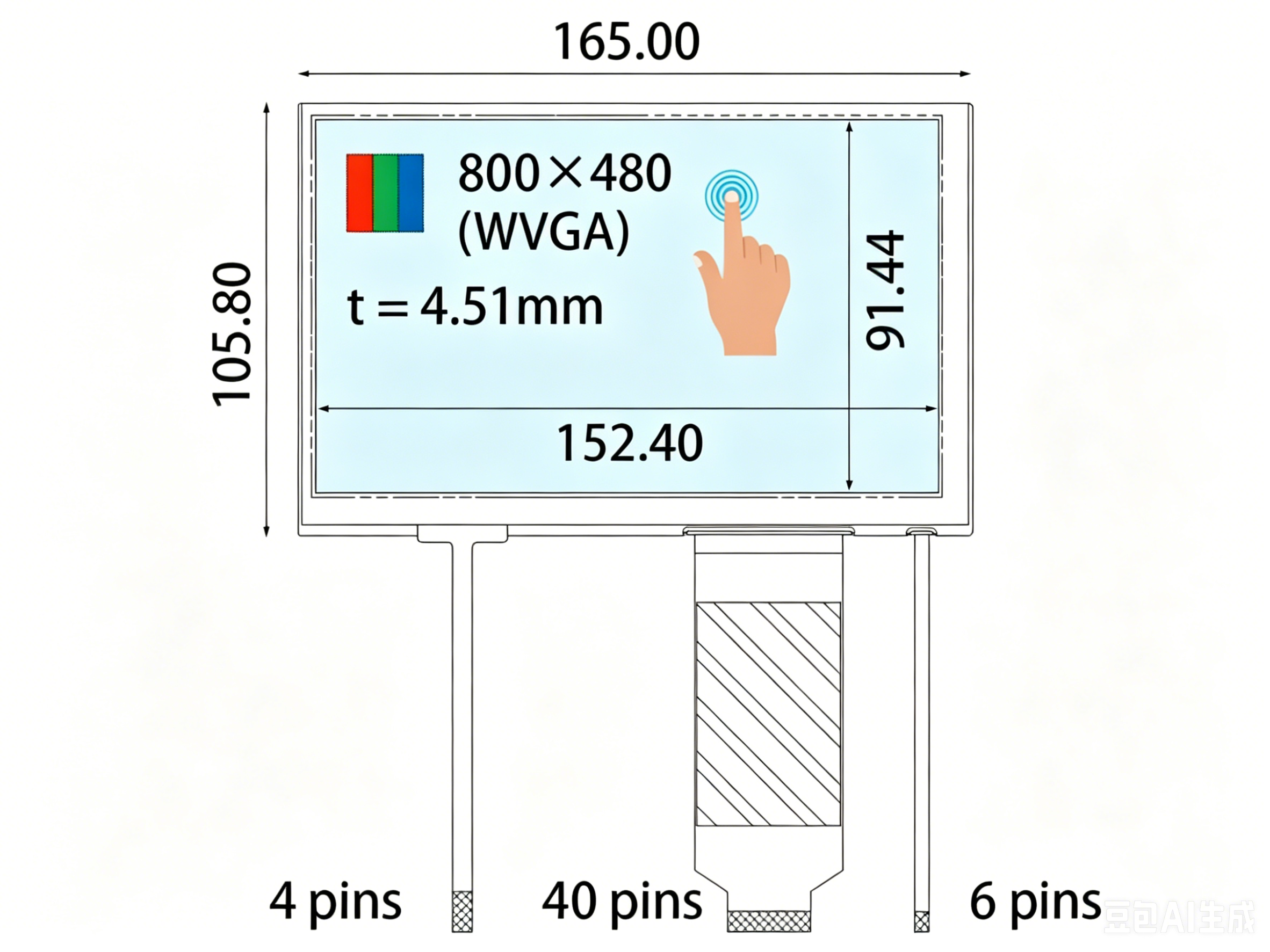

| Display Area |
152.4(W)×91.44(H) mm |
| Panel Weight |
170g |
| Outline Size |
165(W)×105.8(H)×4.71(D) mm |
| Surface |
Hard coating (3H) |
| Brightness |
430 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/80 (Typ.) (CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| View Direction |
- |
| Response Time |
40/60 (Max.) (Tr/Td) ms |
| Display Colors |
262K |
| Application |
4-wire Resistive Touch |
| Frequency |
60Hz |
| Touch Screen |
4-wire Resistive Touch |
| Light Source |
8S3P WLED, 20K hrs, Without Driver |
| Interface |
Parallel RGB (1 ch, 6-bit), 40 pins FPC |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Applications
The COM70T7M18ZTC is ideal for a wide range of industrial and commercial applications:
-
Industrial Human-Machine Interfaces (HMIs)
Control panels for factory automation, process monitoring, and machinery control systems.
-
Medical Equipment
Patient monitoring displays, diagnostic equipment, and portable medical carts.
-
Test & Measurement Instruments
Bench-top and portable test equipment requiring clear alphanumeric and graphical display.
-
Point-of-Information (POI) Kiosks
Indoor information terminals, ticketing machines, and interactive directories.
-
Navigation & Marine Systems
GPS devices, chartplotters, fish finders, and marine electronics.
-
Automotive Infotainment
Rear-seat entertainment displays and vehicle information systems
