The COM57T5M71ZSC is a 5.7-inch a-Si TFT-LCD module manufactured by Ortustech. Designed for industrial and embedded applications, this panel delivers reliable performance with a compact form factor and low power consumption.
| Parameter |
Value |
| Mfr. |
Ortustech |
| Model Name |
COM57T5M71ZSC |
| Display Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320×240, 4:3, QVGA |
| Pixel Format |
Rectangle |
| Display Area |
115.2(W)×86.4(H) mm |
| Panel Weight |
114g (Typ.) |

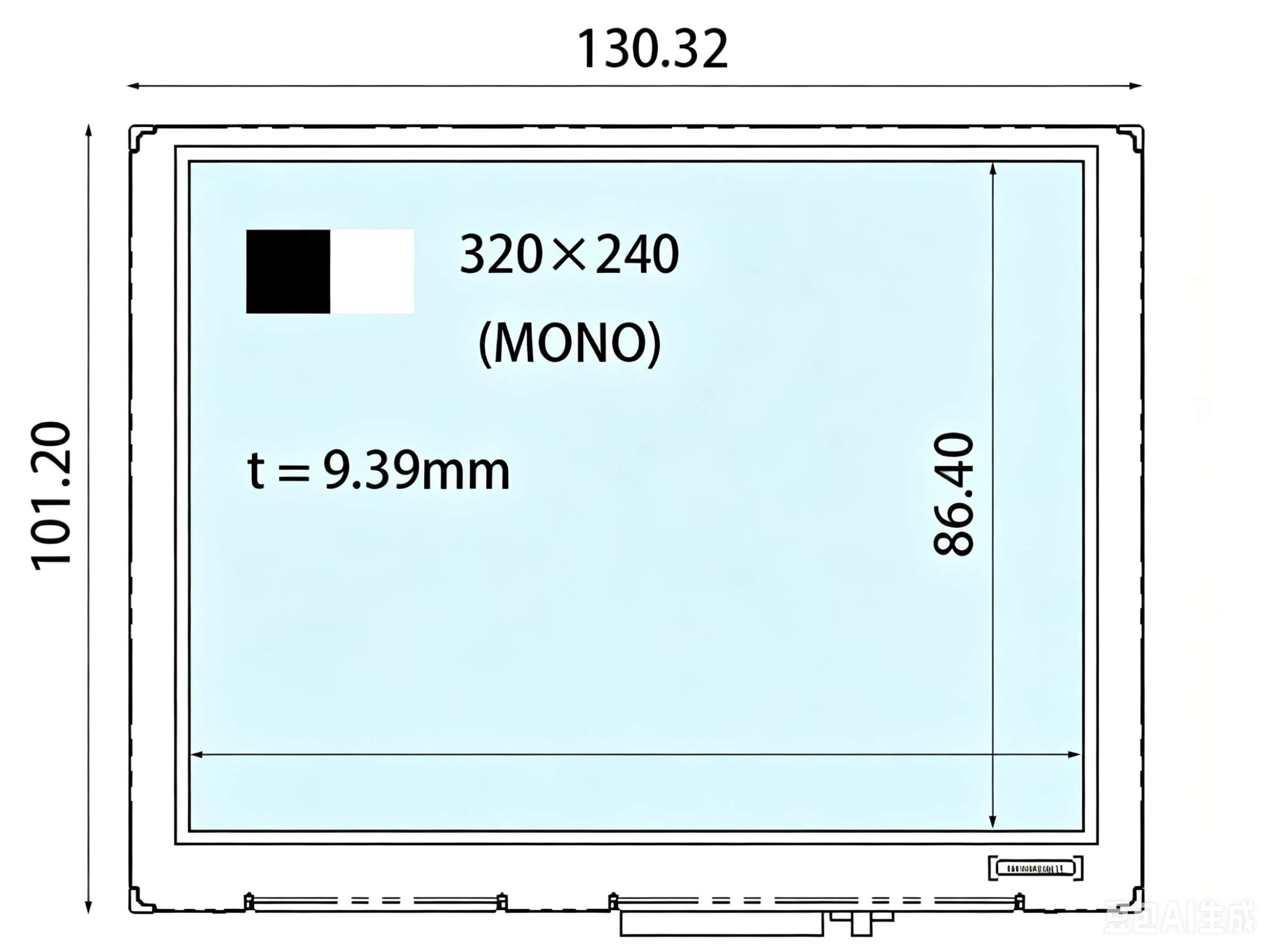

| Outline Size |
130.32(W)×101.2(H)×10(D) mm |
| Surface |
Hard coating (3H) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| Viewing Angle |
80/80/60/80 (Min.) (CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Response Time |
40/60 (Max.) (Tr/Td) ms |
| Display Colors |
Grayscale |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Light Source |
2S2P WLED, 70K hrs, Without Driver |
| Interface |
Parallel Data (1ch, 6-bit), 33 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Applications:
Ideal for industrial control systems, medical equipment, POS terminals, test instruments, and other embedded displays requiring a durable, sunlight-readable, and power-efficient monochrome or grayscale LCD solution.
