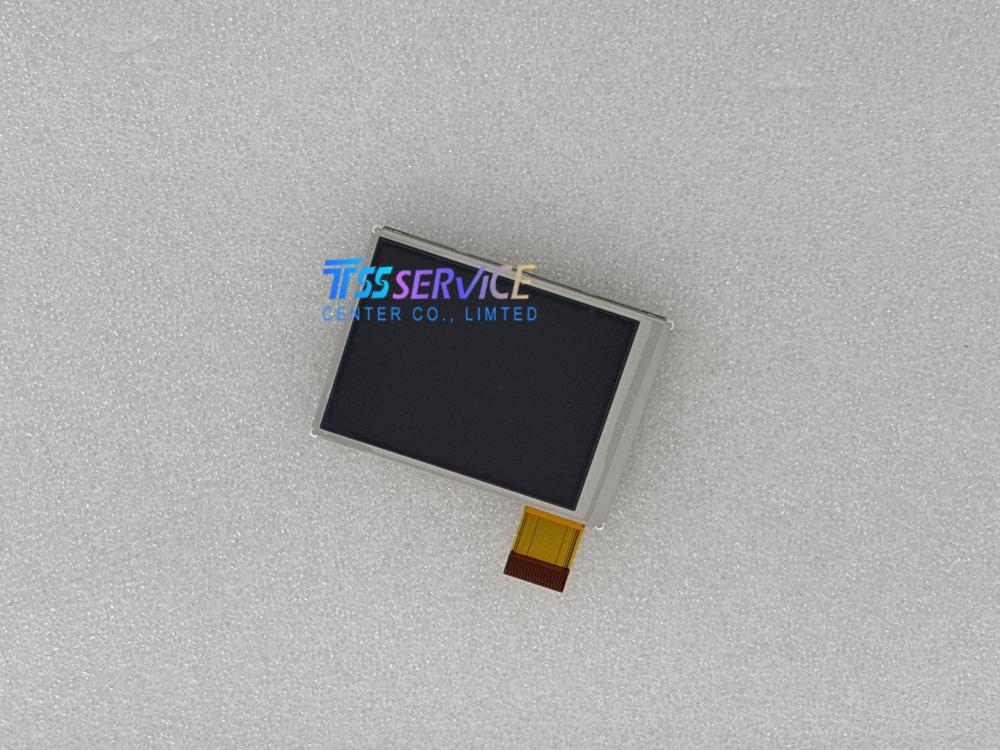

COM24H2N57XLC 2.4-Inch Industrial LCD Panel - Ortustech
The COM24H2N57XLC is a high-performance 2.4-inch a-Si TFT-LCD module manufactured by Ortustech. Designed for industrial environments, this model features a transflective display technology, combining transmissive and reflective modes to deliver exceptional readability under both indoor lighting and direct sunlight.
| Parameter |
Value |
| Manufacturer |
Ortustech |
| Model No. |
COM24H2N57XLC |
| Screen Size |
2.4 inch |
| Screen Type |
a-Si TFT-LCD, LCM |
| Number of dots |
240(RGB)×320, 3:4, QVGA |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
36×48 mm (H×V) |
| Outline Area |
42.5×58.5×4 mm (H×V×D) |
| Weight |
13.6g (Typ.) |
| Surface Feature |
Hard coating (3H) |
| Luminance |
300 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM); 8.5:1 (Typ.) (RF) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Response (ms) |
40/60 (Max.)(Tr/Td) |
| Display Type |
TN, Normally White, Transflective |
| Display Colors |
262K |
| Backlight |
2S1P WLED, 50K hrs, No Driver |
| Touchscreen |
Without |
| Signal Type |
CPU, 39 pins FPC |
| Voltage Supply |
2.7V (Typ.)(VCI) |
| Storage Temp. |
-30 ~ 80 °C |
| Operating Temp. |
-20 ~ 70 °C |
Applications
This display is ideally suited for:
-
Industrial control equipment
-
Handheld terminals and PDAs
-
Outdoor measurement devices
-
Portable instruments requiring sunlight readability
