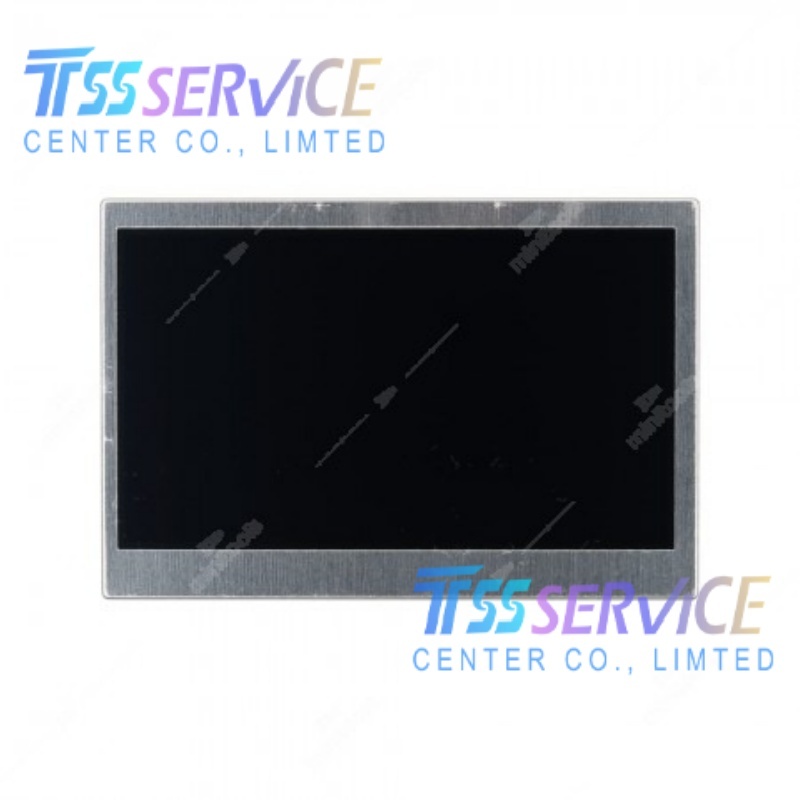

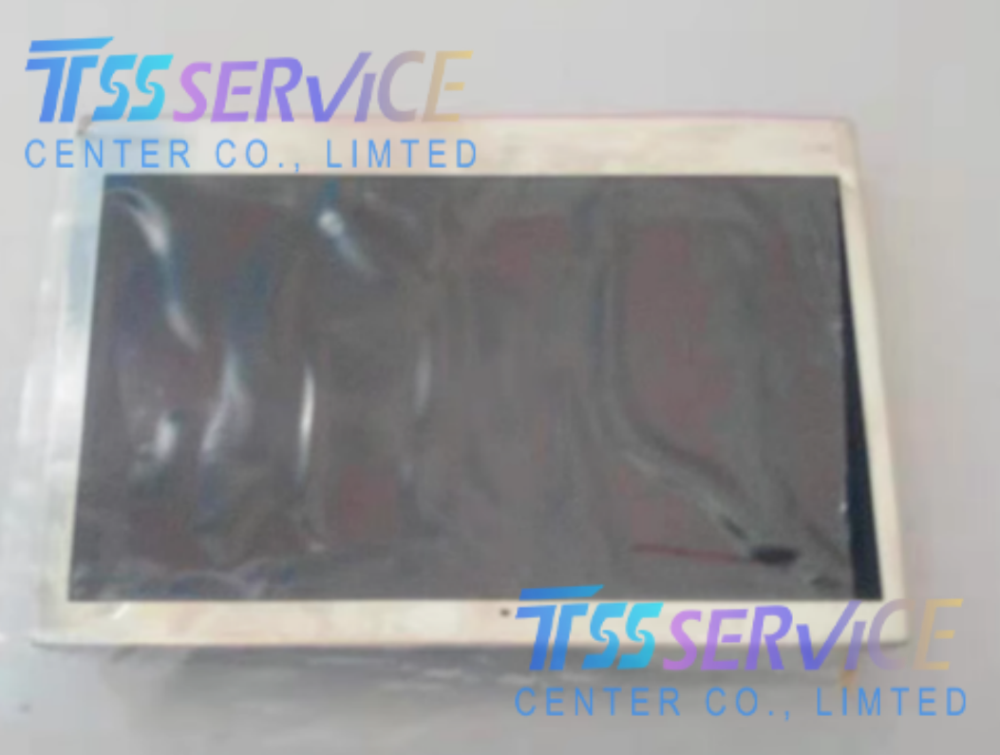

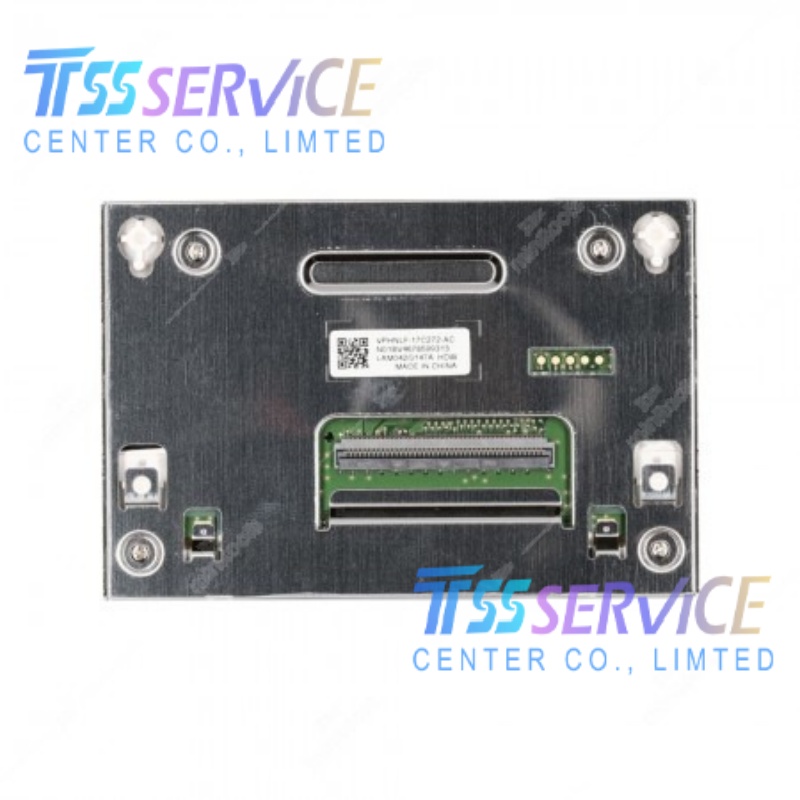

LAM042G147A 4.2 inch 480 × 272 LCD Panel Display For Industrial

Name: LAM042G147A 4.2 inch 480 × 272 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LAM042G147A
Price: 120 USD
Availability: InStock

SKU: LAM042G147A

Model P/N: LAM042G147A
Diagonal Size: 4.2"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 480 × 272 (WQVGA)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$120.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LAM042G147A 4.2 inch 480 × 272 LCD Panel Display For Industrial

Parameter	Value
Model	LAM042G147A
Manufacturer	Japan Display Inc. (JDI)
Size	4.2 inches (diagonal)
Panel Type	a-Si TFT-LCD, Transmissive
Resolution	480 × 272 (WQVGA)
Pixel Format	RGB Vertical Stripe
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	45°/45°/30°/40° (L/R/U/D, CR≥10)
Response Time	30 ms (Typ.)
Display Mode	TN, Normally White
Backlight	CCFL (Cold Cathode Fluorescent Lamp)
Interface	Single-channel LVDS (20 pins)
Supply Voltage	3.3 V (Logic) / 12 V (Backlight)
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
Color Depth	16.7M colors (24-bit RGB)
Outline Dimension	105.0 × 68.0 × 6.5 mm
Active Area	93.6 × 52.6 mm
Weight	Approx. 150 g
Status	Discontinued (End of Production)

Applications

Automotive Navigation Systems：In-car GPS displays, infotainment screens.
Vehicle Instrument Clusters：Digital dashboards, driver information displays.
Industrial Control Panels：Small HMIs, factory automation terminals.
Marine & Heavy Equipment：Boat/ship navigation displays, construction machinery monitors.
Portable Medical Devices：Patient monitors, diagnostic equipment.
Consumer Electronics：Portable media players, industrial handheld terminals.
