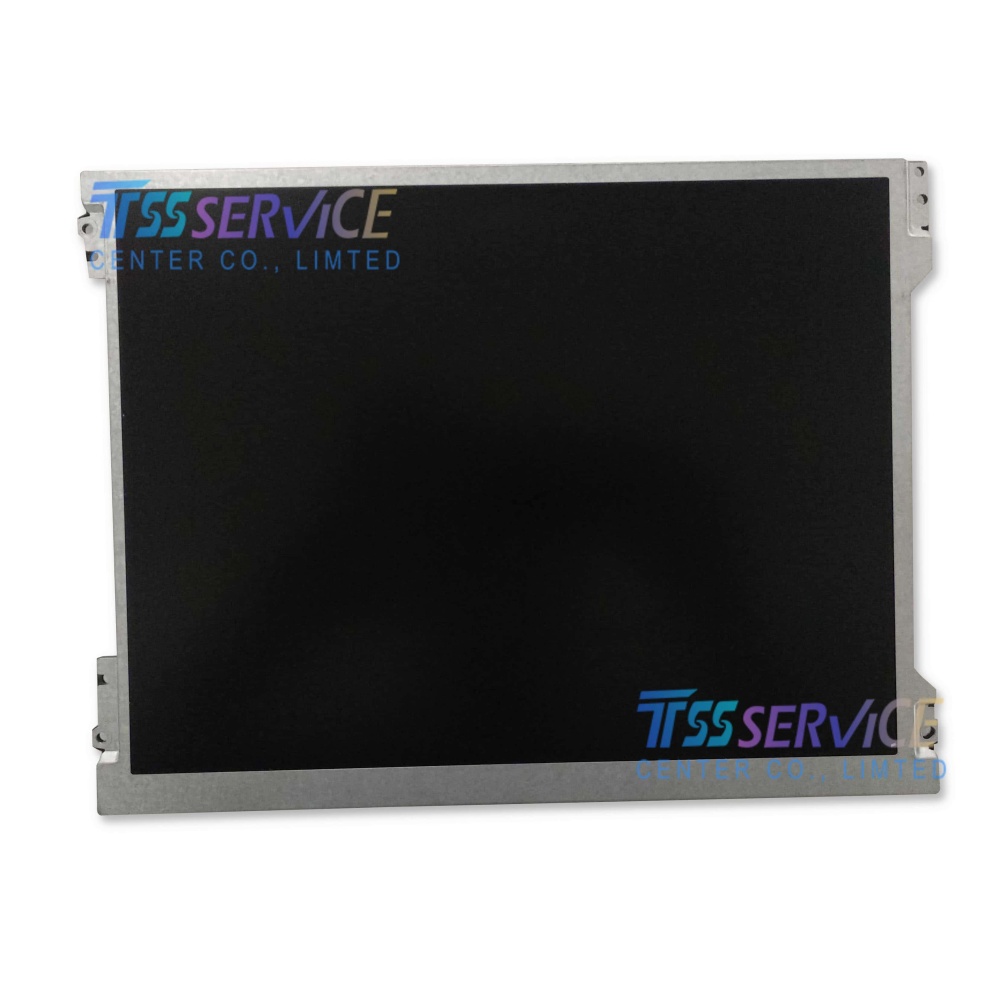

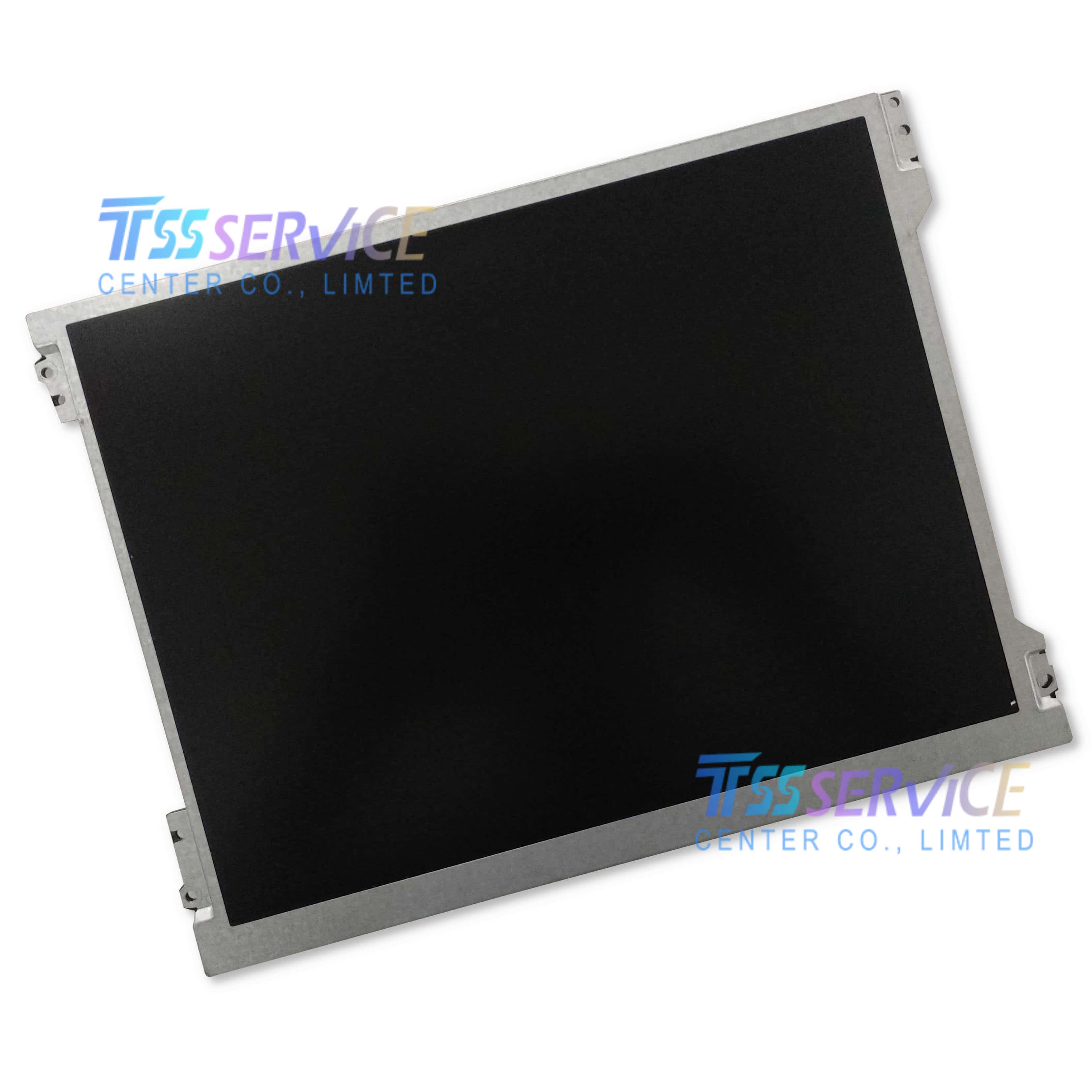

M121GNS3 R0 is a 12.1‑inch SVGA industrial TFT‑LCD panel by IVO (Longteng Optoelectronics), featuring 400 cd/m² brightness, 800:1 contrast, LVDS interface, and wide temperature range for cost‑effective industrial HMI and embedded display applications.
Parameter
Details
Model
M121GNS3 R0
Brand
IVO (Kunshan Longteng Optoelectronics)
Display Size
12.1 Inch
Resolution
800 × 600 pixels (SVGA, 4:3)
Panel Type
a‑Si TFT‑LCD, TN, Normally White, Transmissive
Brightness
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.)
Viewing Angle
80°/80°/60°/80° (L/R/U/D, CR≥10)
Display Colors
262K colors (6‑bit RGB)
Backlight
WLED (integrated driver), 50,000 hours lifespan
Active Area
246.0 × 184.5 mm
Outline Size
276.0 × 209.0 × 9.1 mm
Interface
LVDS (1 ch, 6‑bit), 20‑pin connector
Input Voltage
3.3 V (Typ.)
Refresh Rate
60 Hz
Surface
Anti‑glare (Matte)
Operating Temperature
-20 °C ~ +70 °C
Storage Temperature
-30 °C ~ +85 °C
Weight
Approx. 1.0 kg
Touch Panel
None
