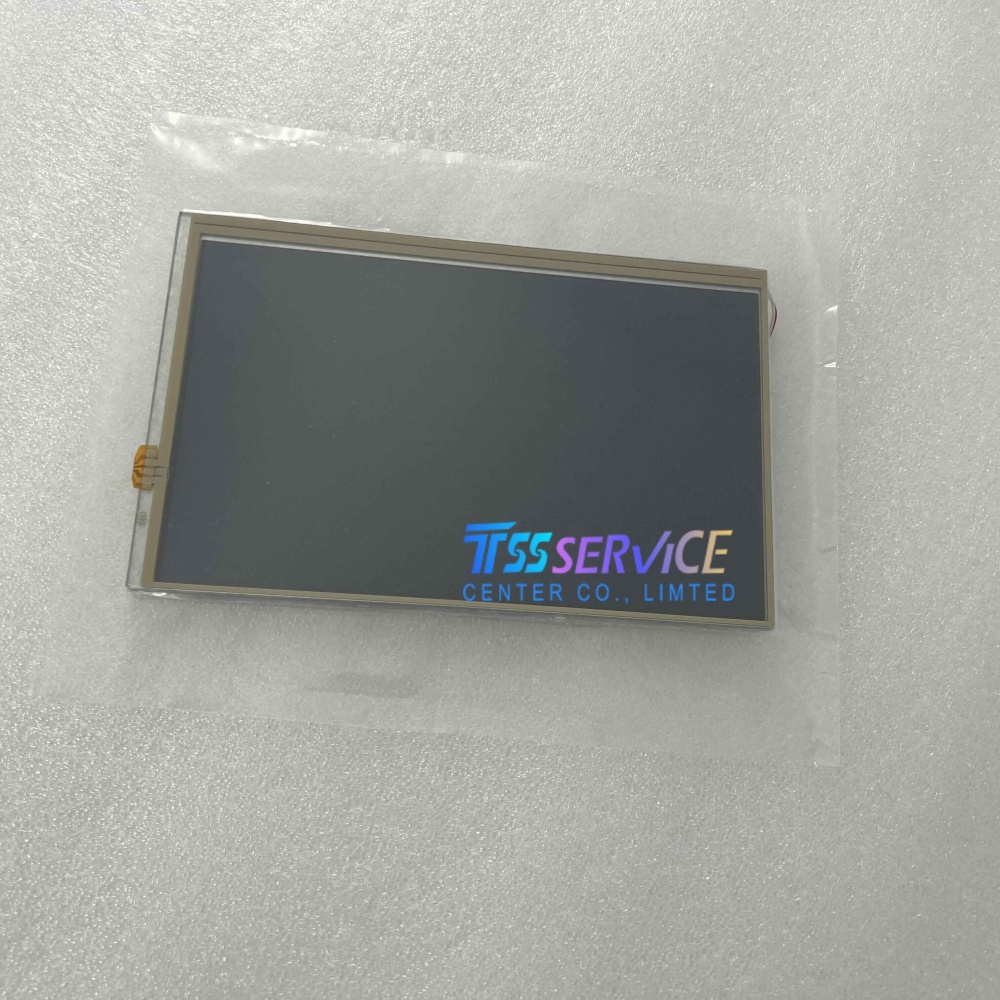

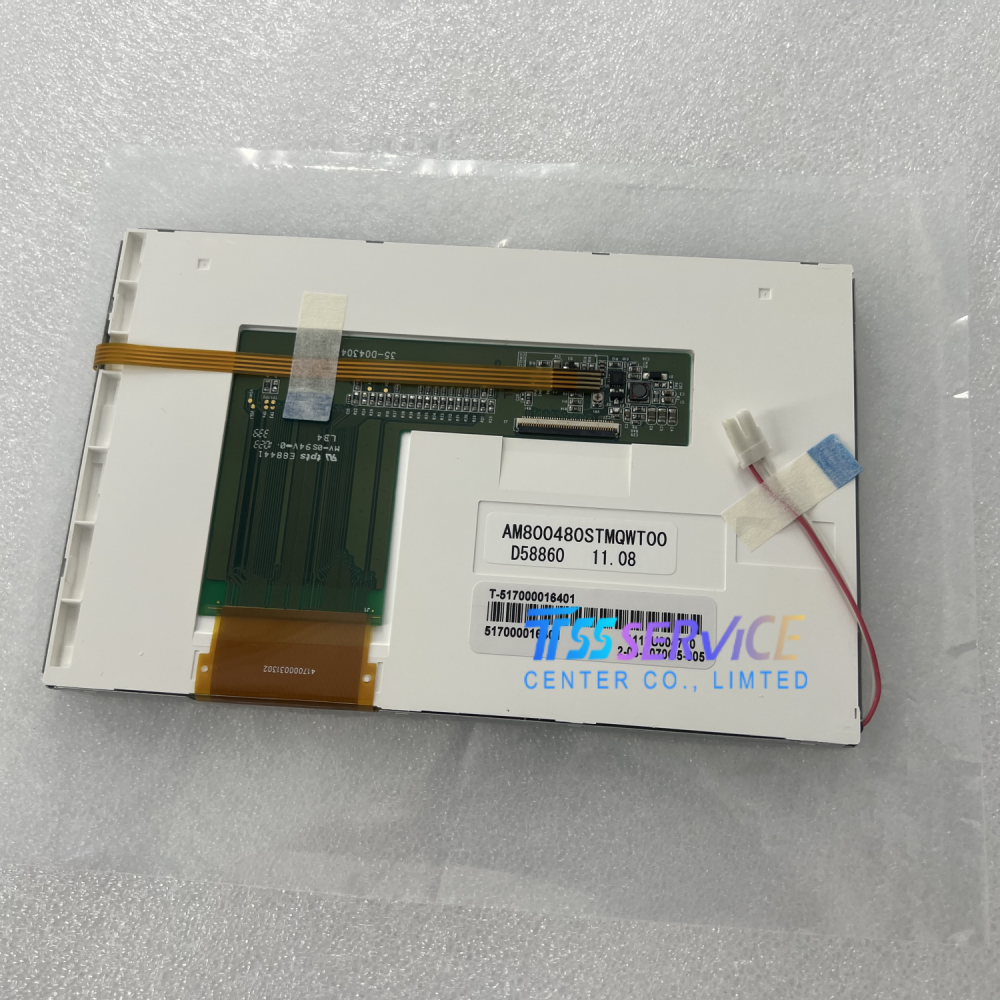

AMPIRE AM-800480STMQW-T00H 7.0inch LCD Panel with 4-Wire Resistive Touch

SKU: AM-800480STMQW-T00H

1,Condition: New,Grade A

2,Description: AM-800480STMQW-T00H 7.0 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$62.00 $60.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
1/1
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
  • AMPIRE AM-800480STMQW-T00H 7.0" 800×480 TFT-LCD Panel with 4-Wire Resistive Touch
  • Description
The AMPIRE AM-800480STMQW-T00H is a 7.0-inch industrial TFT-LCD display module featuring integrated 4-wire resistive touch screen technology. With WVGA resolution (800×480) and a 15:9 aspect ratio, this all-in-one display solution combines reliable visual performance with accurate touch interaction, making it ideal for human-machine interface (HMI) applications.

Parameter Specification
Mfr. AMPIRE
Model Name AM-800480STMQW-T00
Display Size 7.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×480, WVGA, 15:9
Dot Layout RGB Vertical Stripe
Display Area 152.4(W) × 91.44(H) mm
Outline Size 165(W) × 104.44(H) × 7.56(D) mm
Brightness 280 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 70/70/70/60 (Typ.) (CR≥10)
Display Mode TN, Normally White, Transmissive
View Direction 12 o'clock
Response Time 5/11 (Typ.) (Tr/Td) ms
Display Colors 262K
Touch Screen 4-wire Resistive Touch
Light Source 3S8P WLED, 20K hrs, Without Driver
Frequency 60 Hz
Interface Parallel RGB (1 ch, 6-bit), 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: -20 ~ 70°C; Storage Temp.: -30 ~ 80°C

Typical Applications

  • Industrial control panels and HMIs

  • Medical equipment interfaces

  • POS (Point of Sale) terminals

  • Home automation controllers

  • Portable test instruments

  • Kiosk and vending machine displays

  • Automotive infotainment systems

  • Factory automation terminals
