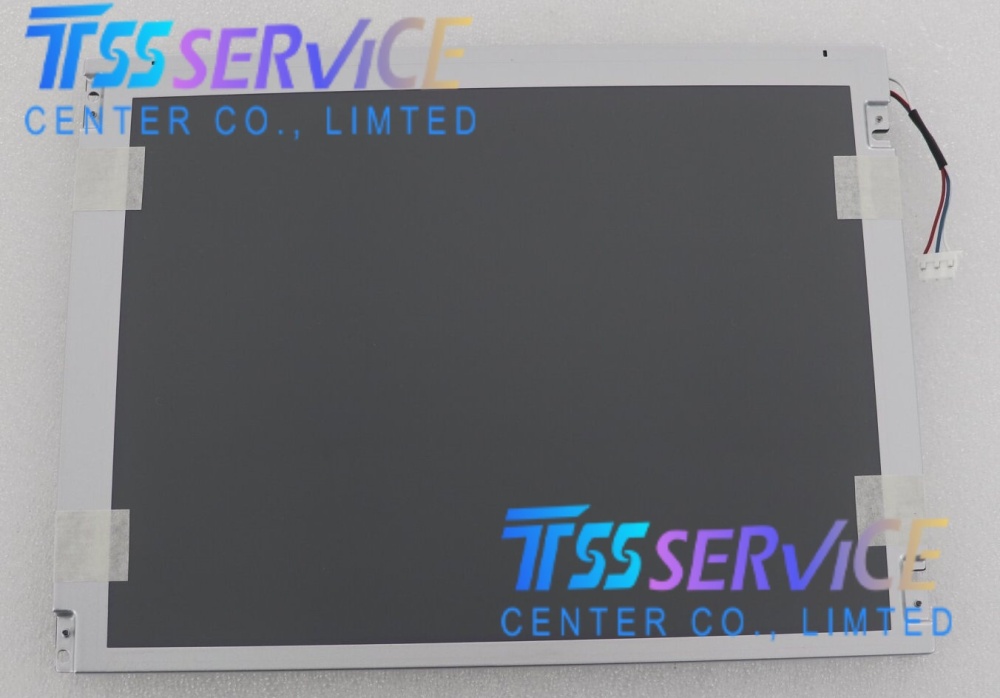

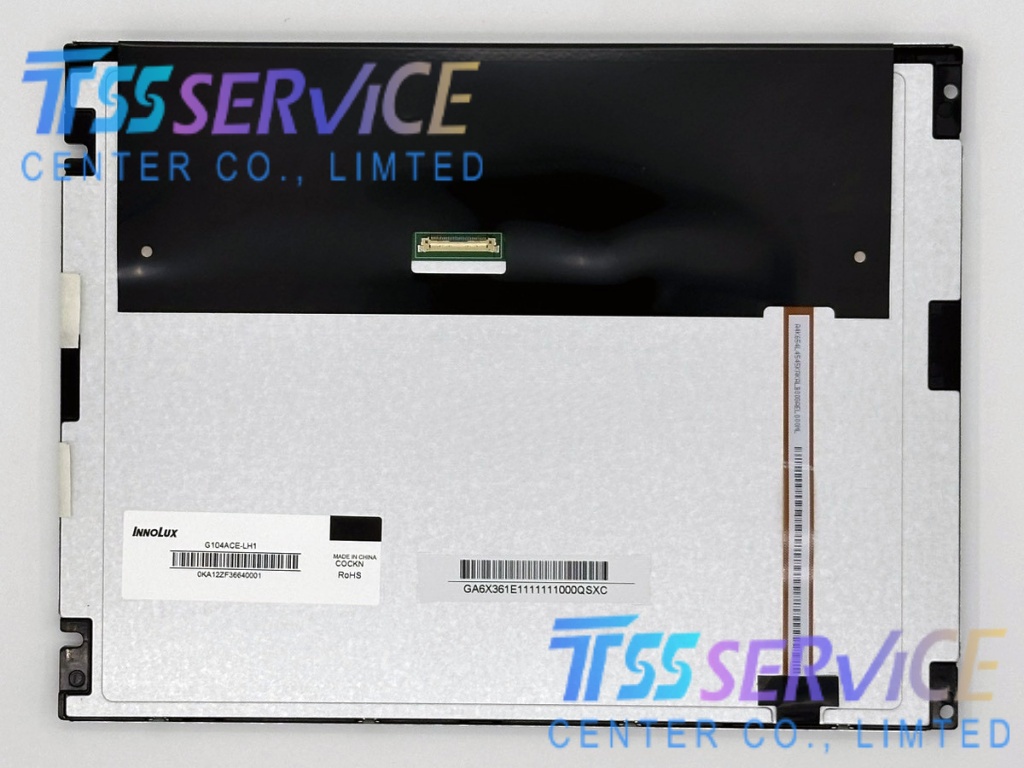

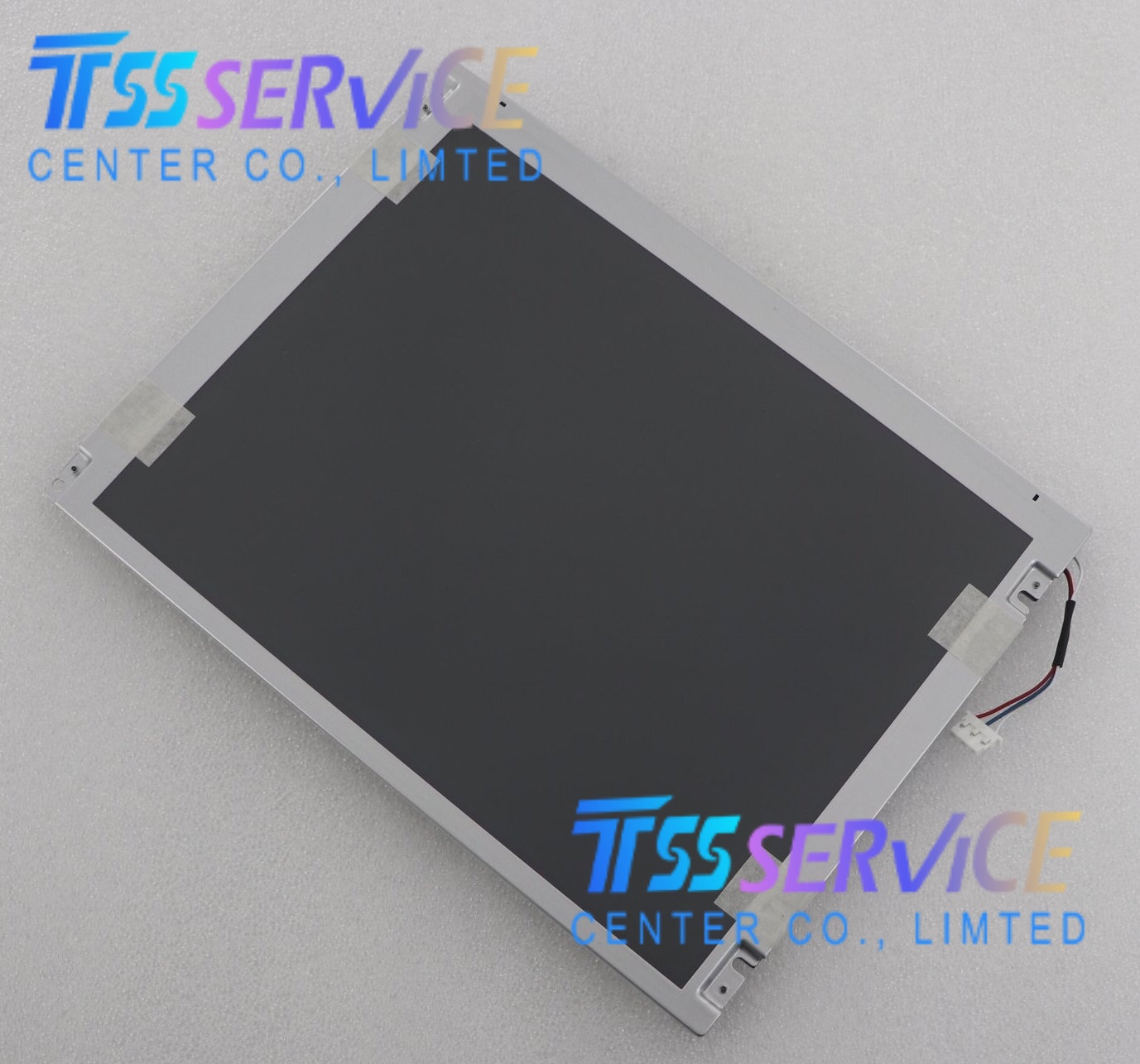

Innolux G104ACE-LH1 10.4 inch 800×600 LCD Panel Screen For Industrial
| Parameter |
Value |
| Manufacturer |
Innolux (CHIMEI) |
| Model |
G104ACE-LH1 |
| Panel Type |
a‑Si TFT‑LCD, IPS/AAS, Normally Black, Transmissive |
| Diagonal Size |
10.4 inches |
| Resolution |
800(RGB) × 600 (SVGA), 96 PPI |
| Aspect Ratio |
4:3 |
| Pixel Pitch |
0.264 × 0.264 mm (H×V) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Active Area |
211.2(W) × 158.4(H) mm |
| Outline Dim. |
243(W) × 184(H) × 8.5(D) mm |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) |
| Viewing Angle |
88/88/88/88° (Typ., CR≥10) |
| Response Time |
13/12 ms (Tr/Td, Typ.) |
| Color Depth |
262K / 16.7M colors (6/8‑bit) |
| Color Gamut |
~72% NTSC (Typ.) |
| Backlight |
Edge‑lit WLED, 50,000 hrs lifetime, built‑in driver |
| Interface |
LVDS (1 ch, 6/8‑bit), 30‑pin connector |
| Surface |
Anti‑Glare (AG), Hard Coating (3H) |
| Voltage Supply |
5.0V |
| Power Consumption |
7.8W (Typ.) |
| Operating Temp |
-30°C ~ +85°C |
| Storage Temp |
-30°C ~ +85°C |
| Weight |
335 g (Typ.) |
| Frame Rate |
60 Hz |
| RoHS |
Compliant |
| Production Status |
In Production |
This wide‑temperature, full‑viewing‑angle panel is widely used in industrial, medical, transportation, and embedded systems:
- Industrial Control & HMI: Factory automation panels, PLC interfaces, process monitoring, industrial PCs, injection molding machine displays.
- Medical Equipment: Patient monitors, diagnostic imaging displays, bedside terminals, ultrasound machines.
- Test & Measurement: Oscilloscopes, data loggers, spectrum analyzers, handheld meters.
- Transportation: In‑vehicle displays, fleet management, marine/avionics control panels, automotive GPS.
- POS & Kiosks: Self‑service terminals, retail cash registers, ticketing machines.
- Rugged Embedded: Outdoor/industrial tablets, vehicle mount displays, industrial IoT HMI.
- Gaming & Amusement: Arcade machines, slot machine displays.
