Condition: New Original
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL / FedEx / UPS
| Parameter | Specification / Description |
|---|---|

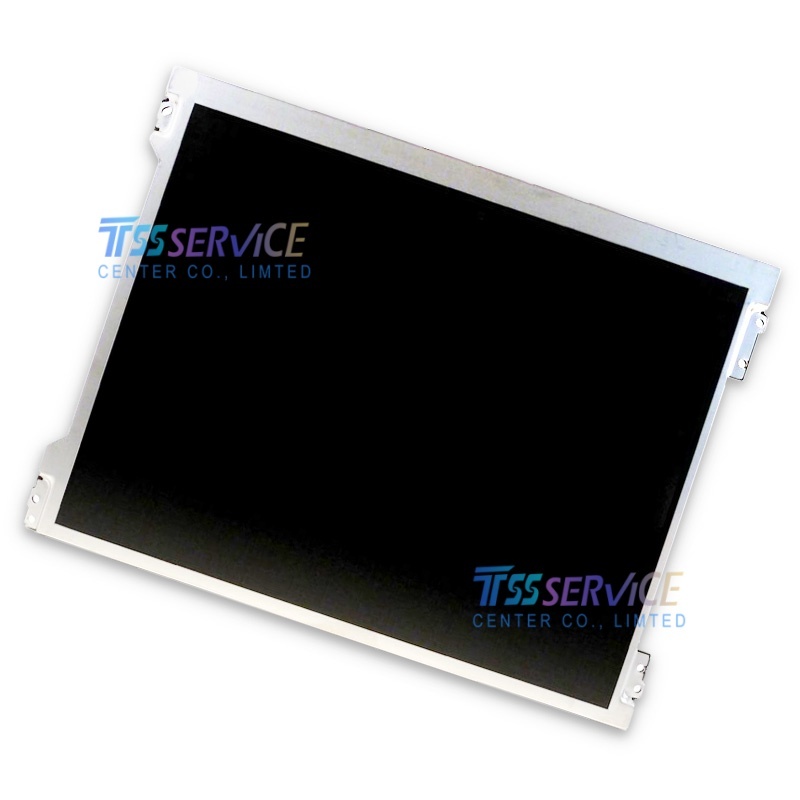

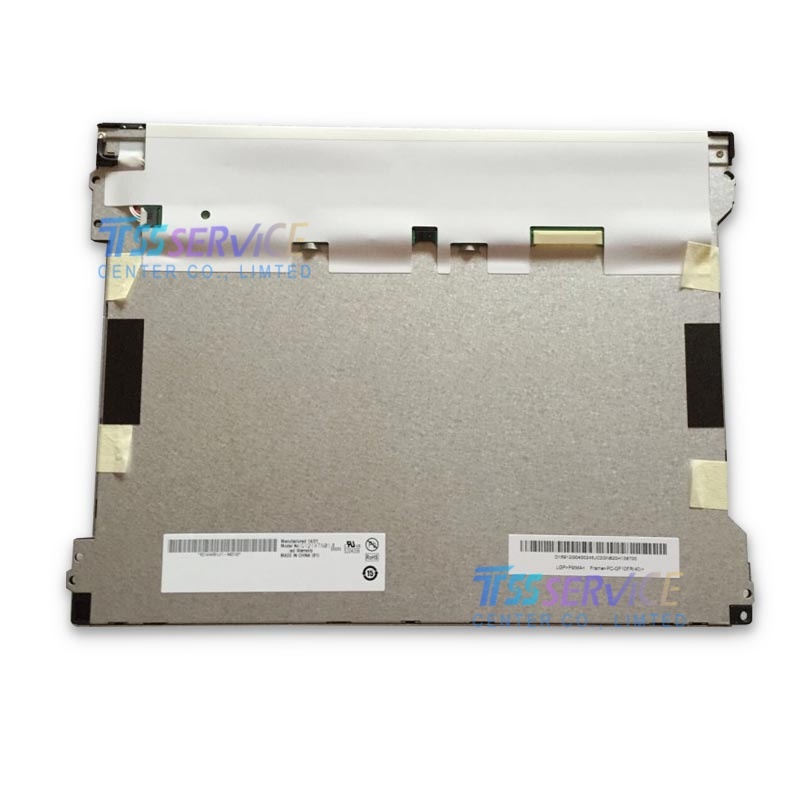

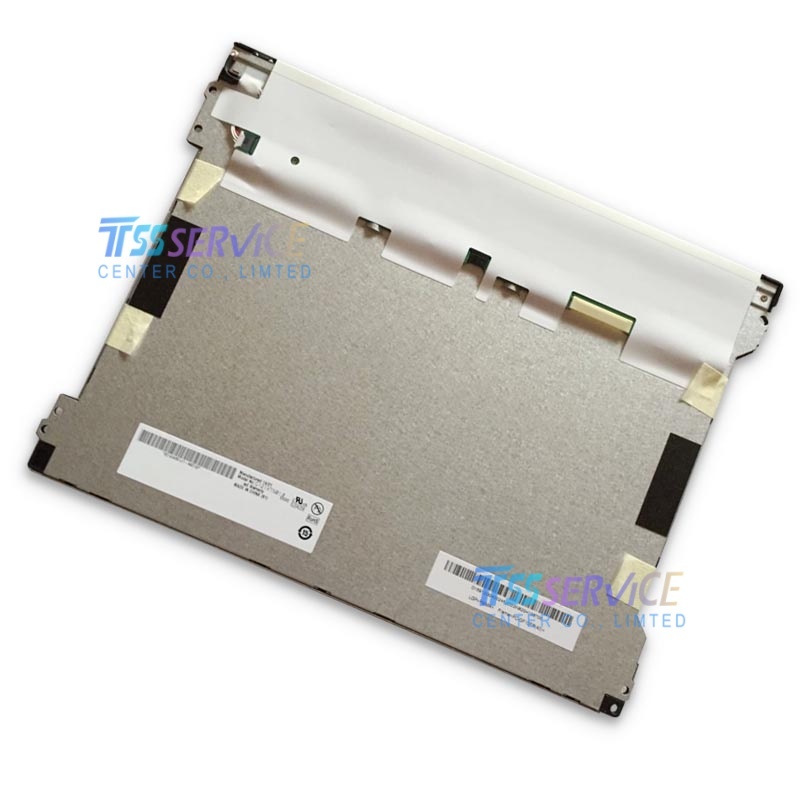

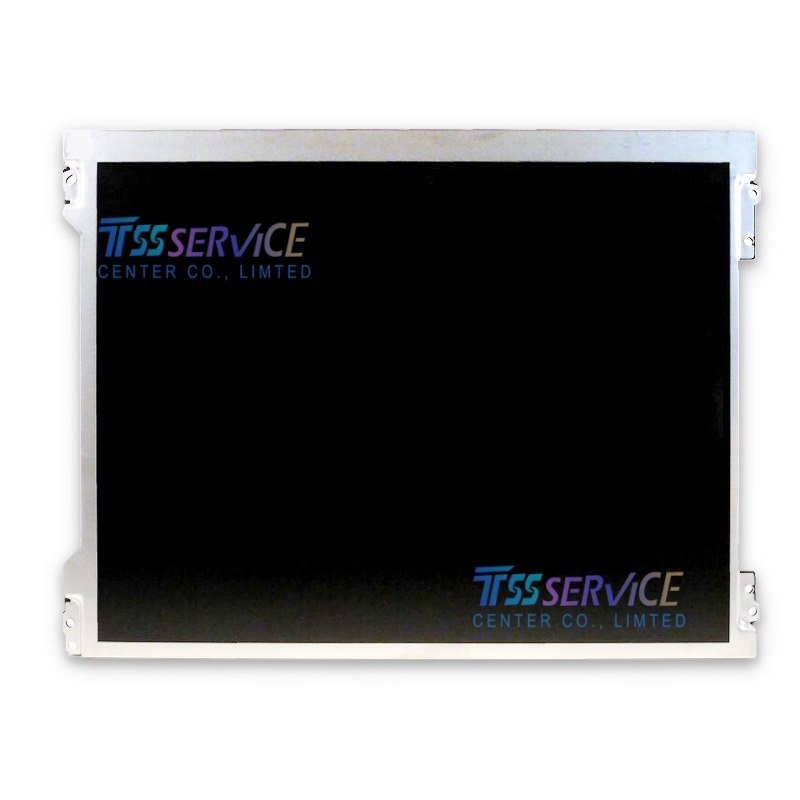

| Model Number | G121XTN01.0 |
| Manufacturer | AUO (Au Optronics) |
| Panel Type | a-Si TFT-LCD, TN (Twisted Nematic) Mode |
| Display Size | 12.1 inches (Diagonal) |
| Resolution | 1024 (RGB) × 768 pixels (XGA) |
| Pixel Pitch | 0.240 mm (H) × 0.240 mm (V) |
| Display Area | 245.76 mm (W) × 184.32 mm (H) |
| Outline Dimensions | Approx. 279.0 mm (W) × 209.0 mm (H) × 9.0 mm (D)* |
| Color Depth | 262K colors (6-bit) or 16.2M colors (8-bit optional) |
| Brightness | High Brightness (Typically 500 cd/m² or higher for industrial versions) |
| Contrast Ratio | High contrast ratio optimized for industrial readability |
| Viewing Angle | Wide Viewing Angle (Enhanced TN), typically 80/80/80/80 (CR≥10) |
| Surface Treatment | Matte / Haze finish (Anti-glare) |
| Backlight Type | White LED (WLED) with integrated driver |
| Backlight Life | > 50,000 hours |
| Operating Temperature | -30°C to +85°C (Wide Temperature) |
| Storage Temperature | -30°C to +85°C |
| Interface | LVDS (Low-Voltage Differential Signaling), Single/Dual Channel (Configurable) |
| Mechanical Feature | Support for 180° rotation; Signal terminals standard mount |
| Vibration Resistance | 1.5G (14.7 m/s²) |
| Touch Panel | No Touch (Optional add-on available) |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
