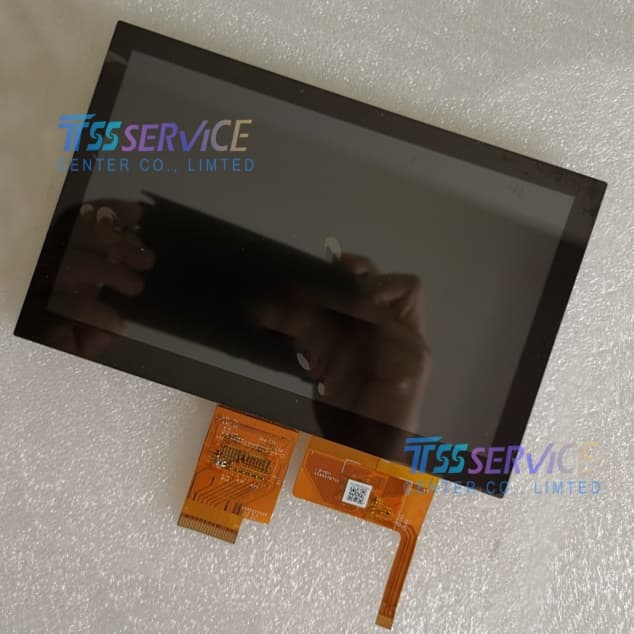

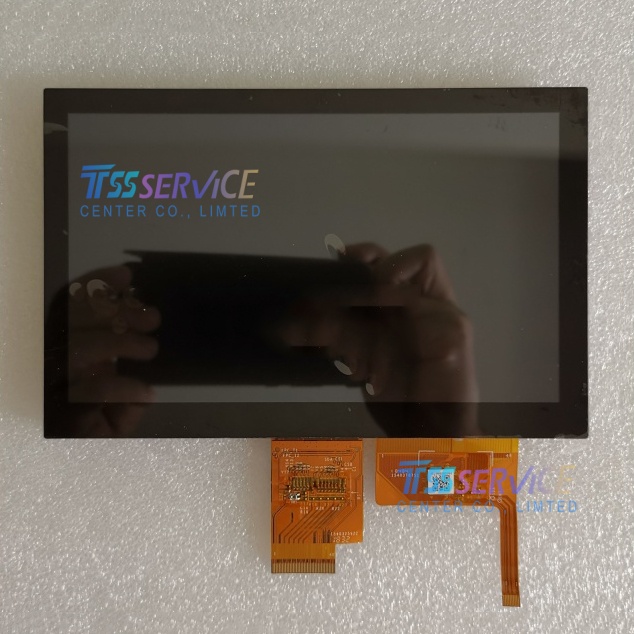

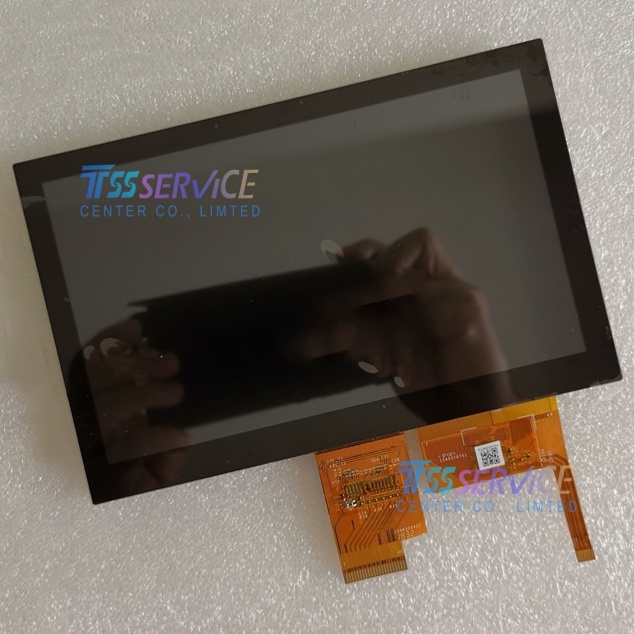

The TM070DVHG01-41 is a 7.0-inch a-Si TFT-LCD assembly module from TIANMA, designed for industrial and embedded applications requiring reliable performance and compact integration.
| Parameter |
Value |
| Brand |
TIANMA |
| Model P/N |
TM070DVHG01-41 |
| Diagonal Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, Assembly |
| Resolution |
1024(RGB)×600, WSVGA 169PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
153.6(W)×90(H) mm |
| Outline (mm) |
171.5(W)×110.3(H)×5.3(D) |
| Luminance |
270 (Typ.)(cd/m²) |
| Contrast Ratio |
500 : 1 (Typ.) (TM) |
| Viewing Angle |
75/75/70/75 (Typ.)(CR≥10) |
| Good View at |
6 o'clock |
| Response |
20 (Typ.)(Tr+Td) ms |
| Color Depth |
16.7M 50% NTSC |
| Backlight |
3S6P WLED, 20K hours, No Driver |
| Refresh Rate |
60Hz |
| Touchscreen |
PCAP, I²C |
| Signal Type |
LVDS (1 ch, 8-bit), 40 pins FPC |
| Voltage Supply |
3.3/11.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Storage Temp. |
-30 ~ 80 °C |
| Operating Temp. |
-20 ~ 70 °C |
Typical Applications
Thanks to its moderate size, touch capability, and reliable temperature range, this display is suitable for a variety of industrial and consumer applications, including:
-
Industrial Control Panels / HMI (Human-Machine Interfaces)
-
Medical Equipment Displays
-
Home Automation Control Centers
-
Portable Instrumentation
-
Infotainment Systems (e.g., rear-seat entertainment)
-
Test and Measurement Devices
