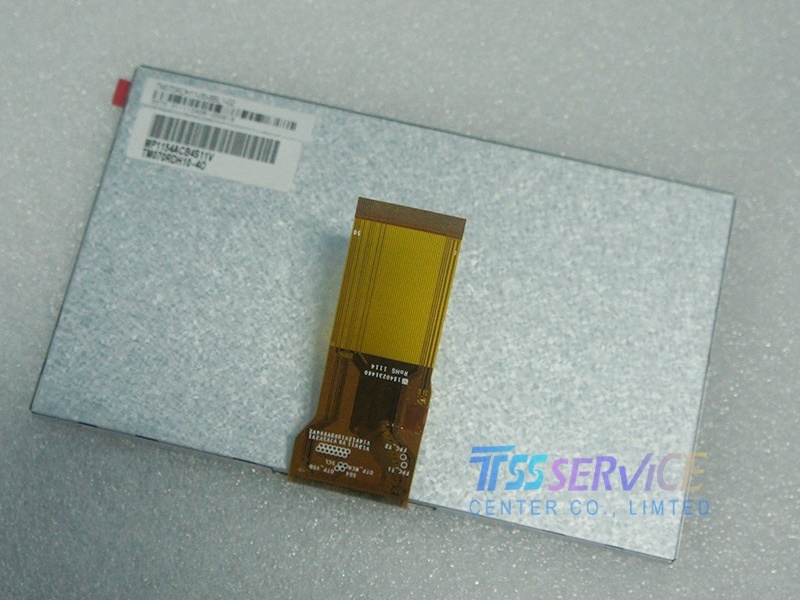

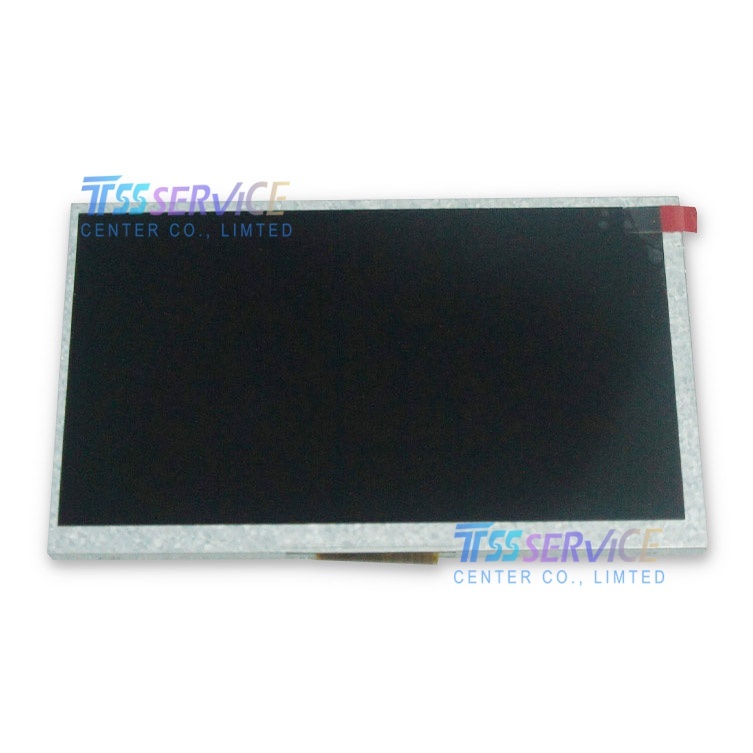

The TM070RDH10-40 is a 7.0-inch TFT-LCD module manufactured by TIANMA Microelectronics Co., Ltd., a globally recognized leader in display technology. It features a wide-format 800×480 resolution (WVGA) in a compact 7-inch diagonal, designed for embedded systems, industrial controls, and portable devices. This model is currently in stock, providing immediate availability for prototyping, production, and replacement needs.
| Parameter | Specification |
|---|---|
| Model | TM070RDH10-40 |
| Manufacturer | TIANMA |
| Screen Size | 7.0 inches |
| Active Area | 154.08 mm (W) × 85.92 mm (H) |
| Resolution | 800 (RGB) × 480 pixels (WVGA) |
| Display Type | a-Si TFT LCD |
| Backlight Type | White LED (edge-light) |
| Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Brightness (Typ.) | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Surface Treatment | Anti-glare hard coating |
| Operating Temperature | -20°C to +70°C (industrial grade) |
| Storage Temperature | -30°C to +80°C |
| Weight | ~ 180‑220 g |
| Application | Description |
|---|---|
| Industrial HMI | Control panels, CNC machine interfaces, automation monitors |
| Medical Equipment | Patient monitors, diagnostic instruments |
| Commercial Terminals | POS systems, self-service kiosks, vending machines |
| Transportation | Vehicle-mounted displays, GPS navigation terminals |
| Consumer Devices | Digital photo frames, portable DVD players |
