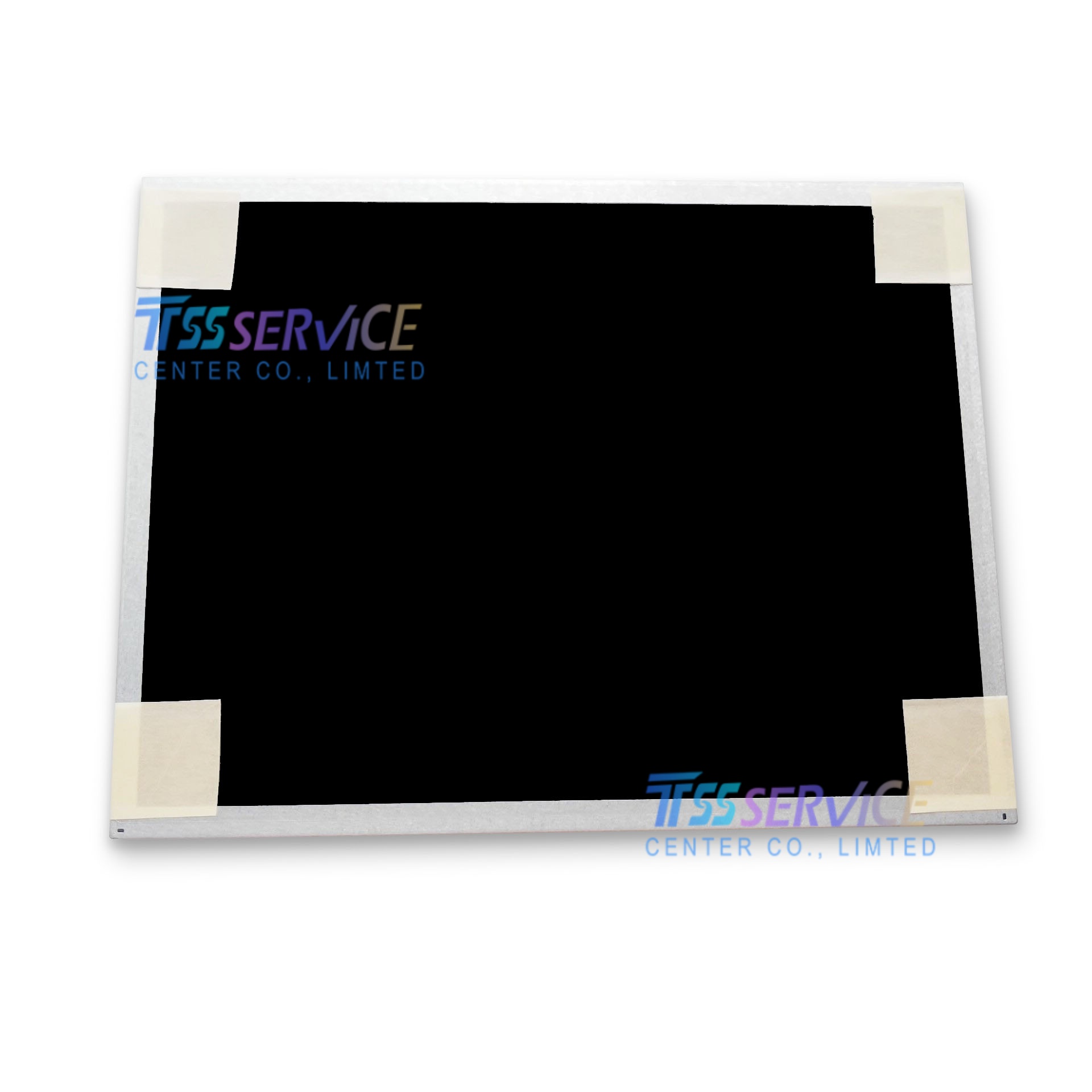

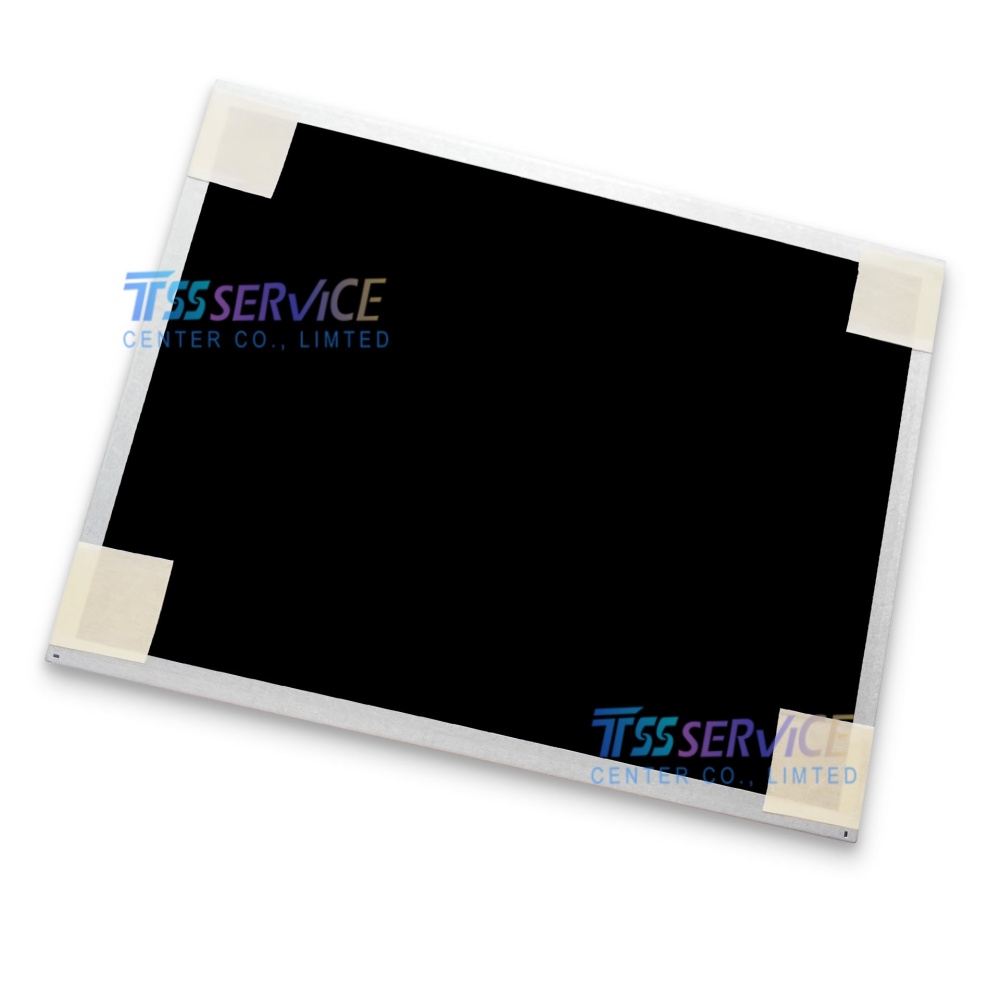

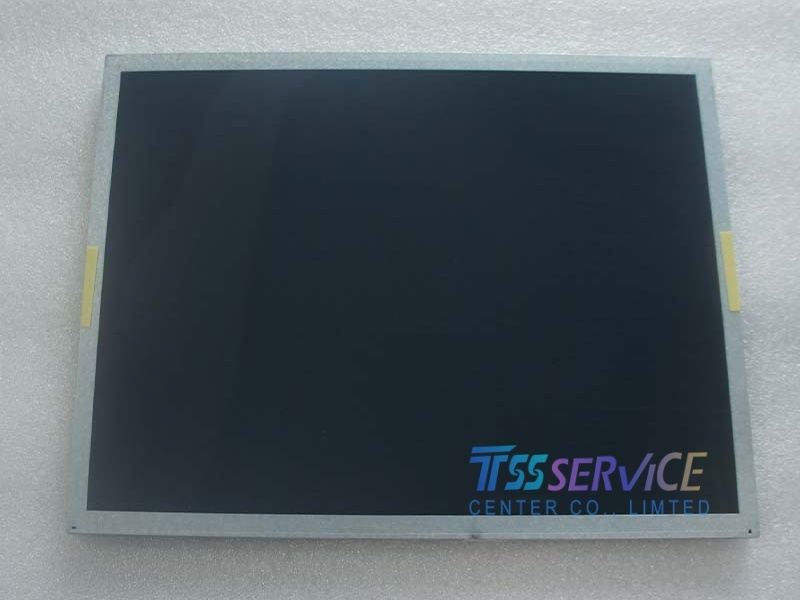

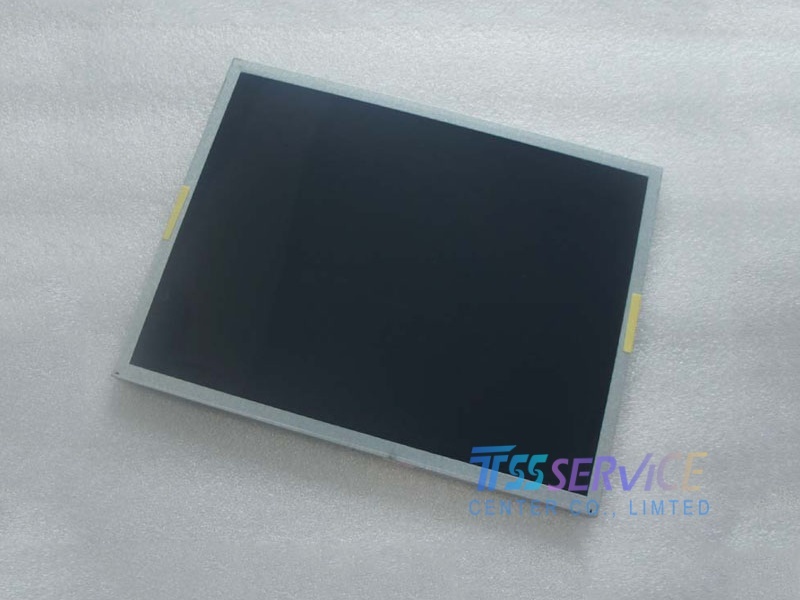

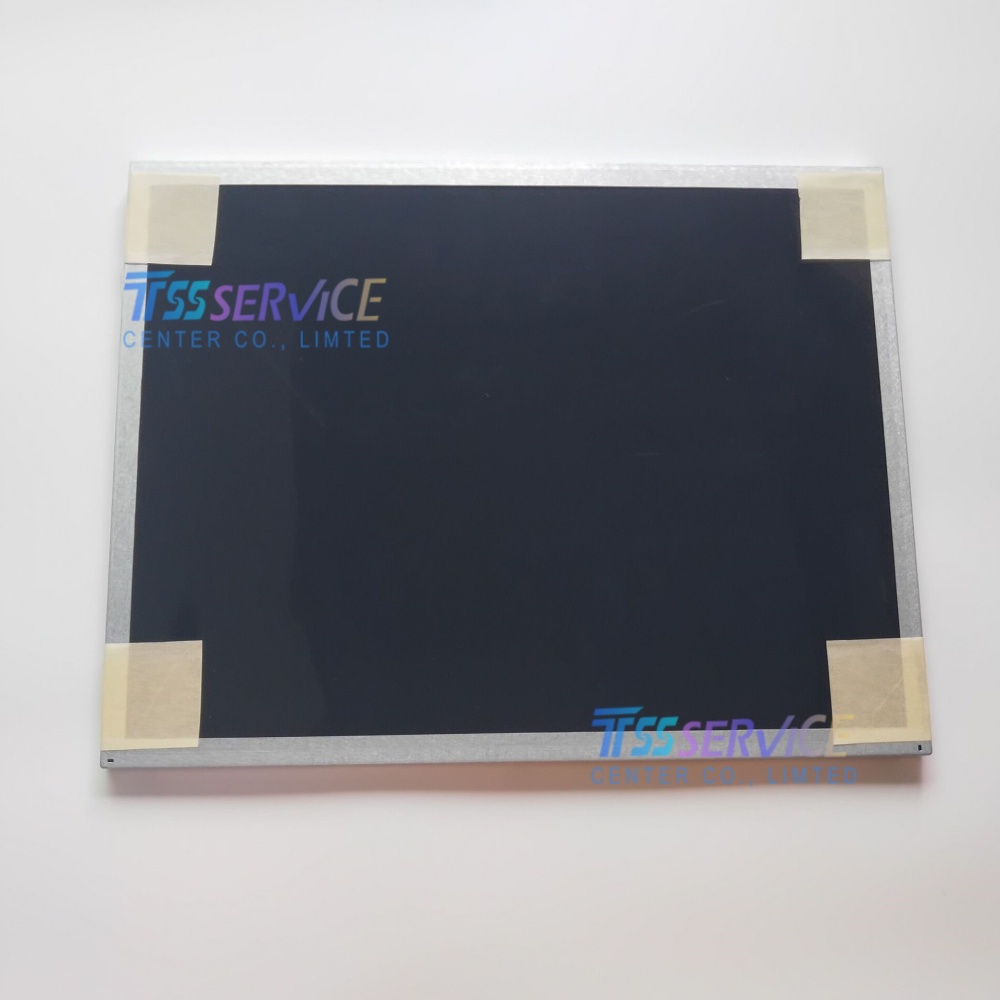

G150XTN05.001 | AUO 15" XGA Ultra Wide Temperature Industrial TFT-LCD Panel
G150XTN05.001 is a premium 15-inch XGA industrial TFT panel manufactured by AU Optronics, upgraded variant of base model G150XTN05.0. It adopts a-Si TN Normally White transmissive technology, 400 cd/m² high-brightness edge WLED backlight with integrated LED driver, single-channel 6/8-bit switchable LVDS 20-pin interface, matte 3H anti-glare hard coating and reinforced metal shielding frame. It supports extreme wide operating temperature range -30℃ ~ +85℃, 700:1 high contrast ratio and symmetrical wide viewing angle, without built-in touch panel and compatible with external resistive/capacitive touch overlay. This rugged industrial display is widely used for heavy-duty factory automation HMI, construction & agricultural machinery onboard terminals, outdoor power & environmental monitoring equipment, medical diagnostic instruments and maintenance replacement of legacy industrial screens.
| Parameter Item |
Specification Details |
| Full Part Number |
G150XTN05.001 |
| Manufacturer |
AU Optronics (友达光电) |
| Diagonal Size |
15.0 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1024(H) × 768(V) pixels (XGA, 85 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.297 mm (H) × 0.297 mm (V) |
| Active Area (AA) |
304.128 mm (W) × 228.096 mm (H) |
| Overall Outline Dimension |
326.5 mm (W) × 253.5 mm (H) × 12.0 mm (Max Thickness) |
| Typical Brightness |
400 cd/m² (semi-sunlight readable) |
| Typical Contrast Ratio |
700:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
80° / 80° / 70° / 70°, symmetrical wide angle |
| Response Time (Tr / Td Typical) |
5.7 ms / 2.3 ms |
| Display Color Depth |
262K (6-bit) / 16.2M (6-bit+FRC 8-bit simulation), 65% NTSC color gamut |
| Backlight System |
Edge-lit WLED, integrated onboard LED driver, service life ≥ 50,000 hours, non-replaceable backlight unit |
| Signal Interface |
Single-channel LVDS, support 6-bit & 8-bit signal, 20-pin FPC connector, support 180° signal reverse |
| Logic Supply Voltage |
3.3 VDC (Typical) |
| Typical Total Power Consumption |
9.1 W (logic + backlight) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive/capacitive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Housing Structure |
Reinforced metal shielding frame, anti-electromagnetic interference & anti-vibration industrial structure |
| Operating Temperature |
-30°C ~ +85°C ultra-wide extreme temperature tolerance |
| Storage & Transport Temp |
-30°C ~ +85°C |
| Net Weight |
Max 1000 g |
| Version Upgrade vs G150XTN05.0 |
Optimized backlight uniformity, upgraded ESD immunity, consistent mechanical outline & pin definition, fully pin-to-pin interchangeable |
| Compliance Standard |
RoHS lead-free compliant, industrial UL safety certification |
| Production Status |
Mass stable production, sufficient stock for new industrial projects & equipment maintenance replacement |
