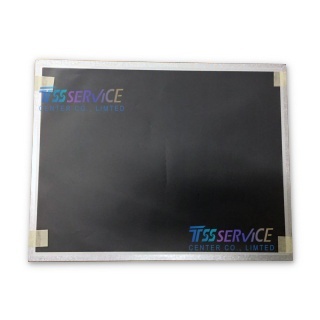

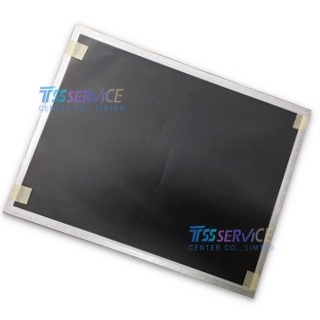

Innolux NEW 15.0 inch LCD Display Panel G150XNE-L03 Rev.C1 for Industrial
| Parameter |
Specification |
Details / Notes |
| Brand |
Innolux |
Original Manufacturer |
| Model Number |
G150XNE-L03 |
Rev.C1 |
| Screen Size |
15.0 Inch |
Diagonal Measurement |
| Resolution |
1024(RGB) × 768 |
XGA Format, 4:3 Aspect Ratio |
| Pixel Arrangement |
RGB Vertical Stripes |
Standard TFT Matrix |
| Display Mode |
TN, Normally White, Transmissive |
6 o'clock optimal viewing angle |
| Brightness |
300 cd/m² (Typ.) |
Suitable for indoor industrial use |
| Contrast Ratio |
800:1 (Typ.) |
Transmissive Mode |
| Viewing Angle |
80/80/80/80 (Typ.) |
Left / Right / Up / Down (CR≥10) |
| Response Time |
10 / 15 ms (Typ.) |
Tr / Td |
| Display Colors |
16.7 Million |
6/8-bit Gray Scale Selectable |
| Backlight |
WLED (Side-in) |
70K Hours Lifespan, With LED Driver |
| Interface |
LVDS (1 ch, 6/8-bit) |
20 Pins, Terminal Connector |
| Supply Voltage |
3.3V (Typ.) |
Logic Supply Voltage |
| Refresh Rate |
60Hz |
Typical Vertical Frequency |
| Operating Temp. |
-20°C ~ 70°C |
Wide Temperature Range |
| Storage Temp. |
-30°C ~ 70°C |
Extreme Temperature Tolerance |
| Vibration Resistance |
1.5G (14.7 m/s²) |
Industrial Grade Durability |
| Surface Treatment |
Anti-Glare, Hard Coating (3H) |
Foggy / Matte Finish |
| Dimensions (W×H×D) |
326.5 × 253.5 × 9.6 mm |
Outline Dimensions |
| Active Area |
304.128 × 228.096 mm |
Display Area |
| Weight |
0.96 / 1.00 kg |
Typ. / Max. |
-
-
-
-
-
- Industrial Automation & Control: Human-Machine Interfaces (HMI), PLC control panels, and CNC machine displays.
- Medical Equipment: Portable diagnostic devices, patient monitors, and laboratory instrumentation.
- Automotive & Transportation: In-vehicle displays, fleet management terminals, and marine navigation systems.
- Smart Metering & Instruments: Industrial testing equipment, power analyzers, and environmental monitoring devices.
- Commercial Terminals: POS systems, ticketing kiosks, and access control panels.
Innolux
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
