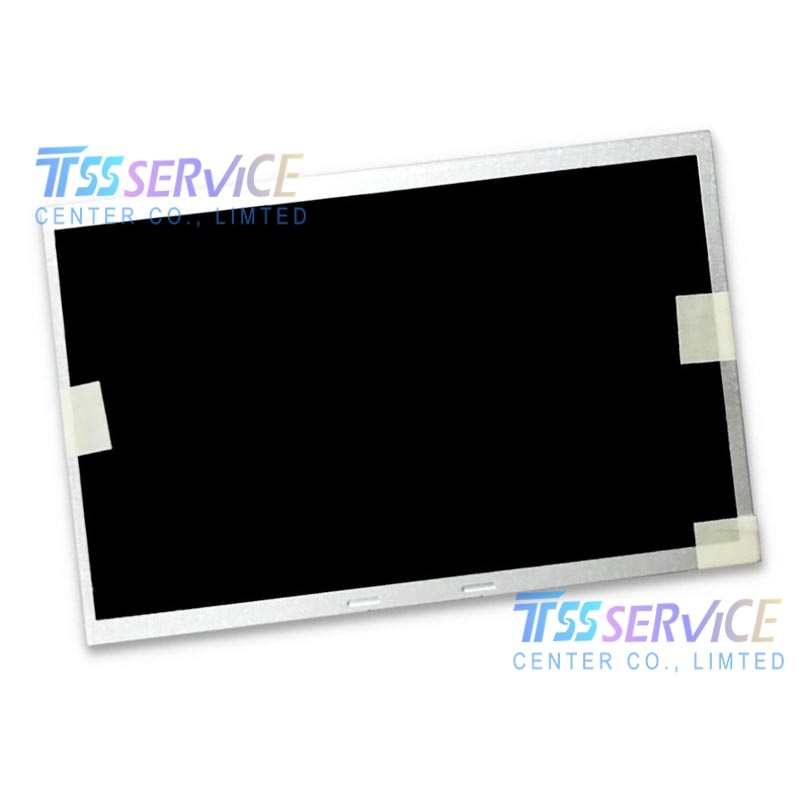

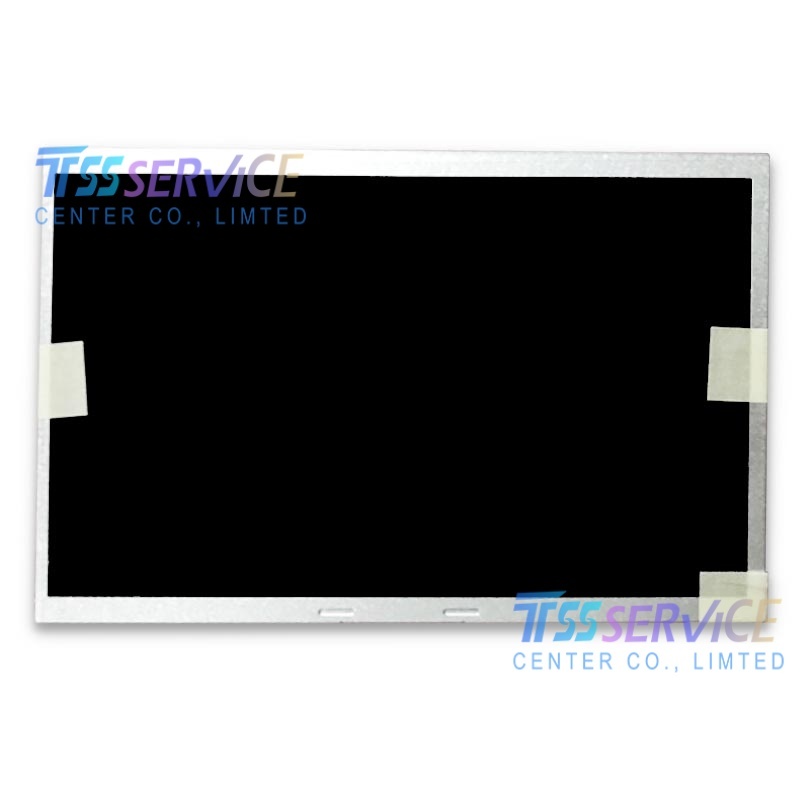

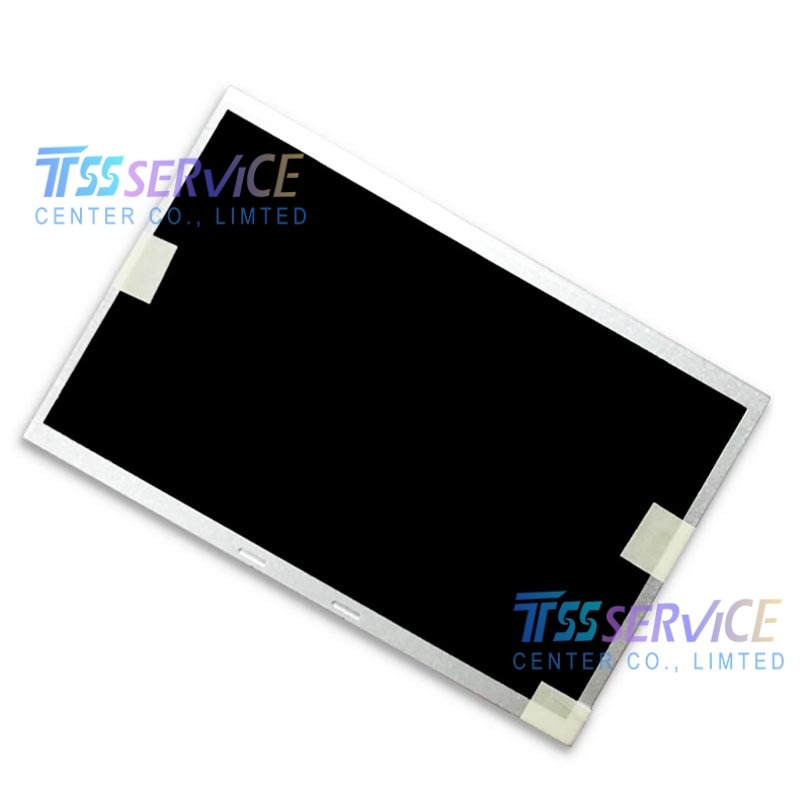

AUO 10.1 inch LCD Display Panel G101STN01.C for Industrial Repair

Name: AUO 10.1 inch LCD Display Panel G101STN01.C for Industrial Repair
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G101STN01.C
Price: 52 USD
Availability: InStock

SKU: G101STN01.C

Condition: New

Warranty: 90 Days

Lead Time: 1-3 Working days

Shipping: DHL / FedEx / UPS

0.0 (0 Reviews)

0 Sold

~~$54.00~~ $52.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO 10.1 inch LCD Display Panel G101STN01.C for Industrial

The G101STN01.C is a 10.1-inch a-Si TFT-LCD liquid crystal module manufactured by AUO (Au Optronics). Designed specifically for industrial and embedded applications, this module utilizes TN (Twisted Nematic) technology to provide a cost-effective yet robust display solution.

It features a WSVGA resolution (1024×600) with a 16:9 aspect ratio, making it ideal for modern wide-screen interfaces. A key distinguishing feature of the "C" revision in this series is its wide operating temperature range (typically -30°C to +80°C), allowing it to function reliably in extreme environments where standard commercial displays would fail. The module is equipped with a White LED (WLED) backlight system that includes an integrated driver, ensuring a long lifespan (>50,000 hours) and consistent brightness. It supports LVDS interface signaling and often features a matte surface treatment to reduce glare in industrial settings.

Parameter	Specification / Description
Model Number	G101STN01.C
Manufacturer	AUO (Au Optronics)
Panel Type	a-Si TFT-LCD, TN (Twisted Nematic) Mode
Display Size	10.1 inches (Diagonal)
Resolution	1024 (RGB) × 600 pixels (WSVGA)
Aspect Ratio	16:9 (Wide)
Pixel Pitch	0.218 mm (H) × 0.218 mm (V) (Approx. based on WSVGA 10.1")
Display Area	222.72 mm (W) × 125.28 mm (H)
Outline Dimensions	Approx. 235.0 mm (W) × 143.0 mm (H) × 5.0 mm (D)*
Color Depth	262K colors (6-bit) or 16.2M colors (8-bit optional via dithering)
Brightness	High Brightness (Typically 400~500 cd/m² for industrial versions)
Contrast Ratio	500:1 to 700:1 (Typ.)
Viewing Angle	70/70/60/60 (Typ.) (Left/Right/Up/Down, CR≥10)
Surface Treatment	Matte / Haze finish (Anti-glare)
Backlight Type	White LED (WLED) with integrated driver
Backlight Life	> 50,000 hours
Operating Temperature	-30°C to +80°C (Wide Temperature Industrial Grade)
Storage Temperature	-30°C to +80°C
Interface	LVDS (Low-Voltage Differential Signaling), 1 Channel, 6/8-bit
Mechanical Feature	Standard mounting holes; RoHS Compliant
Vibration Resistance	1.5G (14.7 m/s²)
Touch Panel	No Touch (Open Frame for optional touch integration)

Q: May I ask what kind of packaging you use?

A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.

Q: Do you conduct tests before shipment?

A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
