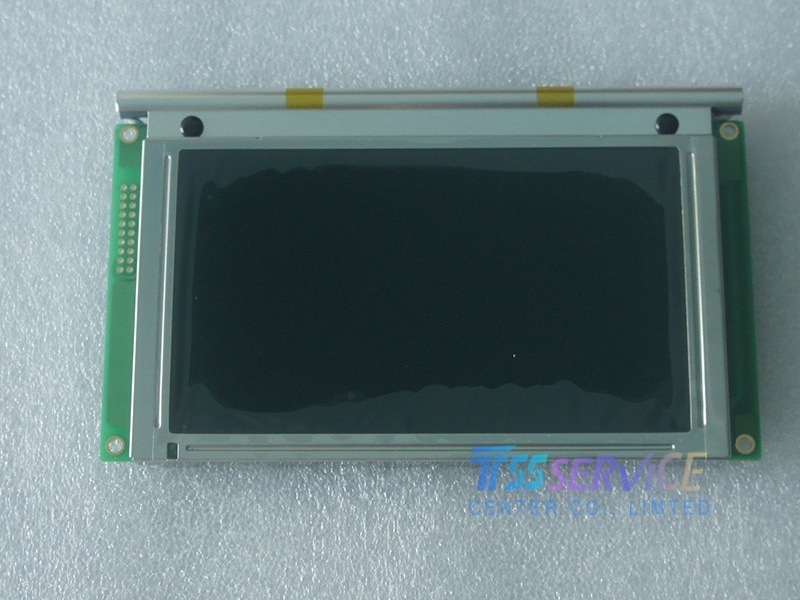

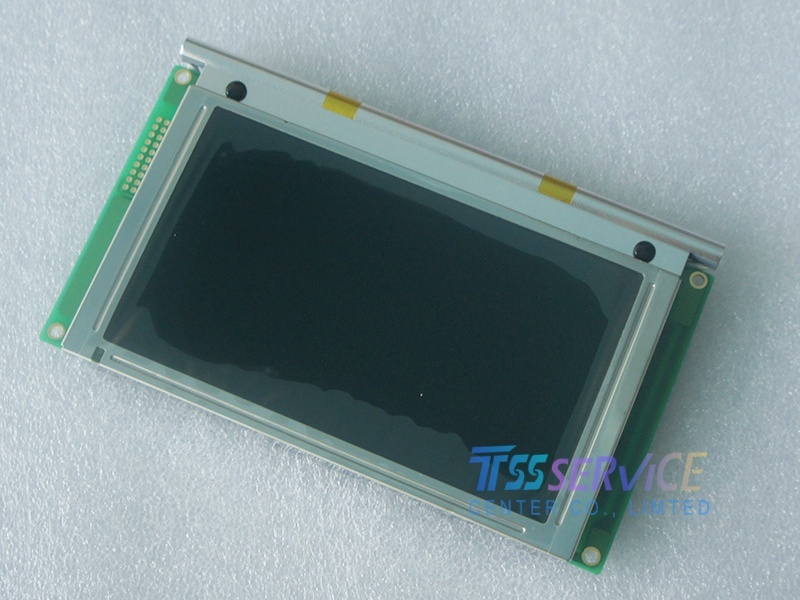

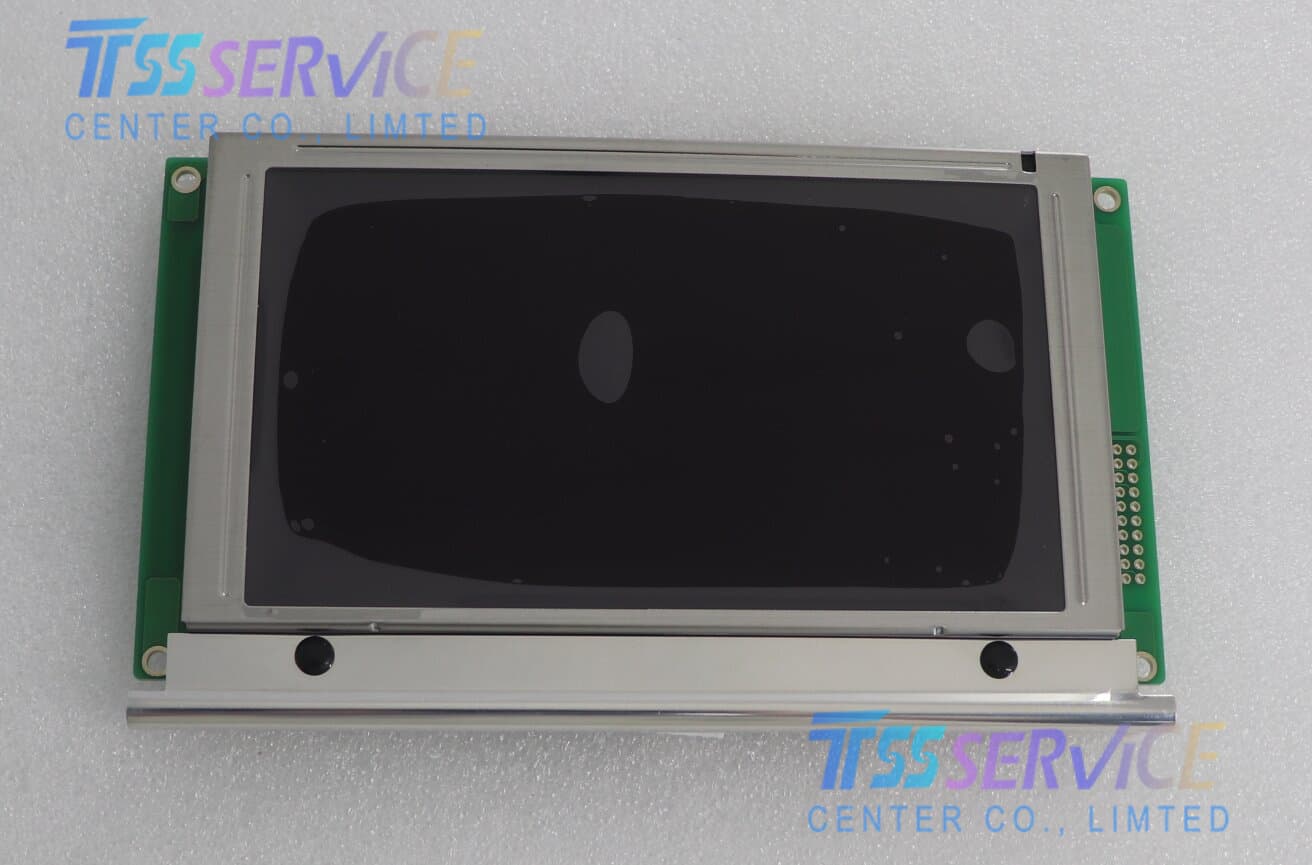

DMF-50773NF-FW-AIE-AJN | Optrex (Kyocera) 5.4" 240×128 Monochrome FSTN Graphic LCD Module
DMF-50773NF-FW-AIE-AJN is a high-reliability industrial monochrome graphic LCD module manufactured by Optrex (Kyocera Display), belonging to the classic DMF-50773NF-FW series. It integrates Toshiba T6963C built-in graphic controller, single CCFL backlight and standard 8-bit parallel 20-pin MCU interface. The suffix AIE represents enhanced ESD & EMI anti-interference PCB circuit, and AJN stands for reinforced shock/vibration-resistant mechanical assembly, optimized for harsh factory vibration and static-prone environments. This 5.4-inch wide landscape negative FSTN display (black background, white dots) adopts full metal shielding frame, standard industrial temperature range of 0℃~+50℃, without integrated touch panel and compatible with external 4-wire resistive touch overlay. Widely used for legacy injection molding machine controllers, textile & printing machinery HMI, laboratory analytical instruments, industrial testing equipment and premium maintenance replacement for obsolete monochrome industrial display modules.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Full Part Number |
DMF-50773NF-FW-AIE-AJN |
| Manufacturer |
Optrex (Kyocera Display, Japan) |
| Screen Diagonal |
5.4 inch, landscape wide screen, 17:9 aspect ratio |
| Native Dot Resolution |
240(H) × 128(V) monochrome graphic dots |
| Display Technology |
FSTN-LCD, Negative mode (Black background / white dot), Transmissive |
| Dot Pitch |
0.50 mm (H) × 0.50 mm (V) |
| Active Area (AA) |
119.97 mm (W) × 63.97 mm (H) |
| View Window Opening Area |
126.0 mm (W) × 70.0 mm (H) |
| Overall Outline Dimension |
170.0 mm (W) × 105.0 mm (H) × 14.0 mm (Max Thickness) |
| Typical Brightness |
100 cd/m² |
| Typical Contrast Ratio |
10:1 |
| Optimal Viewing Direction |
6 o'clock |
| Viewing Angle (L/R/U/D, CR≥2) |
50° / 45° / 35° / 50° |
| Response Time (Tr / Td Typical) |
250 ms / 230 ms |
| Refresh Frequency |
70 Hz standard |
| Built-in Controller IC |
Toshiba T6963C graphic controller integrated on AIE anti-interference PCB |
| Backlight System |
Single edge CCFL lamp, service life ≥15,000 hours, external inverter required |
| Signal Interface |
8-bit parallel MCU bus, 20-pin gold finger connector |
| Logic Supply Voltage VDD |
4.5V ~ 5.5V DC (Typical 5.0V industrial standard) |
| LCD Driving Voltage |
VDD-VEE = 18.5V typical |
| Typical Operating Current |
IDD=9mA, IEE=2.9mA |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| PCB & Mechanical Upgrade Feature |
AIE: enhanced ESD & EMI suppression circuit; AJN: reinforced solder joints & shock-resistant assembly, anti-vibration reinforcement |
| Housing Structure |
Full metal shielding frame, dual-layer EMI shielding |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Net Weight |
Max 250 g |
| Version Interchangeability |
Fully pin-to-pin & mechanically interchangeable with DMF-50773NF-FW / ALE / ACE-AI base variants |
| Compliance Standard |
Industrial grade, RoHS lead-free compliant |
| Production Status |
Discontinued original mass production, A-grade surplus stock for equipment maintenance retrofit |
| Compatible Variants |
DMF-50773NF-FW, DMF-50773NF-FW-ALE, DMF-50773NF-FW-ACE-AI, DMF-50773NB-FW |
