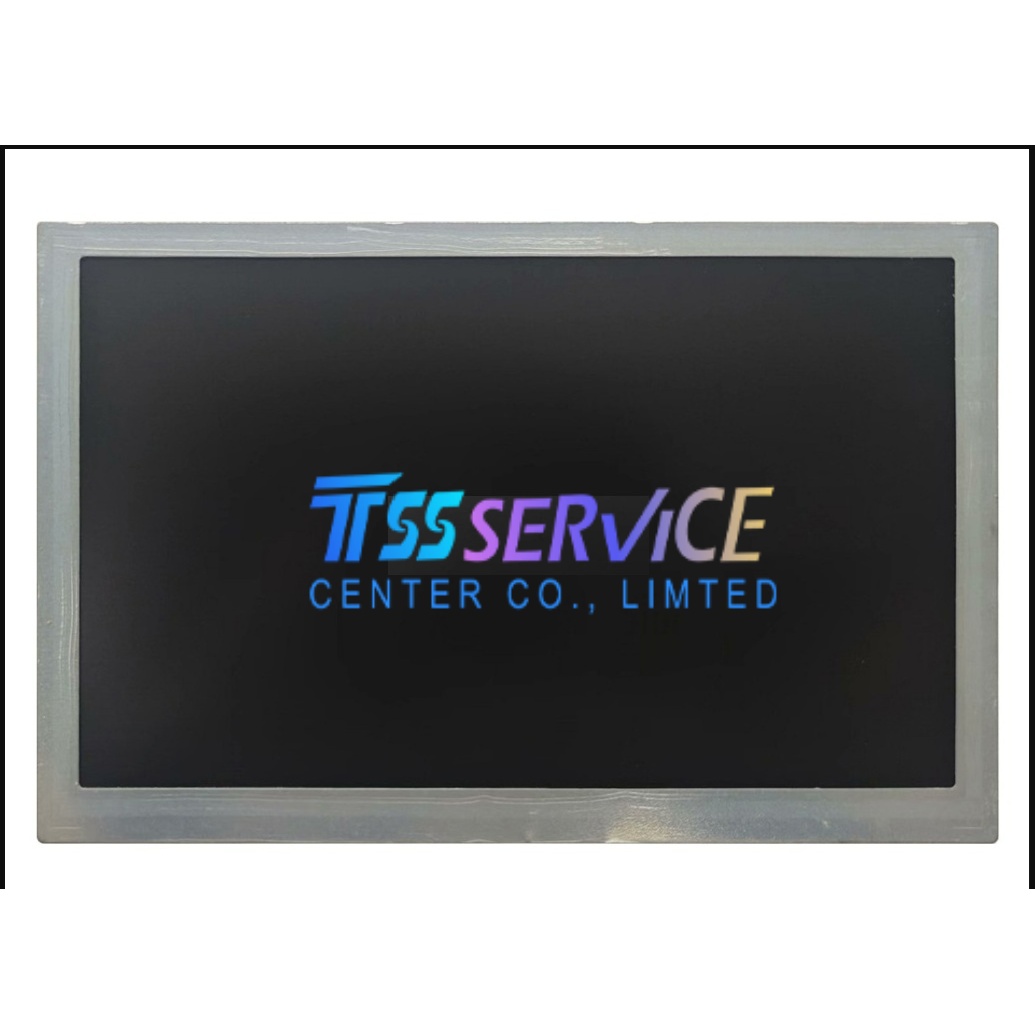

Mitsubishi NEW 7.0 inch LCD Display Panel AA070ME13 for Industrial
| Parameter |
Specification |
| Model Number |
AA070ME13 |
| Brand |
Mitsubishi |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Display Size |
7.0 inch |
| Resolution |
800 × 480 (RGB), WVGA |
| Display Area |
152.40 × 91.44 mm |
| Outline Dimensions |
169.8 × 109.7 mm |
| Brightness |
1000 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) [Transmissive] |
| Viewing Angle |
80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Response Time |
4/12 (Typ.)(Tr/Td) ms |
| Color Support |
262K/16.7M colors (6-bit /6-bit + Hi-FRC) |
| Backlight Type |
WLED, Side Type (Bottom), 100K Hours |
| Interface |
LVDS (1 ch, 6/8-bit) |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp. |
-30 ~ 80 °C |
| Storage Temp. |
-30 ~ 80 °C |
This high-brightness industrial display is suitable for environments where visibility is critical, particularly in extreme temperature conditions.
-
Industrial Control Systems:
- Used in CNC machines (e.g., FANUC, Siemens, Mitsubishi, KND, Guangzhou CNC) for operator interfaces and programming.
- HMIs (Human-Machine Interfaces) in factory automation and process control.
-
Medical Instruments:
- Portable diagnostic devices and patient monitoring terminals.
-
Automotive & Navigation:
- Car navigation systems and in-vehicle infotainment (IVI) displays.
- Dashboard instrumentation for commercial vehicles.
-
Outdoor & Harsh Environments:
- Outdoor digital signage and public information kiosks.
- Industrial equipment requiring operation in high-temperature conditions.
-
Handheld & Field Devices:
- Handheld PDAs and ruggedized data loggers.
- Field service tools and portable barcode scanners.
-
Self-service & Consumer Electronics:
- ATM machines and point-of-sale (POS) terminals.
- Digital signage kiosks and receipt printers.
