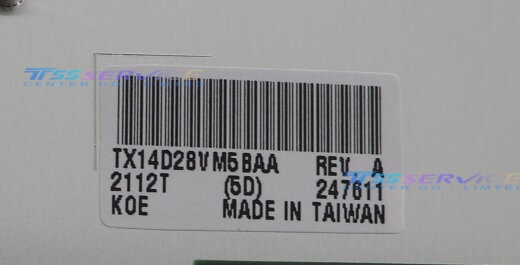

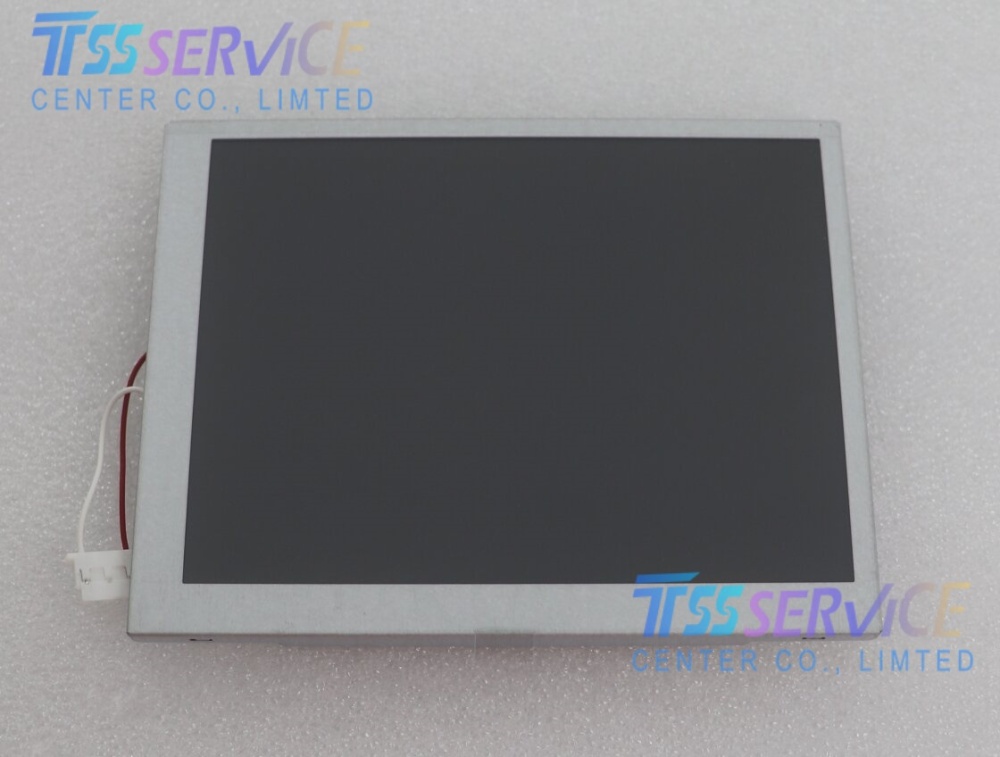

TX14D28VM5BAA is a 5.7-inch TFT-LCD (Thin Film Transistor Liquid Crystal Display) panel produced by KOE . It is a high-quality industrial-grade display module designed for embedded systems, portable devices, and applications requiring a compact yet reliable color display.
| Parameter | Description |
|---|---|
| Model | TX14D28VM5BAA |
| Screen Size | 5.7 inches |
| Active Area | ~115.2 mm × 86.4 mm |
| Resolution | 640 × 480 pixels (VGA standard) |
| Pixel Configuration | RGB vertical stripe |
| Display Type | a-Si TFT LCD |
| Backlight | LED |
| Interface |
|
| Brightness (Typical) | 800 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Surface | Anti-glare treatment |
| Operating Temperature | -30 ~ 80 °C |
The TX14D28VM5BAA is specifically designed for professional and industrial use cases requiring VGA resolution and extreme environmental tolerance:
Human Machine Interfaces (HMIs): PLC control terminals, SCADA systems, factory automation interfaces
Medical Equipment: Patient monitoring systems, diagnostic devices
Marine Electronics: Navigation displays, fish finders, radar systems
Outdoor Kiosks: Ticketing machines, information terminals, digital signage
Industrial Process Control: Manufacturing equipment monitoring, data acquisition systems
Gaming Machines: Slot machines, gaming terminals
Transportation: In-vehicle displays, railway control systems
Point-of-Sale (POS): Retail terminals requiring higher resolution display
