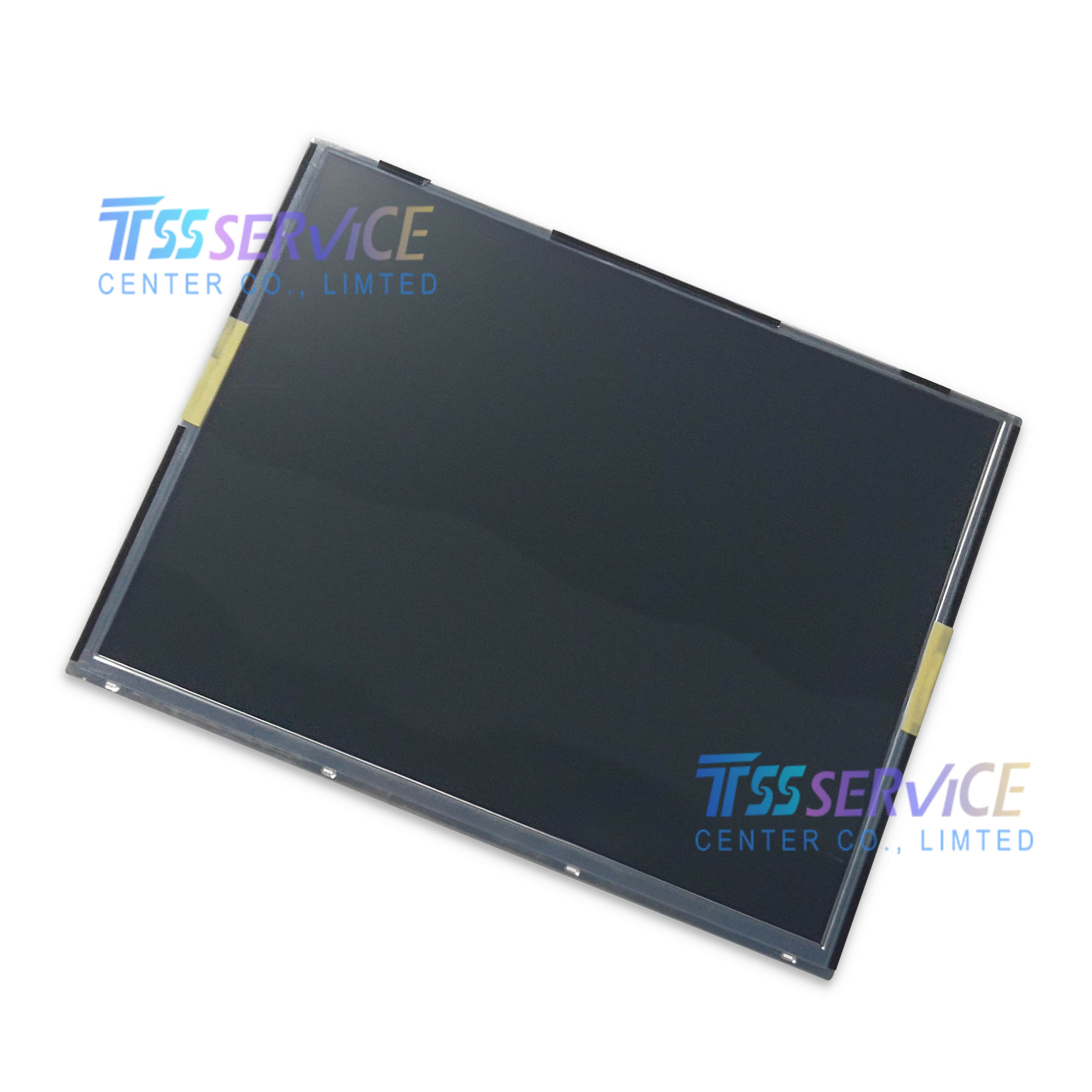

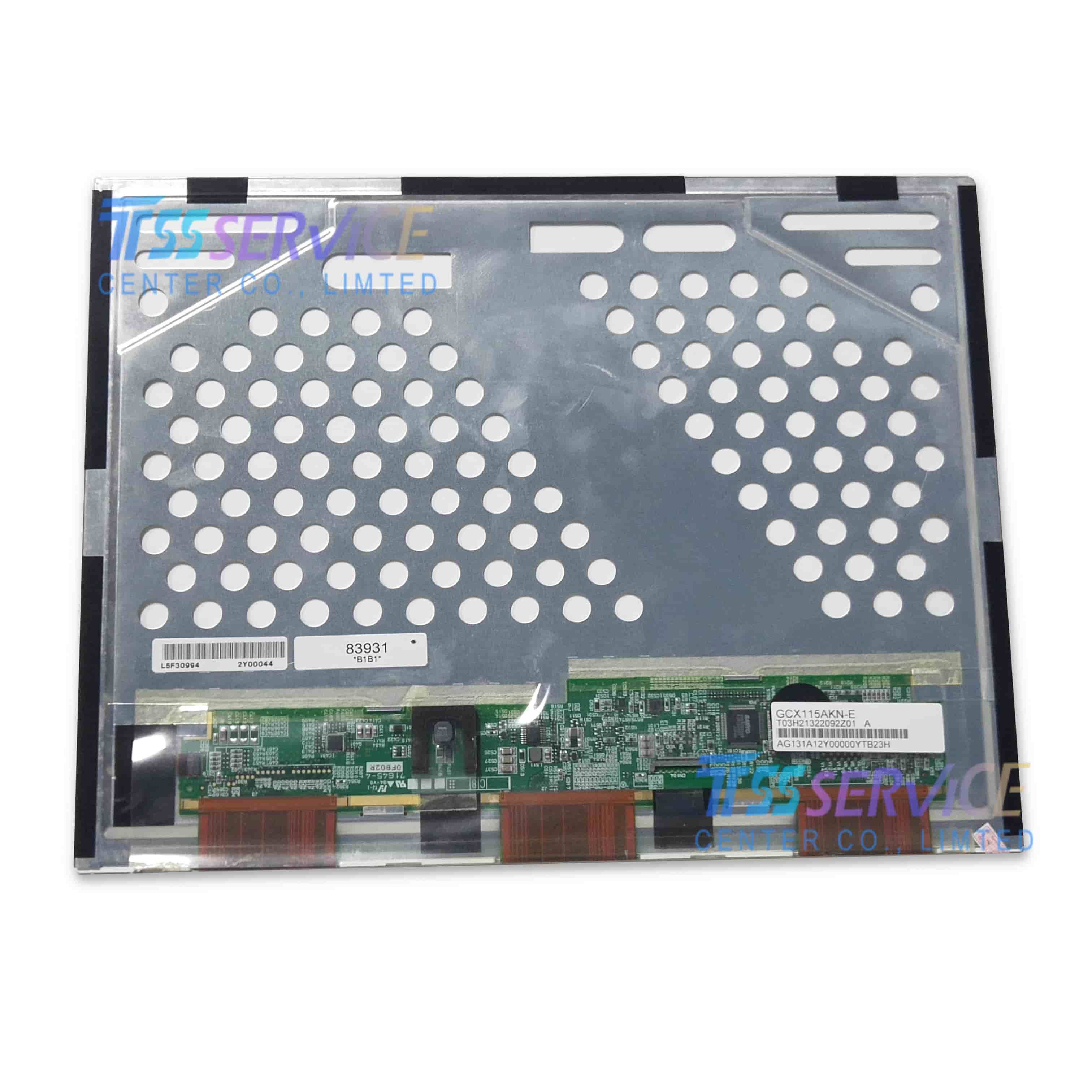

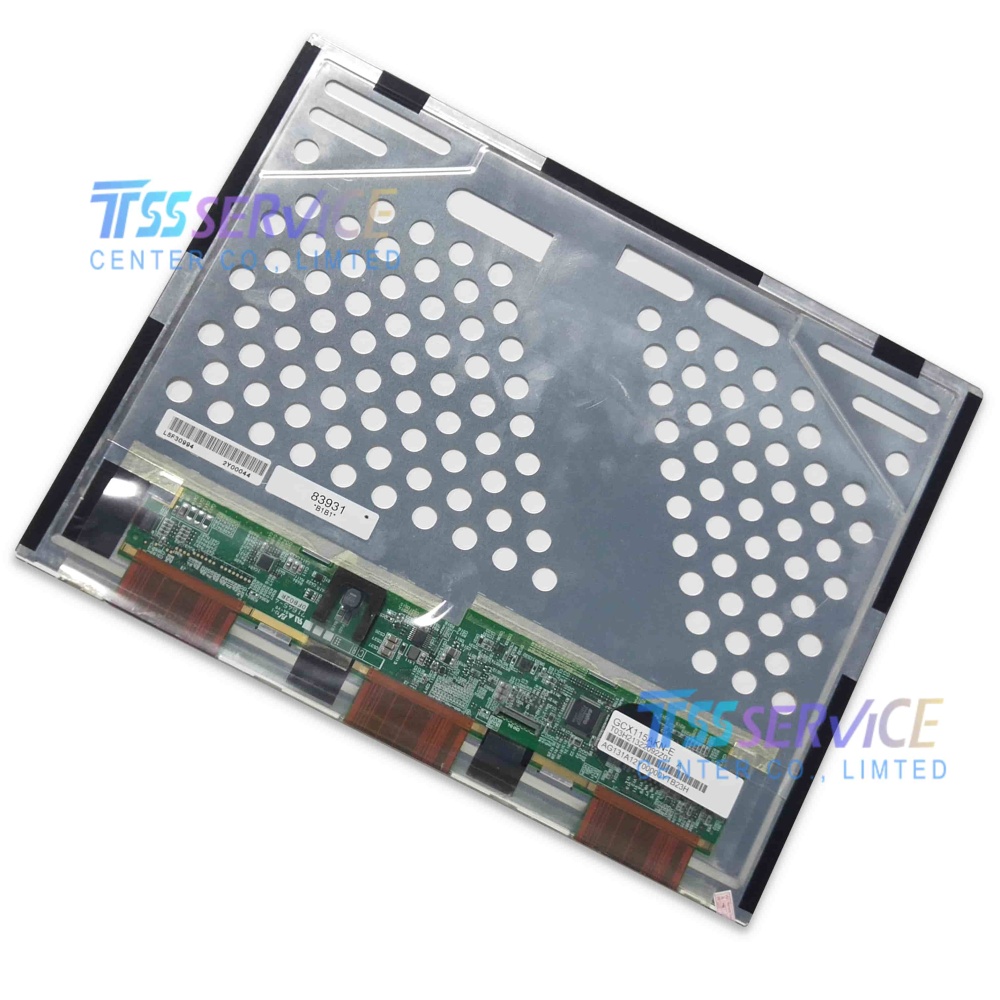

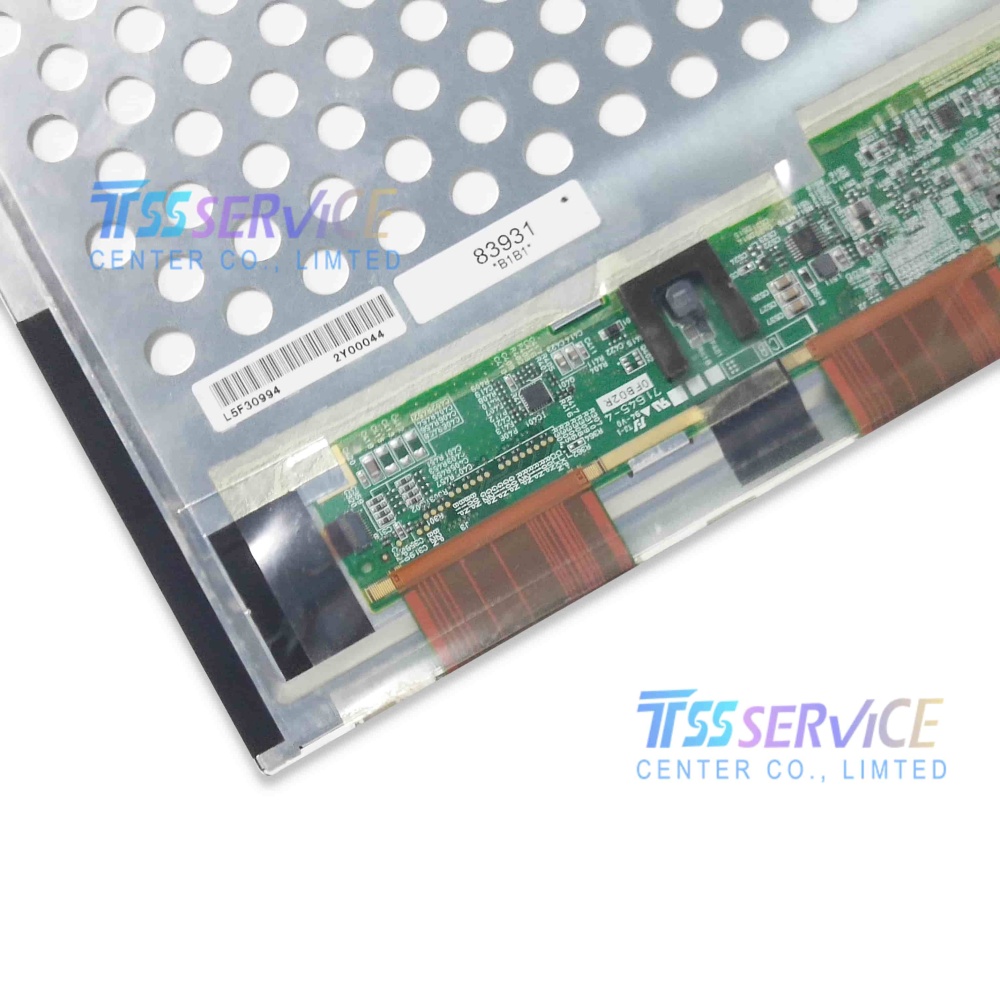

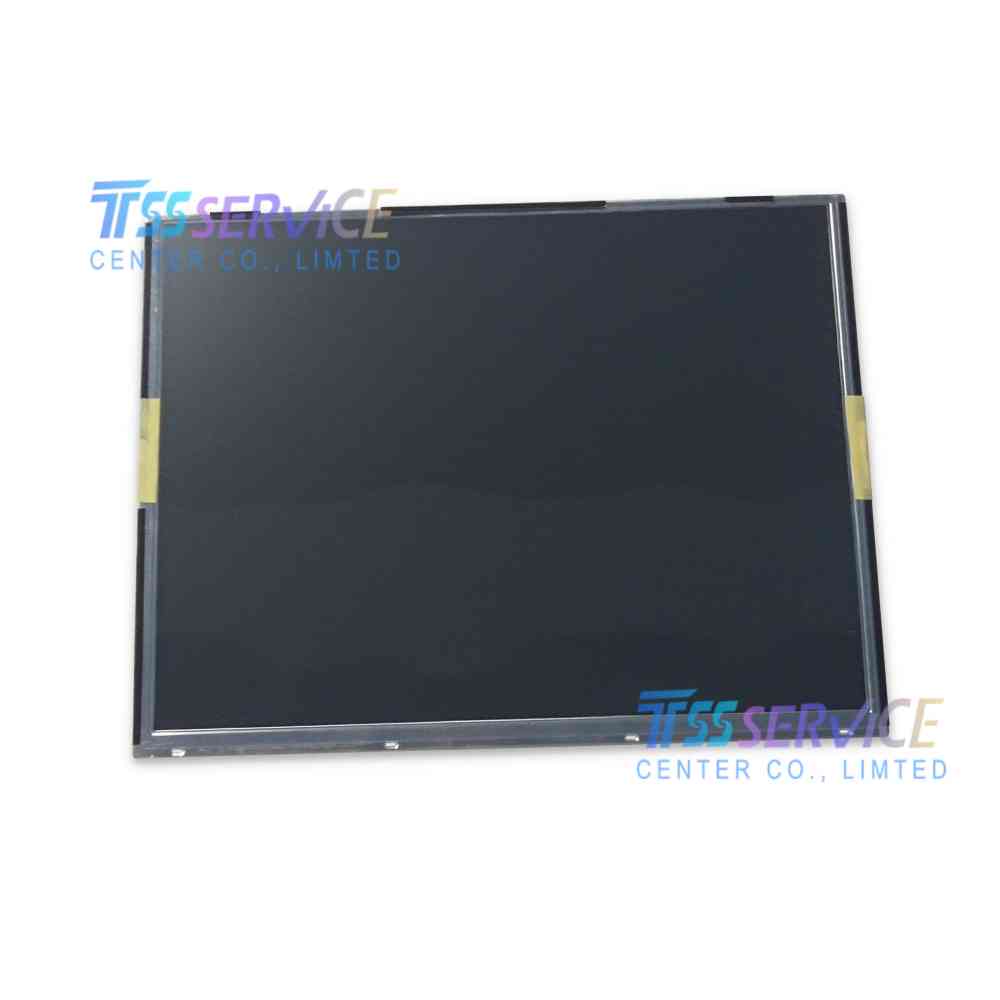

GCX115AKN-E | Sanyo 13.1” XGA TFT
GCX115AKN-E is a 13.1-inch XGA (1024×768) a-Si TFT-LCD module by Sanyo, featuring 500 cd/m² high brightness, 1000:1 contrast ratio, wide viewing angle, WLED backlight, LVDS interface, and -20°C~+70°C wide temperature range for industrial HMI, medical, and rugged embedded display applications.
| Parameter Item |
Specification Details |
| Part Number |
GCX115AKN-E |
| Manufacturer |
Sanyo (三洋) |
| Display Size |
13.1 inch, landscape, 4:3 |
| Resolution |
1024×768 pixels (XGA), 96 PPI |
| Technology |
a-Si TFT-LCD, TN, normally white, transmissive |
| Active Area |
264.96 × 198.72 mm |
| Outline Dimension |
285 × 215 × 12 mm |
| Pixel Pitch |
0.258 × 0.258 mm |
| Brightness |
500 cd/m² (typ.) |
| Contrast Ratio |
1000:1 (typ.) |
| Viewing Angle |
70°/70°/50°/60° (L/R/U/D, CR≥10) |
| Display Colors |
262K colors (6-bit) |
| Backlight |
WLED (7S2P), lifespan ≥ 50,000 hours, w/o driver |
| Interface |
LVDS (1 channel, 8-bit), 30-pin connector |
| Supply Voltage |
3.3 VDC (typ.) |
| Refresh Rate |
60 Hz |
| Response Time |
25 ms (typ., G-to-G) |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Touch Screen |
Without touch (customizable) |
| Surface Treatment |
Matte, anti-glare coating |
| Weight |
Approx. 1.2 kg |
| Certifications |
RoHS compliant |
| Status |
Active, mass production |
