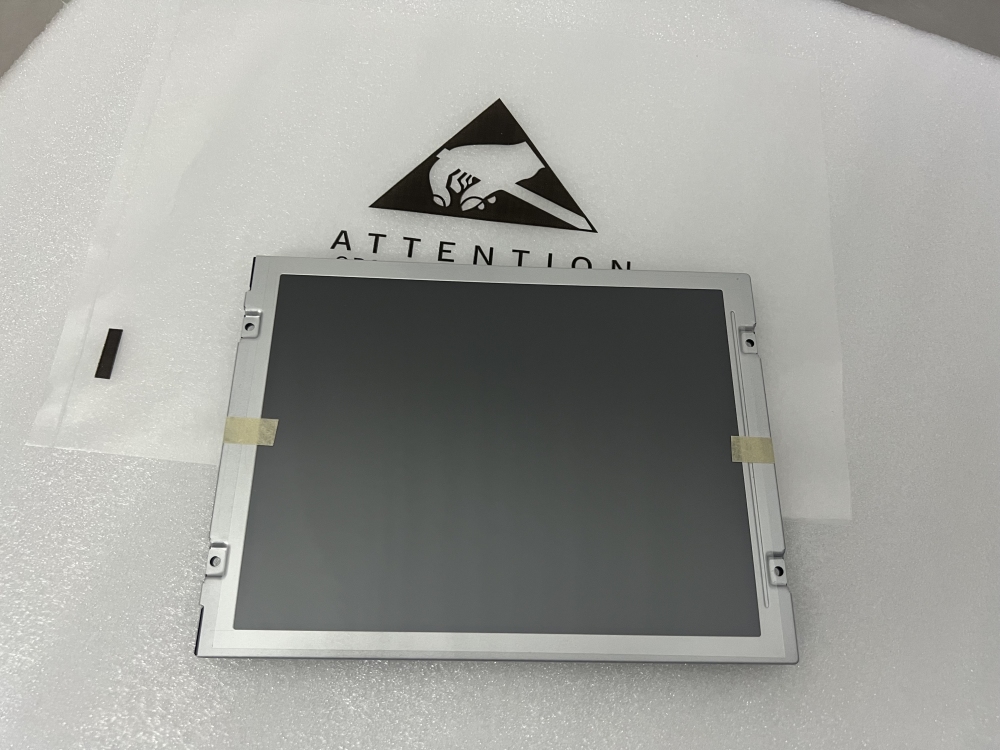

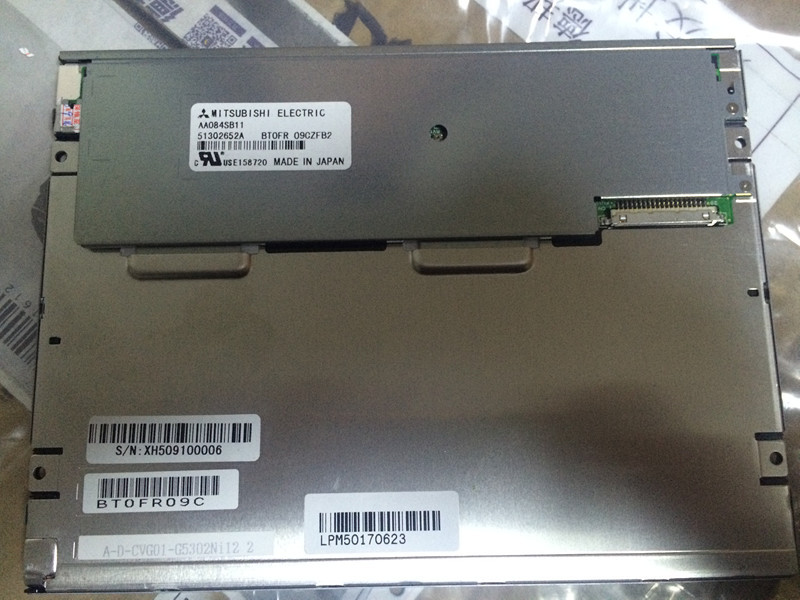

AA084SB11 8.4" 800×600 LCD Display Panel for Mitsubishi

Name: AA084SB11 8.4" 800×600 LCD Display Panel for Mitsubishi
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA084SB11
Price: 227 USD
Availability: InStock

SKU: AA084SB11

1，Condition: New，Grade A

2，Description: AA084SB11 8.4 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$230.00~~ $227.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

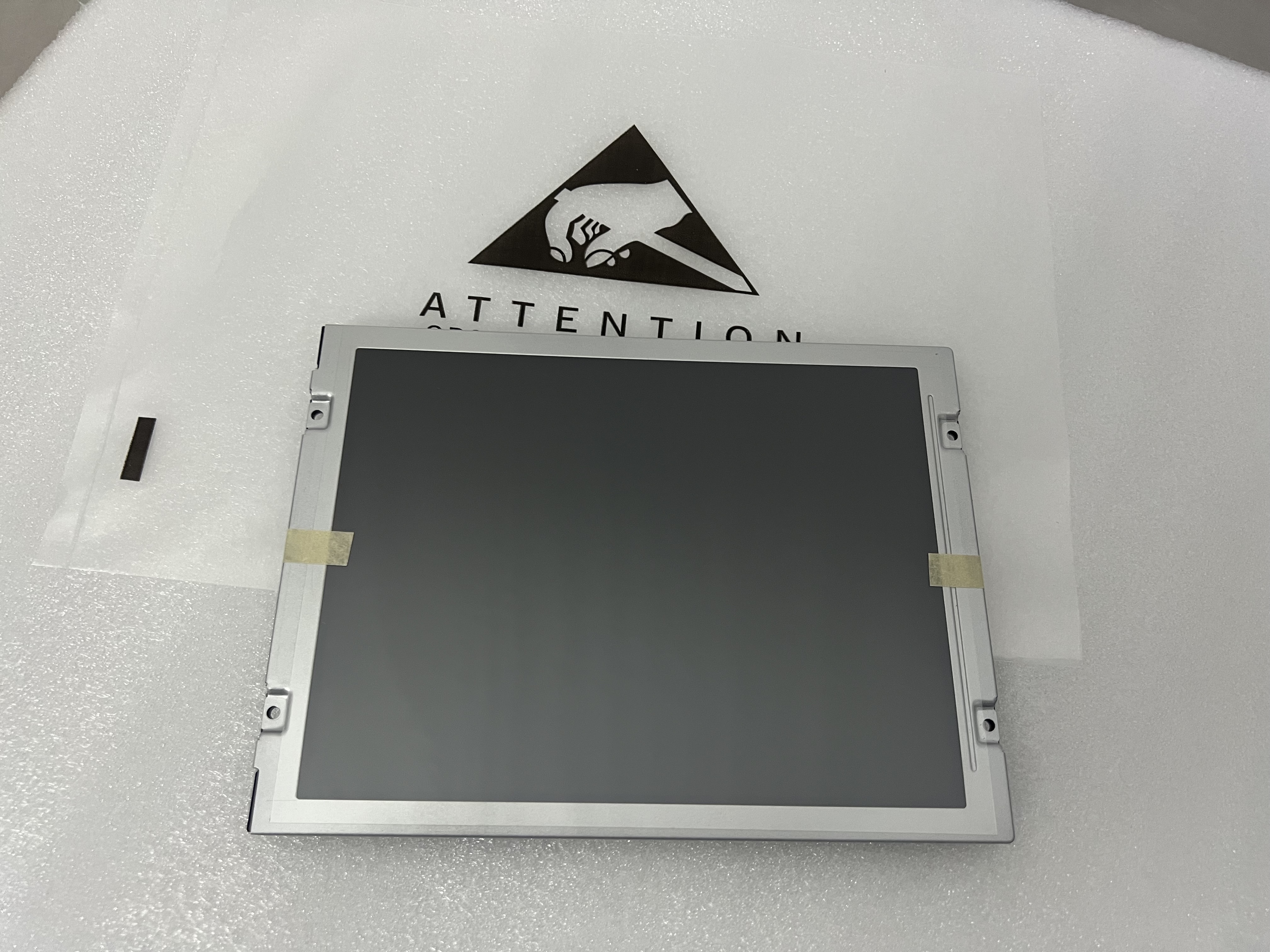

The Mitsubishi AA084SB11 is an 8.4-inch a-Si TFT-LCD module designed for industrial and outdoor applications requiring ultra-high brightness, extended temperature operation, and exceptional reliability. With a resolution of 800×600 (SVGA) and a pixel density of 119 PPI, this display delivers sharp, clear visuals suitable for demanding human-machine interface (HMI) environments.

Parameter	Specification
Brand	Mitsubishi
Model P/N	AA084SB11
Diagonal Size	8.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	170.4(W)×127.8(H) mm
Bezel Opening	174.9(W)×132.2(H) mm
Outline (mm)	199.5(H)×149(V)×12(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	1200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/60 (Typ.)(CR≥10)
Response	4/12 ms (Typ.)(Tr/Td)
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40% NTSC
Backlight	2 strings WLED, 100K hours, No Driver
Mass	365g (Typ.)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Storage Temperature	-30 ~ 80 °C
Operating Temperature	-30 ~ 80 °C

Typical Applications

Outdoor Kiosks – Digital signage, ticketing machines, information terminals
Industrial Automation – HMI panels, factory control systems, PLC interfaces
Marine & Transportation – Navigation displays, in-vehicle systems, fleet management
Medical Devices – Patient monitoring, diagnostic equipment
Military & Defense – Ruggedized equipment requiring high reliability
Test & Measurement – Oscilloscopes, analyzers, laboratory instruments
Sunlight-Readable Displays – Any application requiring visibility in bright ambient light
