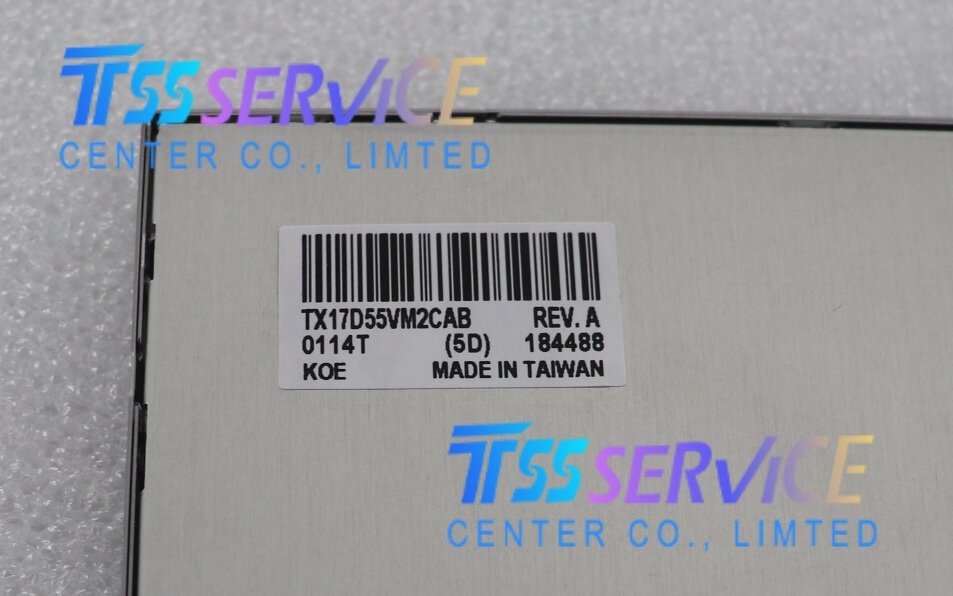

KOE/HITACHI/JDI NEW 5.7 inch LCD Display Panel TX17D55VM2CAB REV.A for Industrial
| Parameter Category |
Specification |
| Model |
TX17D55VM2CAB |
| Brand |
Hitachi (HITACHI) |
| Display Type |
a-Si TFT-LCD |
| Screen Size |
5.7 inch |
| Resolution |
320(RGB) × 240 (QVGA) |
| Display Color |
262K (6-bit) |
| Brightness |
100 cd/m² (Typical) |
| Display Mode |
TN, Normally White, Transmissive |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 |
| Viewing Area |
115.2 × 86.4 mm |
| Outline Dimensions |
131.6 × 103.8 mm |
| Weight |
45.0 g (Typical) |
| Backlight Type |
WLED, Side-type, Integrated LED Driver |
| Interface Type |
CMOS (1 channel, 6-bit), 40-pin Terminal |
| Supply Voltage (VDD) |
3.3V (Typical) |
| Operating Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-30°C ~ 80°C |
The TX17D55VM2CAB is a versatile TFT-LCD module designed for use in a wide range of embedded and industrial applications.
1. Industrial Control Systems
This module is frequently utilized in Industrial Equipment and Numerical Control (NC) systems. It serves as a reliable Human-Machine Interface (HMI) for machine tools and automation systems, compatible with major control brands such as FANUC, Siemens, Mitsubishi, KND, and GSK.
2. Medical Instruments
It is commonly integrated into various Medical Devices for displaying patient data and diagnostic information. Its robust design and wide operating temperature range ensure stable performance in clinical settings.
3. Portable and Consumer Electronics
The TX17D55VM2CAB is suitable for use in Handheld PDAs and Automotive Navigation Systems. Its compact size and clear display make it an ideal choice for portable devices requiring a durable and readable screen.
4. Self-service Terminals
It is also applied in ATM Systems and Self-service Kiosks, providing a clear and reliable visual interface for banking and retail services.
