Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|

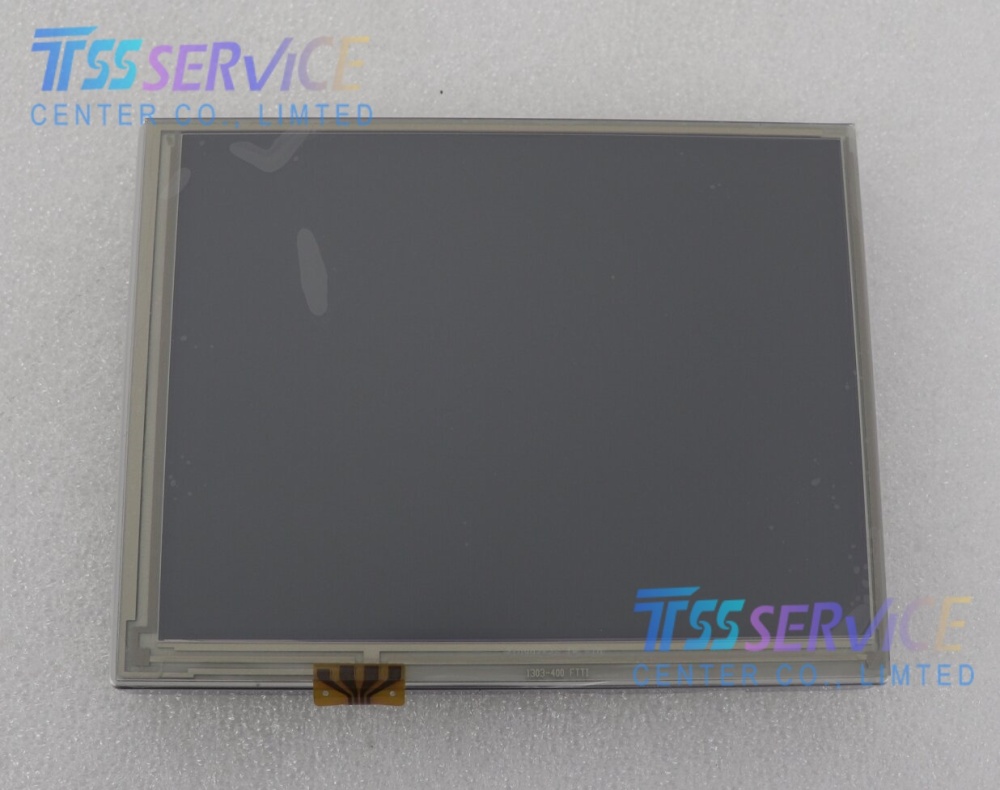

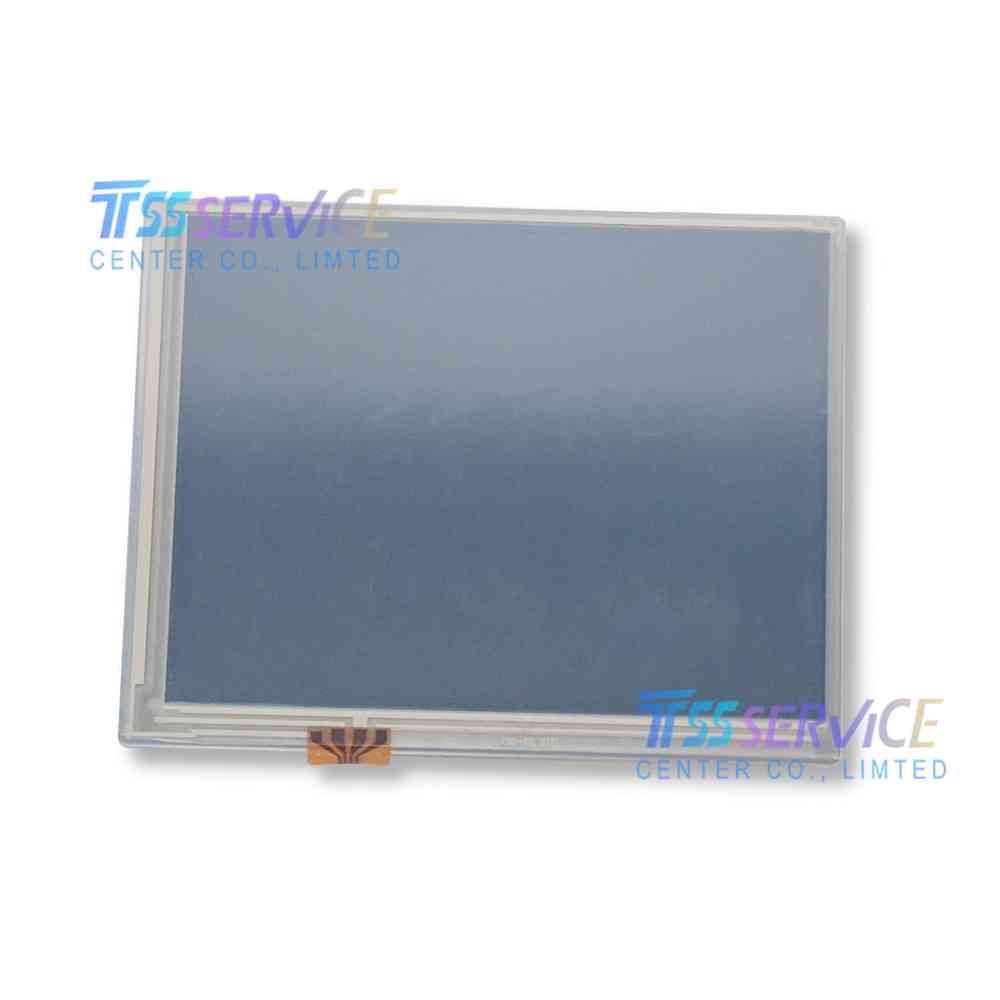

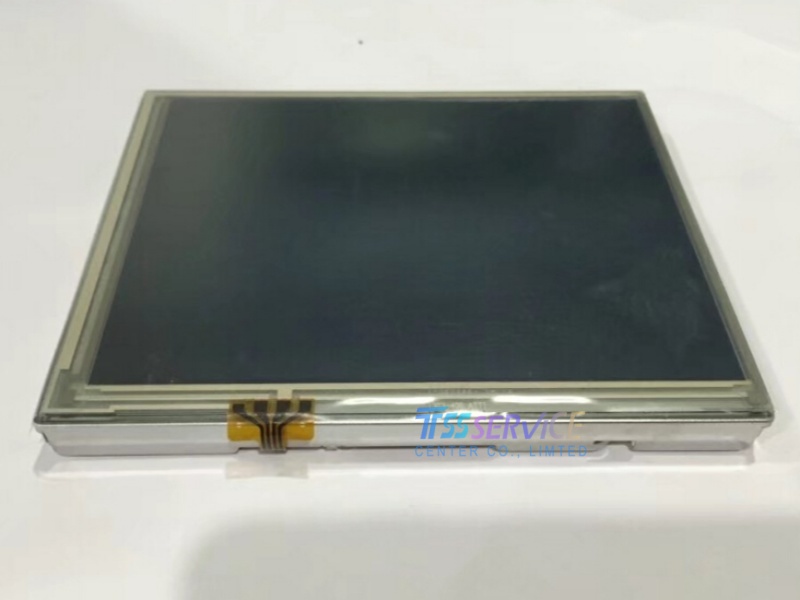

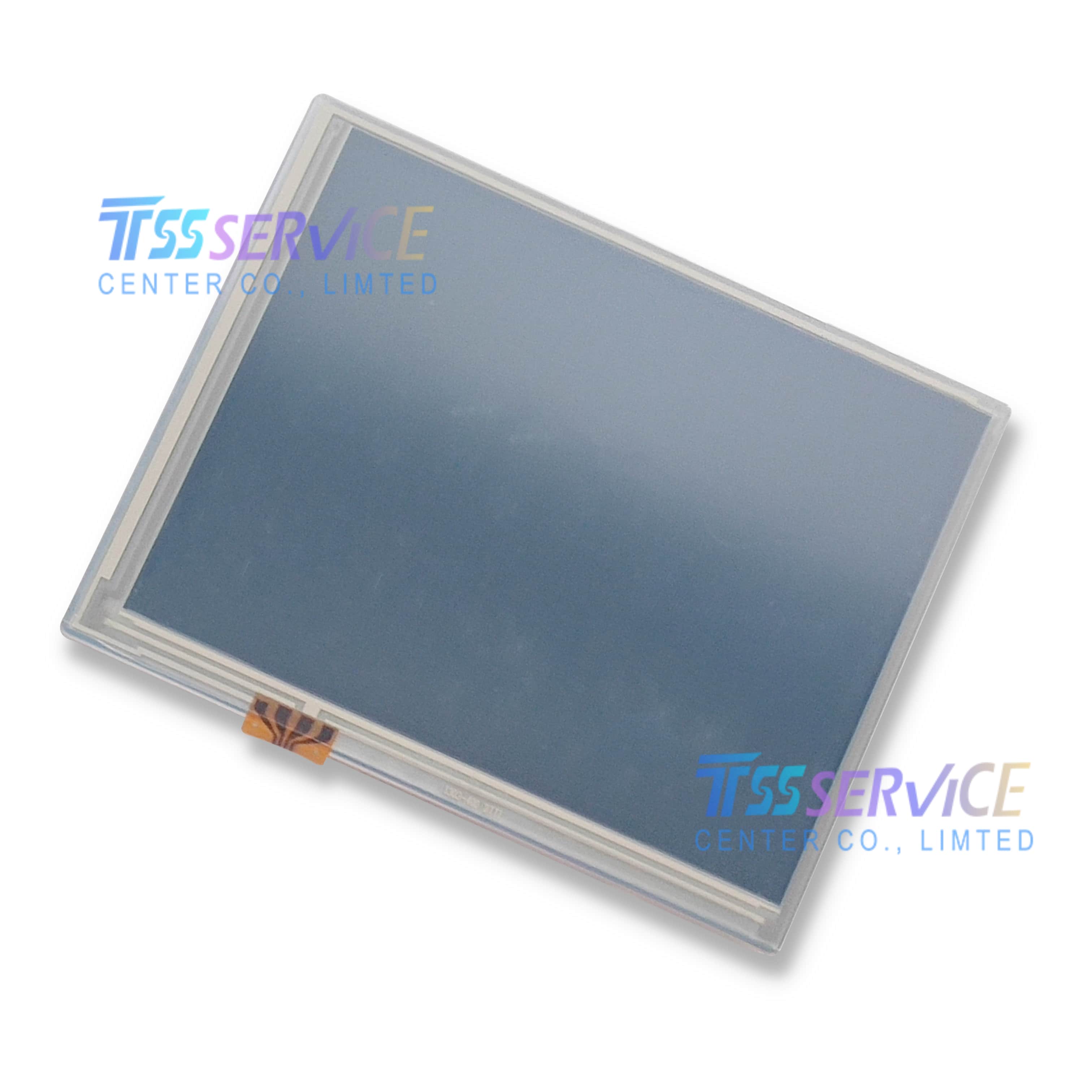

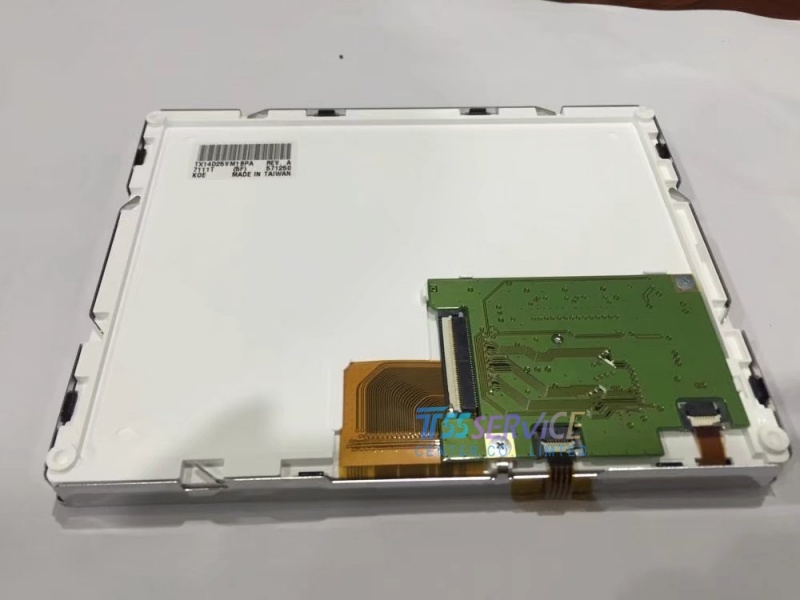

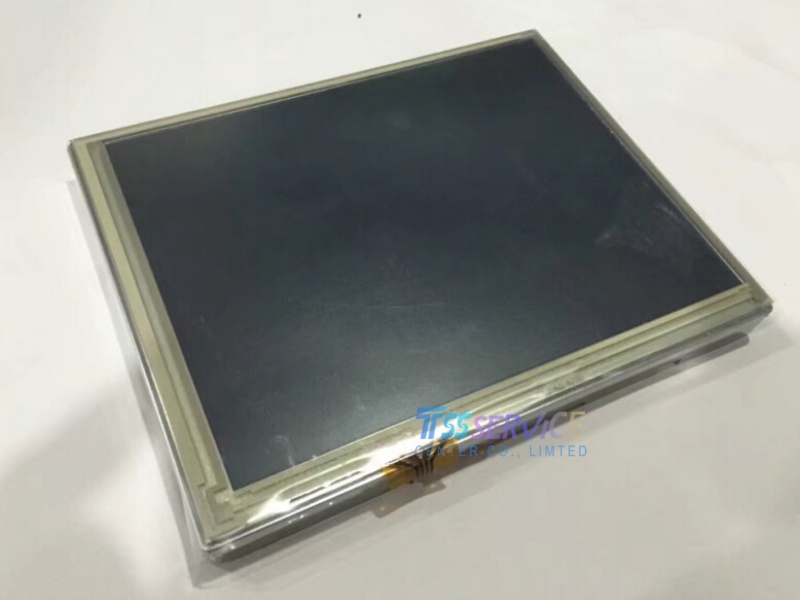

| Model Number | TX14D25VM1BPA (Rev. A) |
| Manufacturer | Hitachi / KOE |
| Display Type | a-Si TFT-LCD, Active Matrix |
| Screen Size | 5.7 inches (Diagonal) |
| Resolution | 320 (RGB) × 240 pixels [QVGA] |
| Pixel Pitch | 0.36 mm (H) × 0.36 mm (V) |
| Active Area | 115.2 mm (H) × 86.4 mm (V) |
| Outline Dimensions | Approx. 167.0 mm (W) × 109.0 mm (H) × 9.7 mm (D) |
| Display Mode | TN (Twisted Nematic), Transmissive, Normally White |
| Color Depth | 262K Colors (6-bit) |
| Brightness | 400 – 450 cd/m² (Typical, High Brightness) |
| Contrast Ratio | 400:1 (Typical) |
| Viewing Angle | Wide View (e.g., 70°/70°/70°/70° or 6 O'clock optimized) |
| Backlight Type | WLED (White LED) with Integrated Driver |
| Backlight Life | Typically 50,000+ hours (to 50% brightness) |
| Interface | 40-pin CMOS (TTL) |
| Supply Voltage | 3.3V (Logic & Backlight) |
| Operating Temperature | -30°C to +80°C (Wide Industrial Range) |
| Storage Temperature | -40°C to +85°C |
| Special Features | Reversible Display (Flip Function), RoHS Compliant, Low Power, Mercury-Free |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
