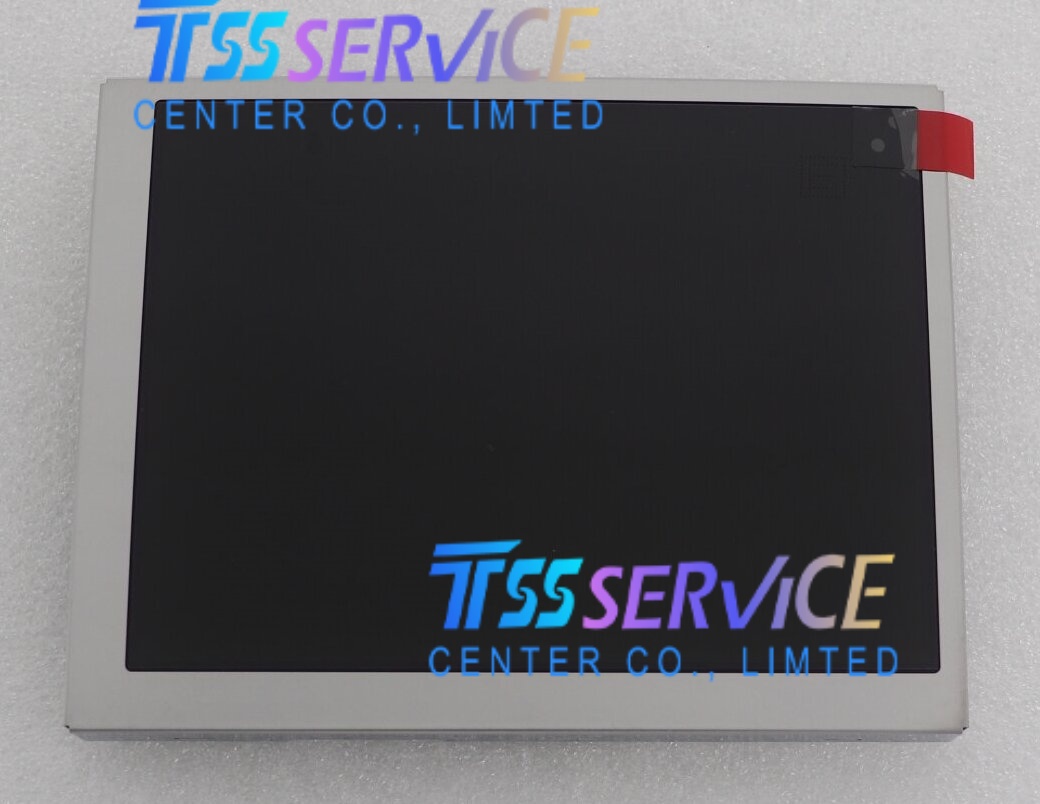

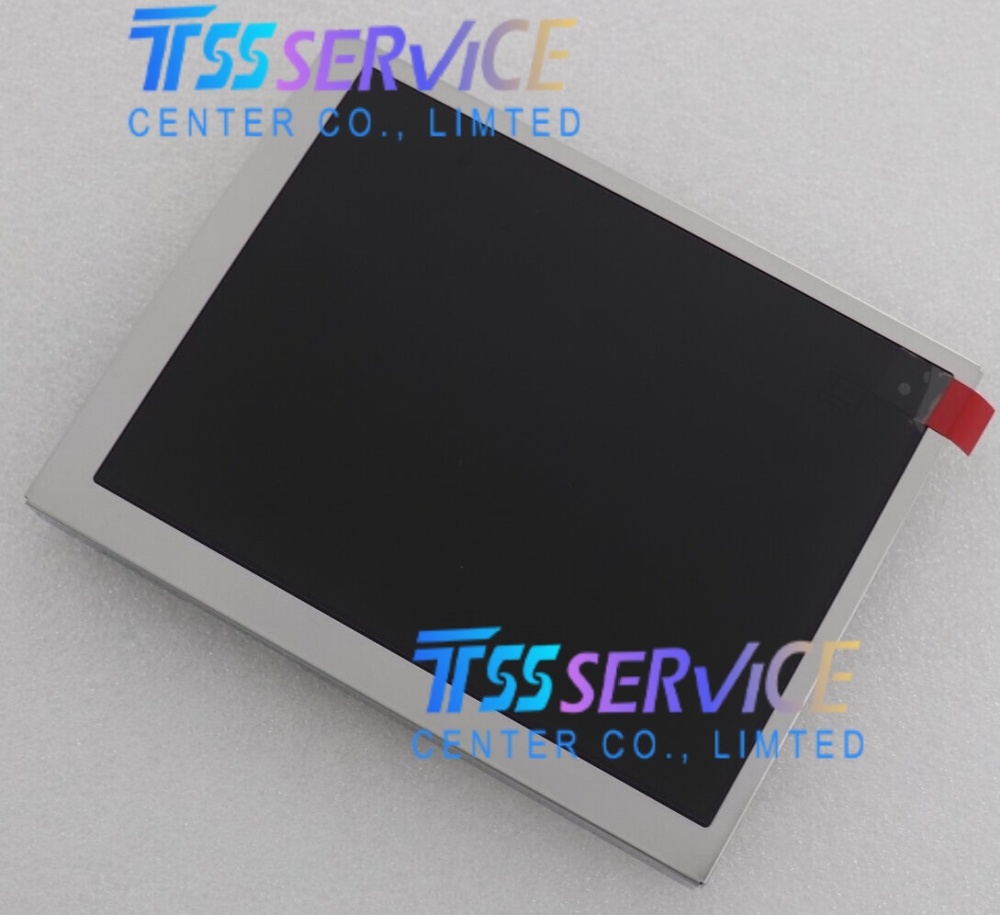

KOE/HITACHI/JDI NEW 5.7 inch LCD Display Panel TX14D12VM1CBB REV.A for Industrial
| Parameter Category |
Specification |
| Model |

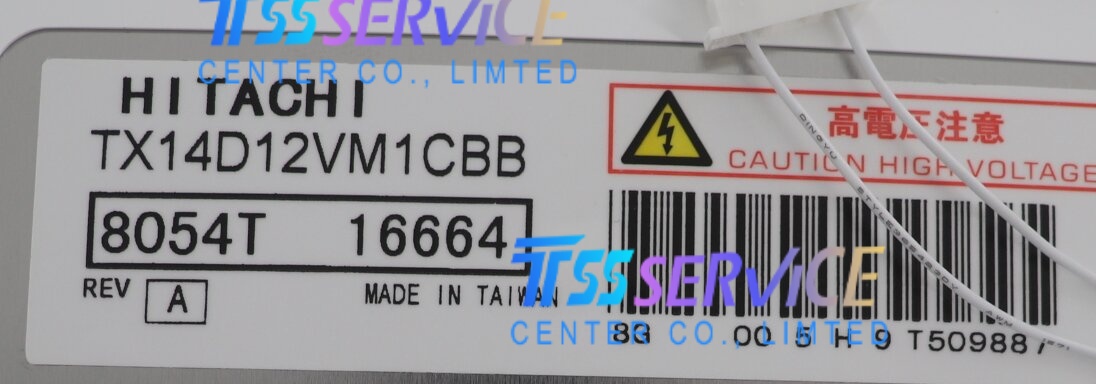

TX14D12VM1CBB |
| Brand |
Hitachi / KOE |
| Display Type |
TFT-LCD, Liquid Crystal Module |
| Screen Size |
5.7 inch |
| Resolution |
320 × 240 (VGA) |
| Display Color |
262K |
| Brightness |
600 cd/m² (Typical) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 |
| Viewing Area |
115.2(H) × 86.4(V) mm |
| Outline Dimensions |
131(H) × 102.2(V) mm |
| Backlight Type |
1pcs CCFL |
| Interface Type |

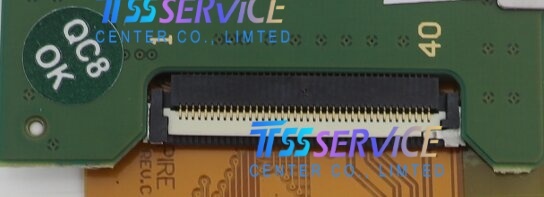

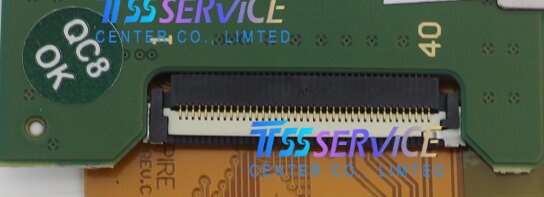

40 pins CMOS (1 ch, 6-bit), Terminal |
| Supply Voltage |
3.3V (Typical) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
The TX14D12VM1CBB is a high-brightness industrial LCD module designed for robust performance in demanding environments.
1. Industrial Automation & CNC Systems
This module is extensively used in Industrial Equipment, particularly as a display unit for Numerical Control (NC) systems. It is compatible with major control systems such as FANUC, Siemens, Mitsubishi, KND, and GSK, providing clear visual feedback for machine operations.
2. Medical Instruments
It is frequently integrated into Medical Devices and diagnostic equipment. The module's wide operating temperature range (-20 to 70 °C) ensures reliable performance in various clinical and laboratory settings.
3. Automotive & Monitoring
The display is suitable for Automotive Navigation systems and Monitoring Devices, offering high visibility and durability for mobile and stationary surveillance applications.
4. Self-service & Handheld Devices
It is also applied in Handheld PDAs and Self-service Terminals (such as ATMs and kiosks), serving as a durable interface for user interaction in public and industrial spaces.
