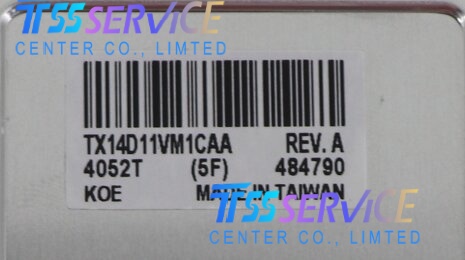

KOE/HITACHI/JDI NEW 5.7 inch LCD Display Panel TX14D11VM1CAA REV.A for Industrial
| Parameter Category |
Specification |
| Model |
TX14D11VM1CAA |
| Brand |
Hitachi (HITACHI) / KOE |
| Display Type |
a-Si TFT-LCD, Liquid Crystal Module |
| Screen Size |
5.7 inch |
| Resolution |
320(RGB) × 240 (QVGA) |
| Display Color |
262K (6-bit) |
| Brightness |
280 cd/m² (Typical) |
| Contrast Ratio |
350:1 (Typical) |
| Display Mode |
TN, Normally White, Transmissive |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 |
| Viewing Area |
115.2 × 86.4 mm |
| Outline Dimensions |
167(H) × 109(V) mm |
| Weight |
220 g (Typical) |
| Backlight Type |
CCFL (1 piece), No Driver |
| Interface Type |

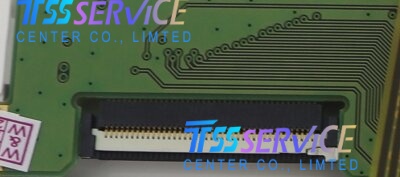

40-pin CMOS (1 channel, 6-bit), Terminal |
| Supply Voltage (VDD) |
3.3V (Typical) |
| Operating Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-30°C ~ 80°C |
| Touch Panel |
4-wire Resistive Touch Screen |
| Surface Treatment |
Haze (Anti-glare) |

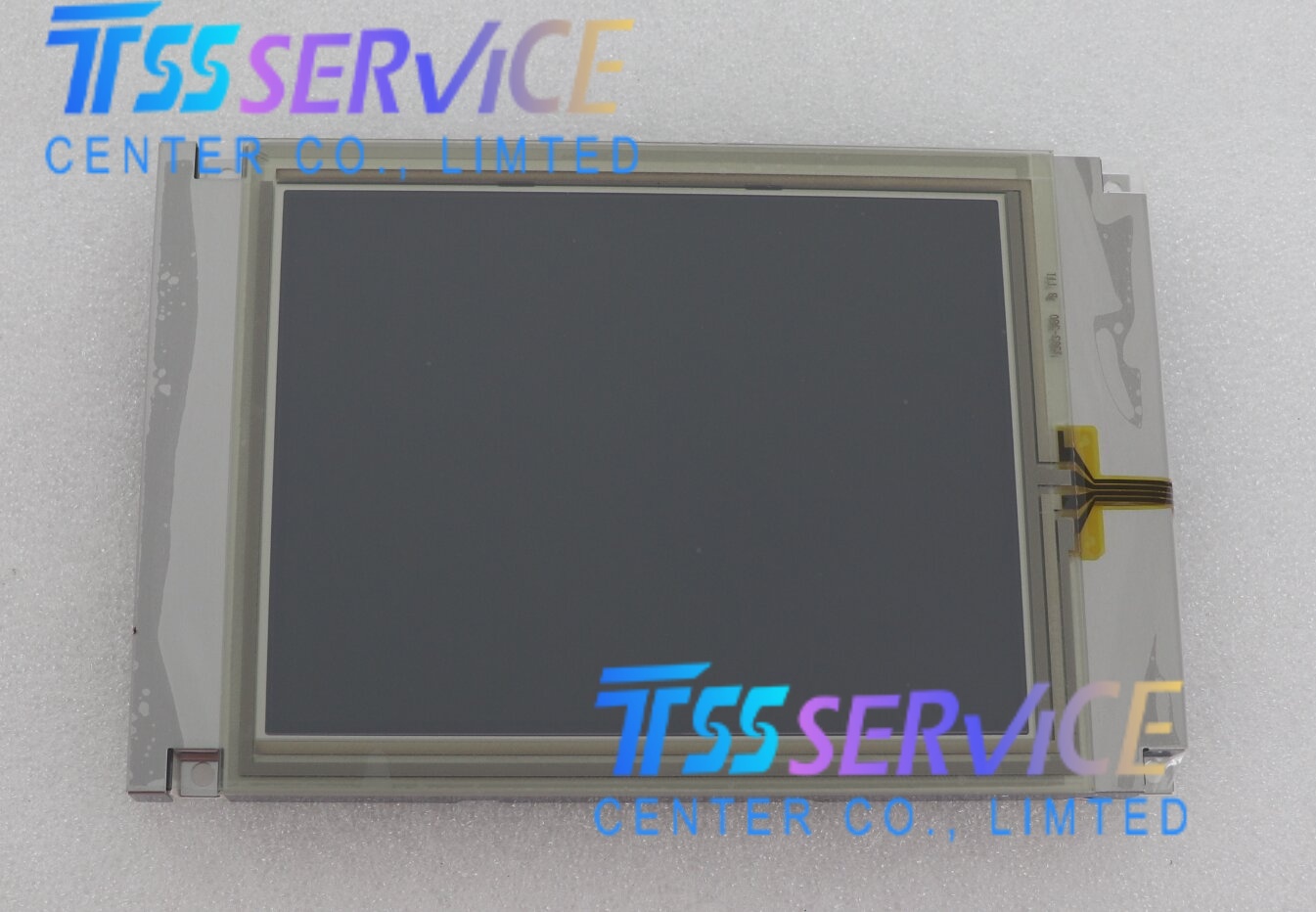

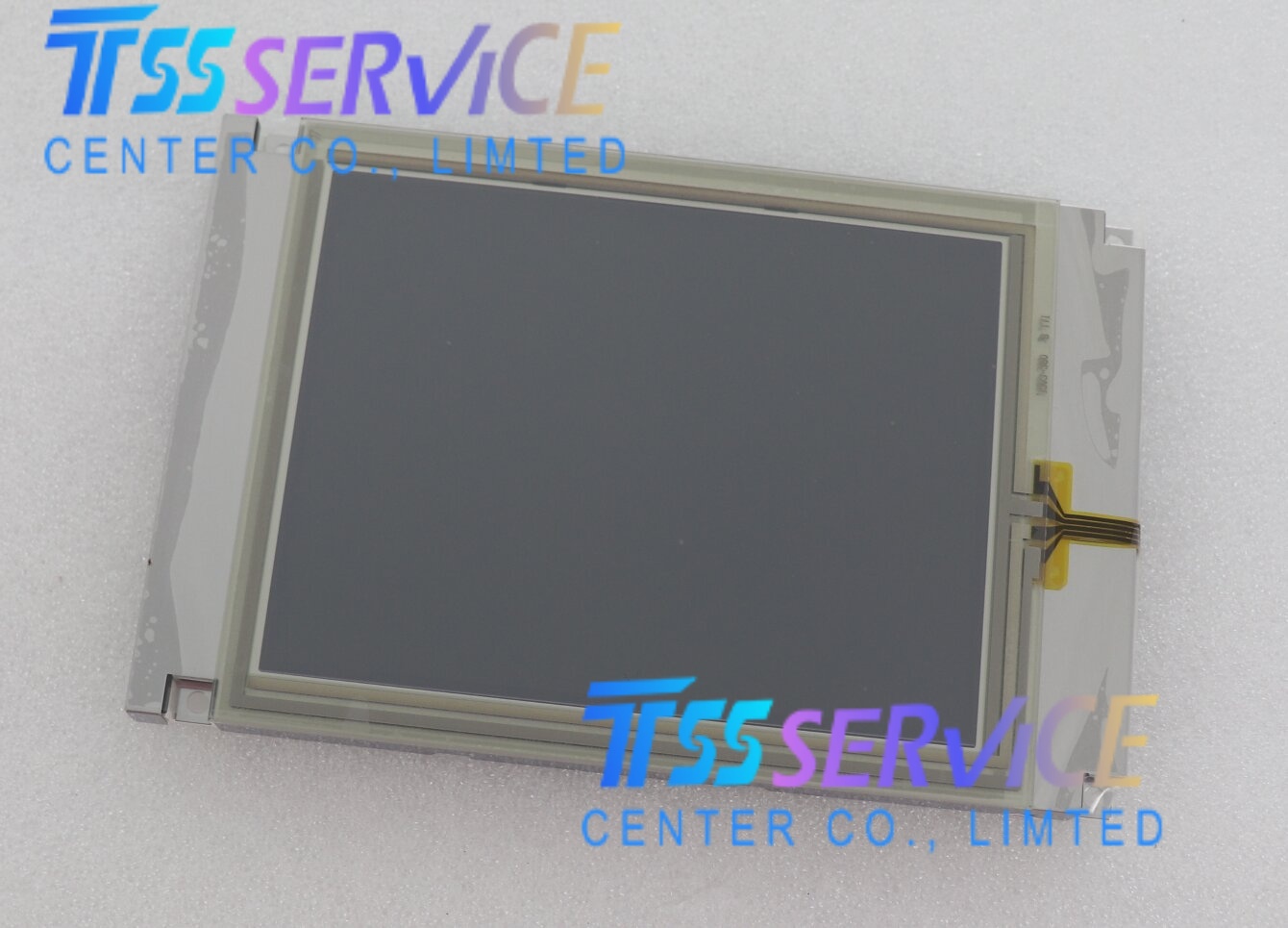

The TX14D11VM1CAA is a robust industrial LCD module featuring an integrated resistive touch screen, designed for high reliability in demanding environments.
1. Industrial Automation & CNC Systems
This module is extensively used in Industrial Equipment, serving as a critical Human-Machine Interface (HMI). It is specifically compatible with major Numerical Control (NC) systems, including FANUC, Siemens, Mitsubishi, KND, and GSK, providing operators with clear visual feedback and precise touch control for machinery.
2. Medical Instruments
It is frequently integrated into Medical Devices and diagnostic equipment. The module's wide operating temperature range (-20°C to 70°C) and durable resistive touch technology ensure stable performance and accurate input in clinical and laboratory settings.
3. Automotive & Monitoring Systems
The TX14D11VM1CAA is suitable for Automotive Navigation systems and Monitoring Devices, offering a reliable and interactive visual interface for mobile and stationary surveillance applications.
4. Self-service Terminals & Handheld Devices
It is also applied in Handheld PDAs and Self-service Kiosks (such as ATMs and vending machines), where the integrated touch screen provides a robust and user-friendly interface for public interaction.
KOE/HITACHI/JDI
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
