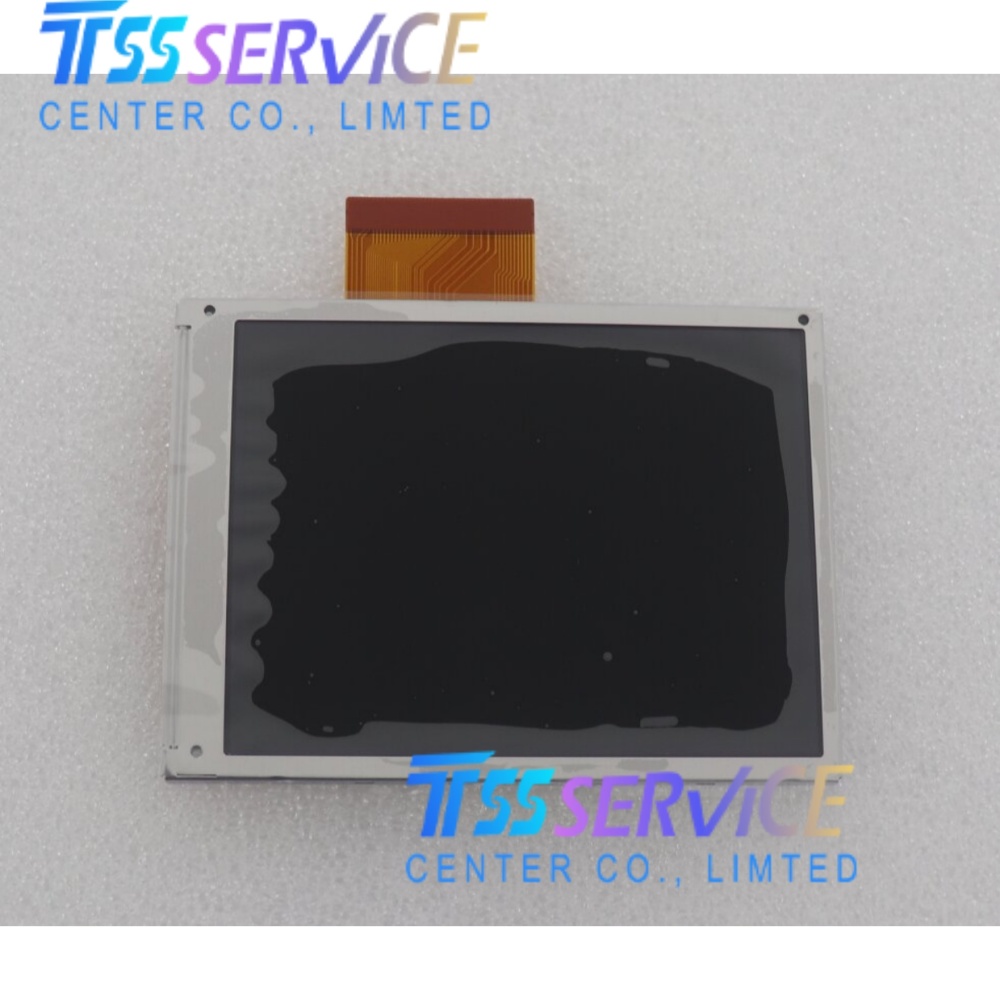

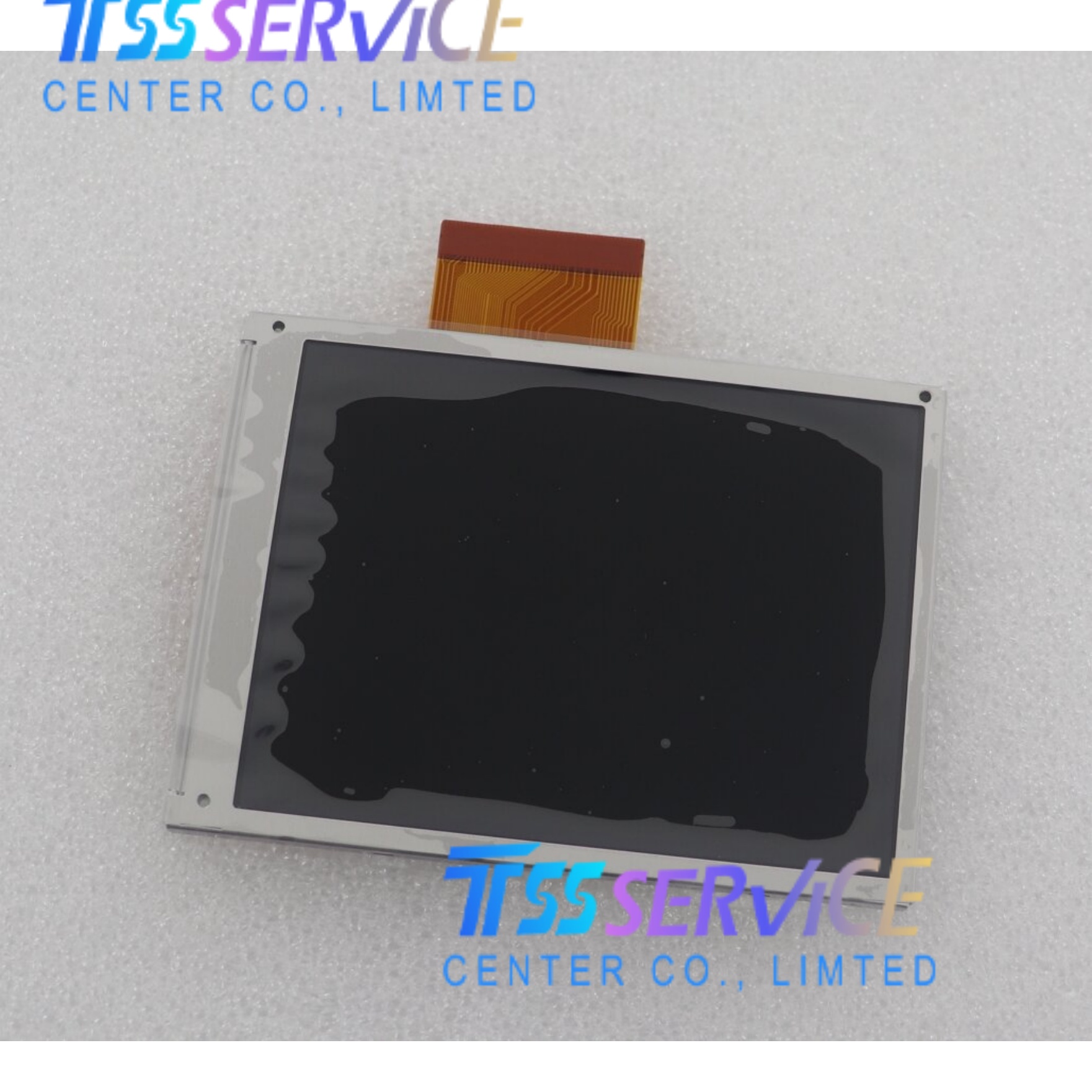

KOE/HITACHI/JDI NEW 3.5 inch LCD Display Panel l TX09D40VM3CBA Rev.A for Handheld & PDA
| Parameter |
Specification |
| Model Number |
TX09D40VM3CBA Rev.A |
| Manufacturer |
Hitachi / Displays (formerly Hitachi Displays) |
| Display Type |
a-Si TFT-LCD, Transflective |
| Screen Size |
5.7 inch (Diagonal) |
| Resolution |
320 x 240 pixels (QVGA) |
| Color Depth |
262K Colors (6-bit RGB) |
| Brightness (Typical) |
350 cd/m² (Transmissive mode) |
| Contrast Ratio |
300:1 (Typical) |
| Viewing Angle |
89/89/89/89 (12 o'clock direction) |
| Backlight |
CCFL (Cold Cathode Fluorescent Lamp) |
| Operating Temperature |
-30°C to +80°C |
| Storage Temperature |
-30°C to +85°C |
| Supply Voltage |
3.3V (Logic) / 5.0V (Backlight Inverter) |
| Interface |
TTL Parallel RGB (24-bit) |
| Dimensions |
144.0 x 104.6 x 10.5 mm (Typical) |
| Active Area |
115.2 x 86.4 mm |
The TX09D40VM3CBA is specifically engineered for industrial and outdoor applications where standard TFT displays would wash out in sunlight or fail due to temperature extremes.
1. Outdoor Industrial Equipment
- Field Service Terminals: Handheld devices used by utility workers for reading meters or managing infrastructure, requiring visibility in direct sunlight.
- Agricultural Machinery: Displays for tractors and harvesters that must withstand vibration and extreme heat/cold while remaining readable outdoors.
2. Transportation & Automotive
- Marine Navigation: GPS plotters and fish finders for boats, where the transflective technology is crucial for visibility on the water under bright sun.
- Avionics & Cockpits: Secondary displays in aircraft or heavy construction vehicles (excavators, cranes) that need to be readable without the backlight during the day to reduce glare.
3. Medical & Scientific Instruments
- Portable Diagnostic Devices: Mobile ultrasound or patient monitoring carts that are moved between rooms with varying lighting conditions.
- Analyzers: Laboratory equipment that requires stable color reproduction and long-term reliability.
4. Legacy Industrial Control
- Factory Automation (FA): Human Machine Interfaces (HMIs) for controlling robotic arms or assembly lines, particularly in older or ruggedized systems designed for long lifecycles.
KOE/HITACHI/JDI
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.

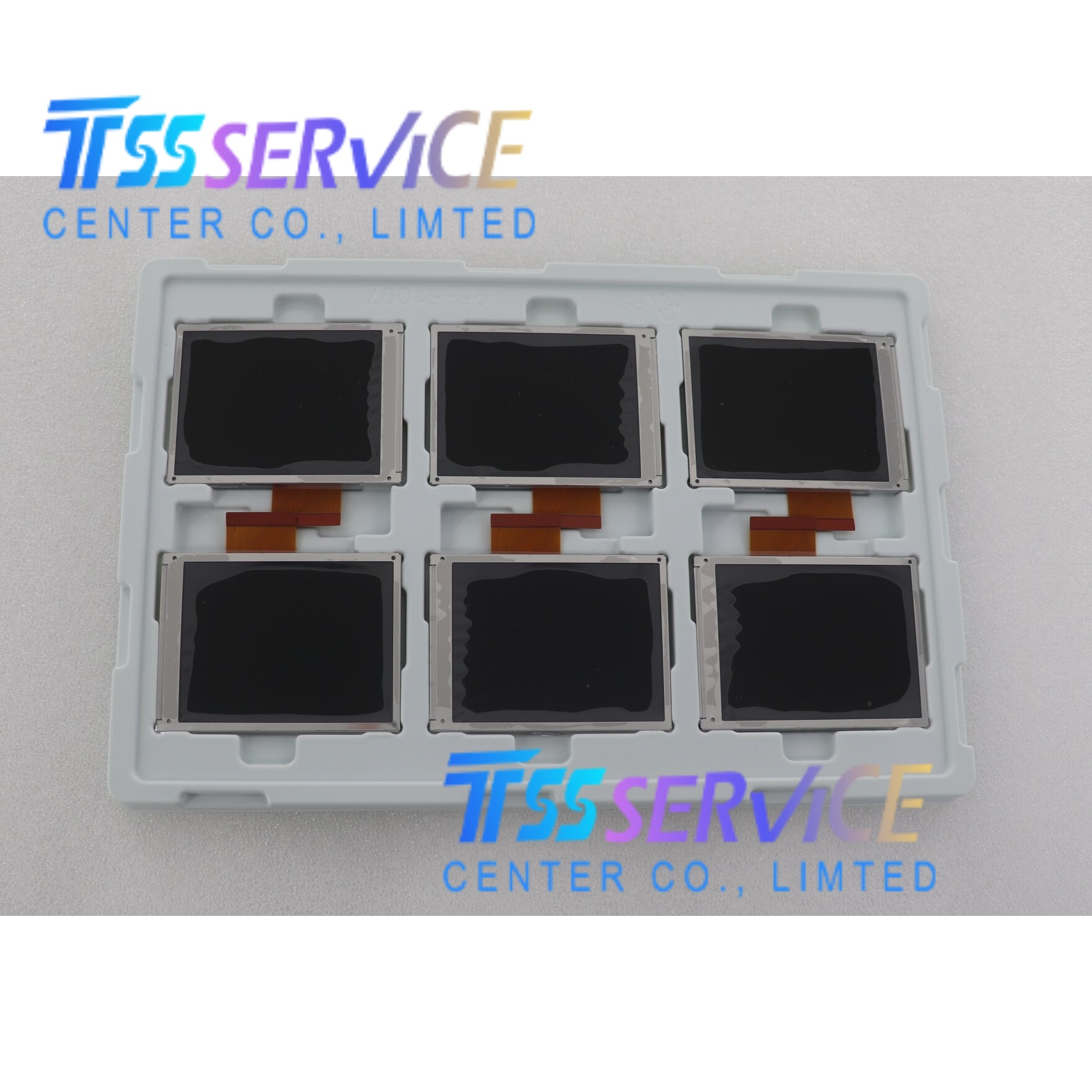

- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
