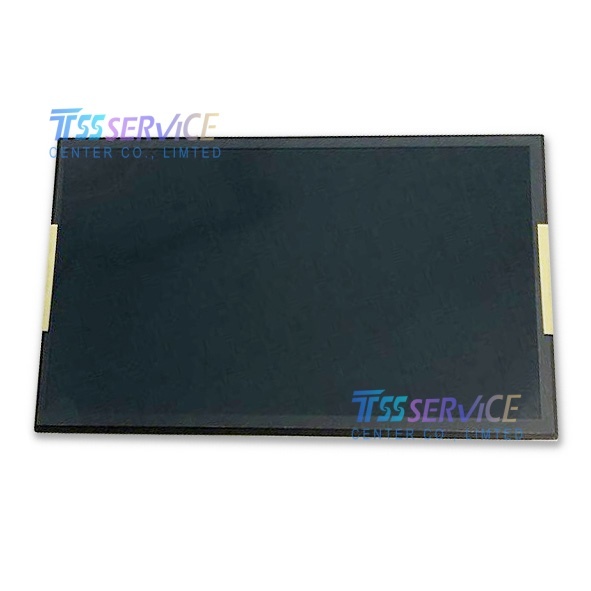

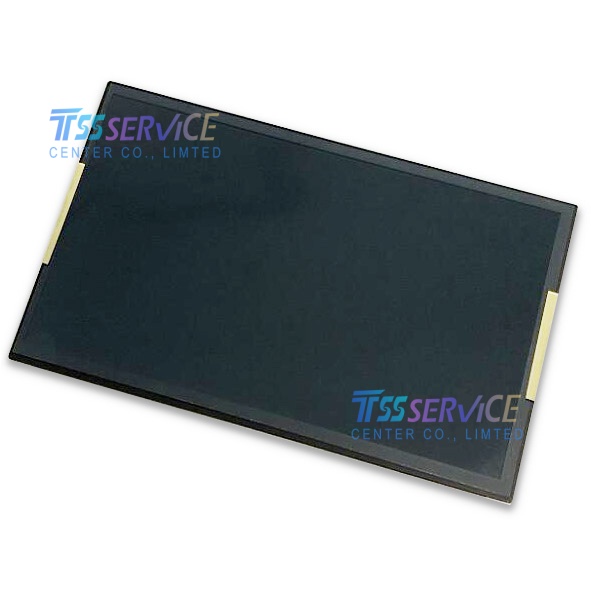

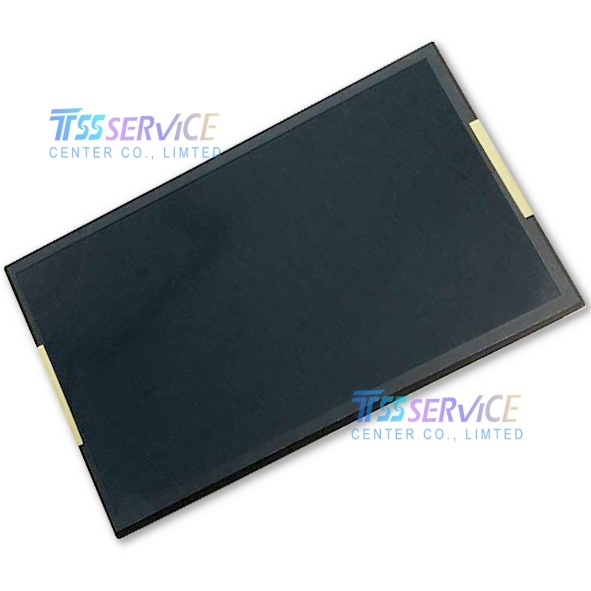

TM116VDSP03 Tianma 11.6inch FHD 1920×1080 Lcd Panel
1,Condition: New,Grade A
2,Description: TM116VDSP03 11.6 inch LCD Display Panel
3,Warranty: 90 Days
4,Lead Time: 1-3 Working days
5,Shipping: DHL ,FedEx, EMS , SF express or by air.
1,Condition: New,Grade A
2,Description: TM116VDSP03 11.6 inch LCD Display Panel
3,Warranty: 90 Days
4,Lead Time: 1-3 Working days
5,Shipping: DHL ,FedEx, EMS , SF express or by air.
| Parameter | Specification |
|---|---|
| Manufacturer | Tianma (天马) |
| Diagonal Size | 11.6 inches |
| Resolution | 1920 × 1080 (FHD), 190 PPI |
| Aspect Ratio | 16:9 |
| Panel Type | a-Si TFT-LCD, LCM |
| Display Mode | SFT, Normally Black, Transmissive |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) |
| Viewing Angle (CR≥10) | 88°/88°/88°/88° (Full Viewing Angle) |
| Display Colors | 16.7M (8-bit), 70% NTSC |
| Response Time | 25 ms (Typ.) (Tr+Td) |
| Active Area | 256.32 × 144.18 mm |
| Outline Dimensions | 273.5 × 166.5 × 11.5 mm (Max.) |
| Surface Treatment | Hard coating |
| Backlight Type | WLED, 9S6P, 30K–50K hours, |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 3.3V (VCC, Typ.) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +85°C |
