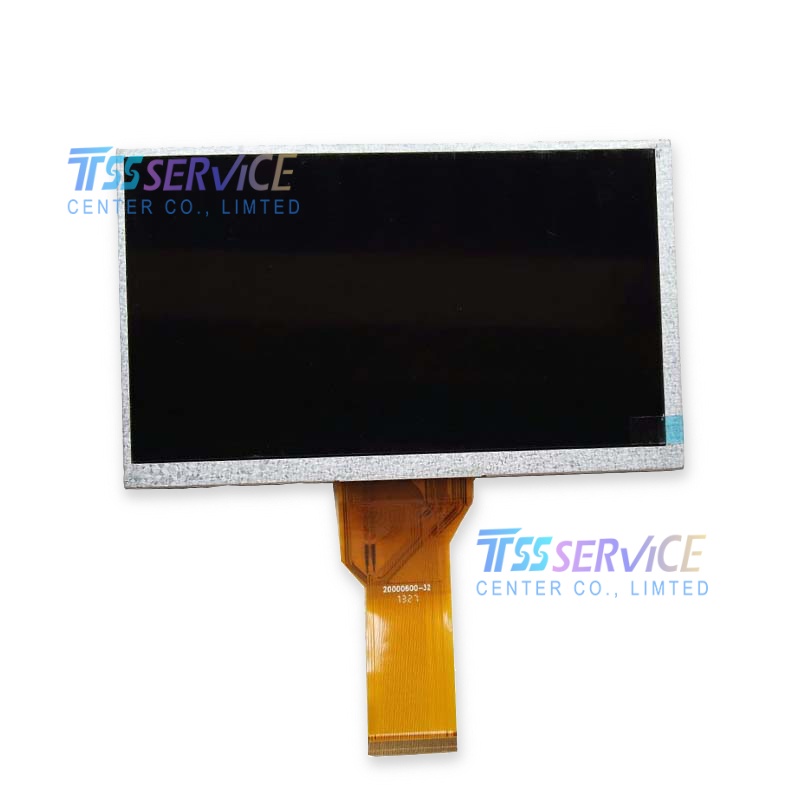

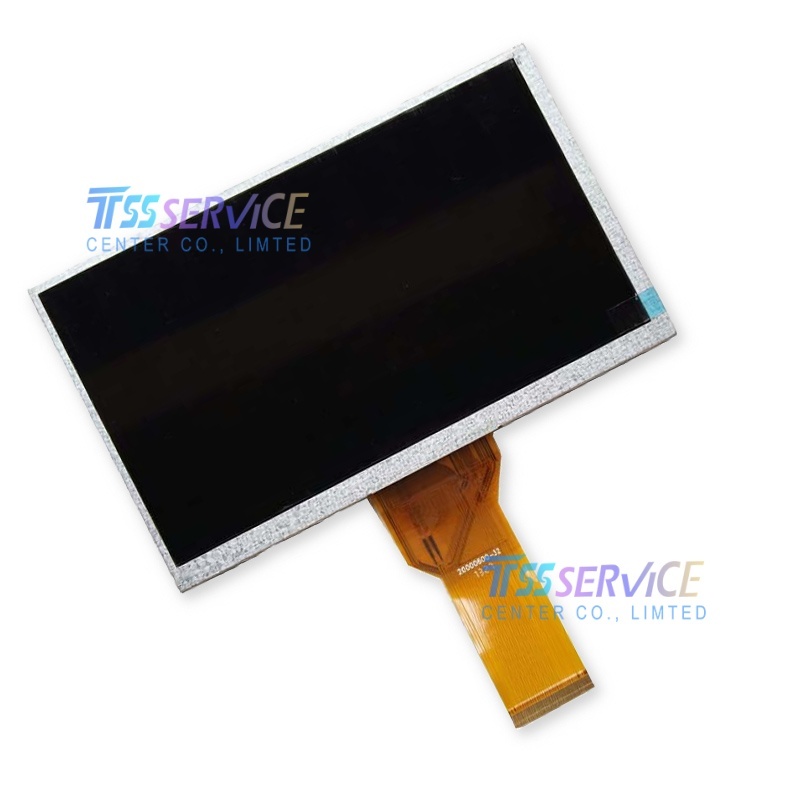

TIANMA TM070RDH13-40 7.0Inch 800×480 TFT LCD Display Module with LED Backlight

SKU: TM070RDH13-40
Model P/N:TM070RDH13-40
Diagonal Size:7.0"
Panel Type:a-Si TFT-LCD, LCM
Resolution:800(RGB)×480, WVGA  134PPI
0.0 (0 Reviews)
0 Sold
$38.00 $35.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
1/1
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
  • TM070RDH13-40 7.0inch 800(RGB)×480 TIANMA lcd panel
  • Description

The Tianma TM070RDH13-40 is a 7.0-inch TFT-LCD display module designed for cost-effective embedded applications requiring a compact and reliable visual interface. With a WVGA resolution (800 × RGB × 480) and a wide 16:9 aspect ratio, it offers balanced performance for displaying graphics, icons, and text clearly. This model features a slim design and standard interface, making it easy to integrate into a variety of portable and fixed-mount systems.

Feature Specification
Model TM070RDH13-40
Manufacturer Tianma
Screen Size 7.0 inches (diagonal)
Active Area 154.08 mm (W) × 85.92 mm (H)
Resolution 800 (RGB) × 480 (WVGA)
Display Mode Normally White, Transmissive
Brightness (Typical) 300 cd/m² (Typ.)
Contrast Ratio (Typical) 800:1
Viewing Angle (CR≥10) 80° / 80° / 80° / 80° (L/R/U/D, typical)
Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Backlight Type LED, Edge-lit
Supply Voltage 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Surface Treatment Anti-Glare, Hard Coating (3H)
Operating Temperature -20°C to +70°C (typical)
Storage Temperature -30°C to +80°C (typical)

Primary Applications

Given its industrial-grade reliability, anti-glare surface, wide temperature range, and rich RGB interface, this panel is recommended for:

1. Industrial Automation & Control

  • Human-Machine Interface (HMI) panels for factory equipment

  • Industrial control terminals and CNC machines

  • Process monitoring and instrumentation displays

  • The anti-glare surface and wide temperature tolerance make it ideal for factory floor environments where lighting conditions vary significantly

2. Medical Equipment

  • Patient monitoring systems

  • Diagnostic equipment displays

  • Medical device HMIs requiring stable, reliable performance

3. Transportation & Automotive

  • Vehicle information displays

  • Navigation systems

  • Public transportation information terminals

4. Commercial & Consumer Devices

  • Portable DVD players

  • Digital photo frames

  • Self-service kiosks and vending machines

  • Security monitoring terminals

5. Embedded Systems & Development

  • Ideal for prototyping with ARM, FPGA, or MCU platforms due to standard Parallel RGB interface and built-in TCON

    Why Choose Us? (Your Business Value)

    As a 14-year veteran in the LCD industry, we specialize in providing original NEC/NLT/Tianma stock directly from our Hong Kong warehouse.

    Ready Stock: Immediate shipping for the TM070RDH13-40.

    Flexible MOQ: Supporting both sample orders and small batch production.

    Professional Expertise: Deep technical understanding to help you with cross-references and replacement solutions.

    Small Batch Support: Flexible MOQ to support your repairs, maintenance, or low-volume specialized production.

    Quality Assured: 100% original and strictly tested before shipment.
