TM070JVHG33-01 7'' 1280×800 Lcd Screen for TIANMA

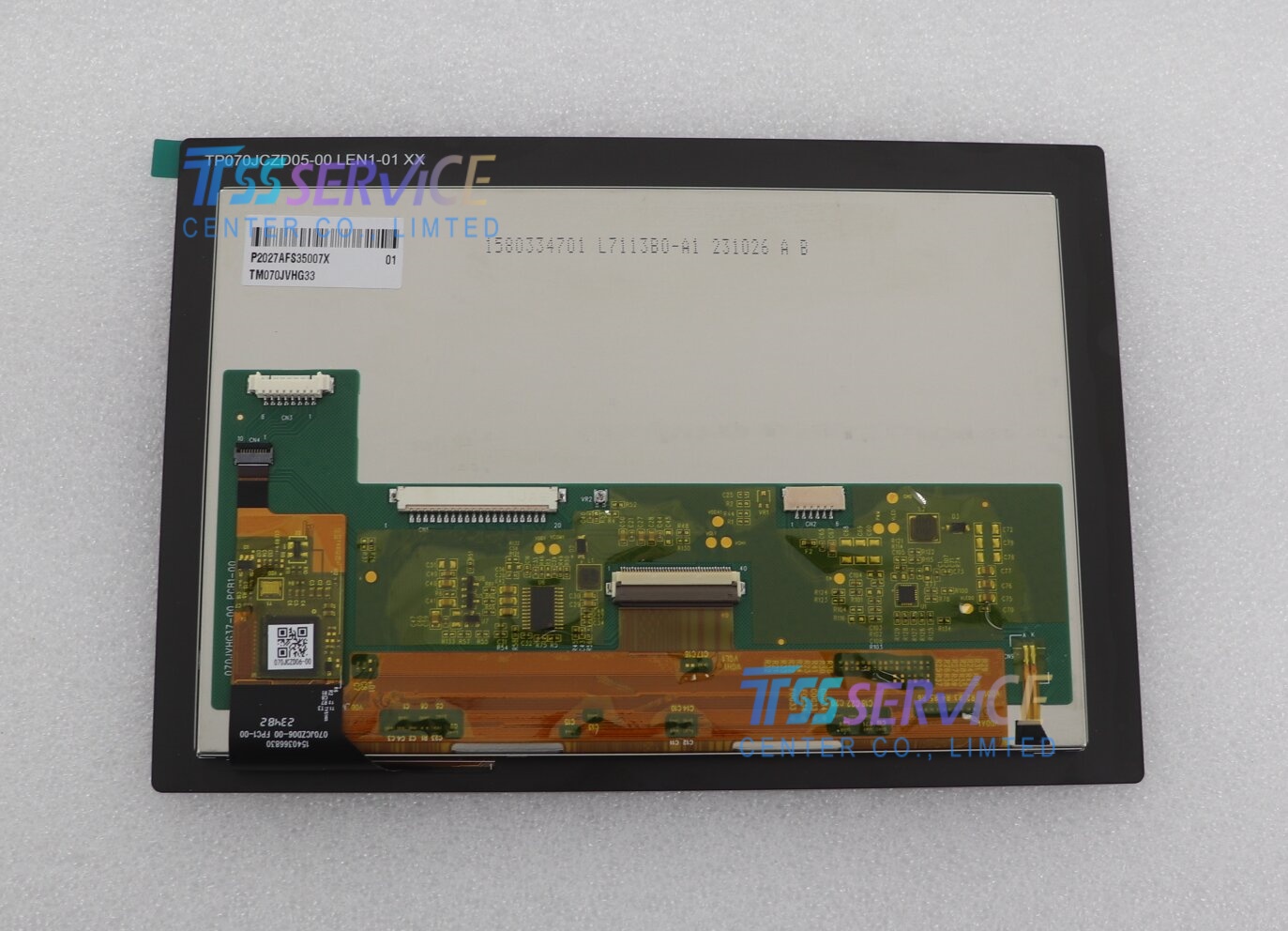

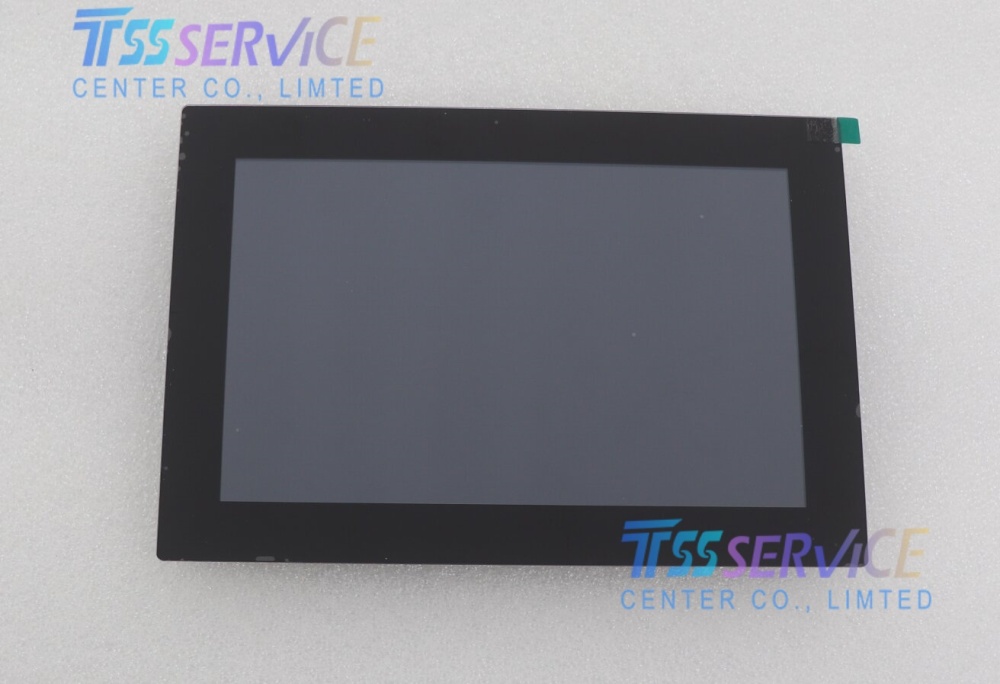

Name: TM070JVHG33-01 7'' 1280×800 Lcd Screen for TIANMA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TM070JVHG33-01
Price: 100 USD
Availability: InStock

SKU: TM070JVHG33-01

Model P/N：TM070JVHG33-01
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×800, WXGA 217PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$115.00~~ $100.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The TIANMA TM070JVHG33-01 is a 7.0-inch a-Si TFT-LCD module engineered for modern industrial and human-machine interface (HMI) applications. As a variant of the TM070JVHG33 series, this model combines SFT wide-viewing technology, high brightness, and an integrated projected capacitive (PCAP) touch screen, delivering a complete, ready-to-use display solution for applications requiring intuitive multi-touch interaction and excellent optical performance .

Brand	TIANMA
Model P/N	TM070JVHG33-01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 217PPI
Pixel Format	RGB Vertical Stripe
Active Area	149.76(W)×93.6(H) mm
Outline Size	181.76(W)×125.6(H)×10.7(D) mm
Surface	Hard coating
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	35 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 50% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	PCAP, USB
Panel Weight	229g (Typ.)
Application	-
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C

Applications:
With its PCAP touch interface, SFT wide-viewing technology, and robust industrial design, the TIANMA TM070JVHG33-01 is particularly well-suited for industrial HMIs, medical devices, portable instrumentation, kiosks, smart home control panels, and other embedded systems requiring a reliable, touch-enabled display solution with excellent optical performance and intuitive user interaction .
