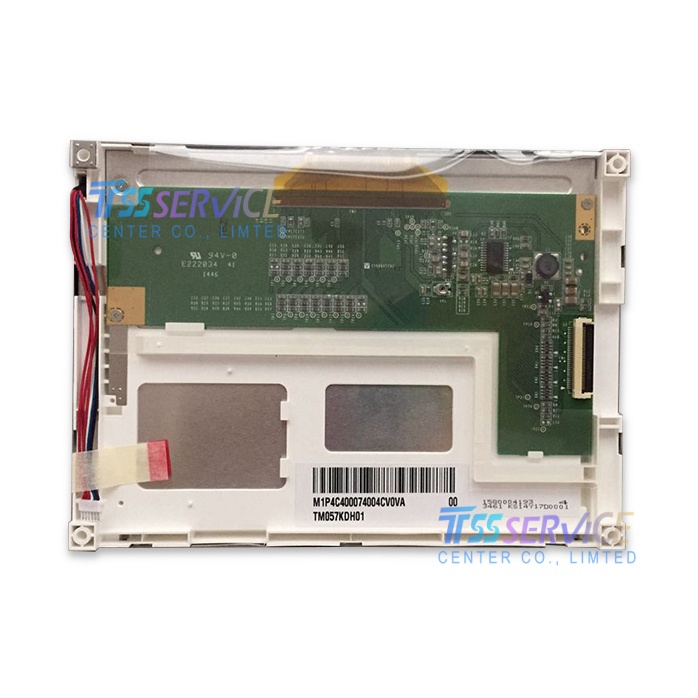

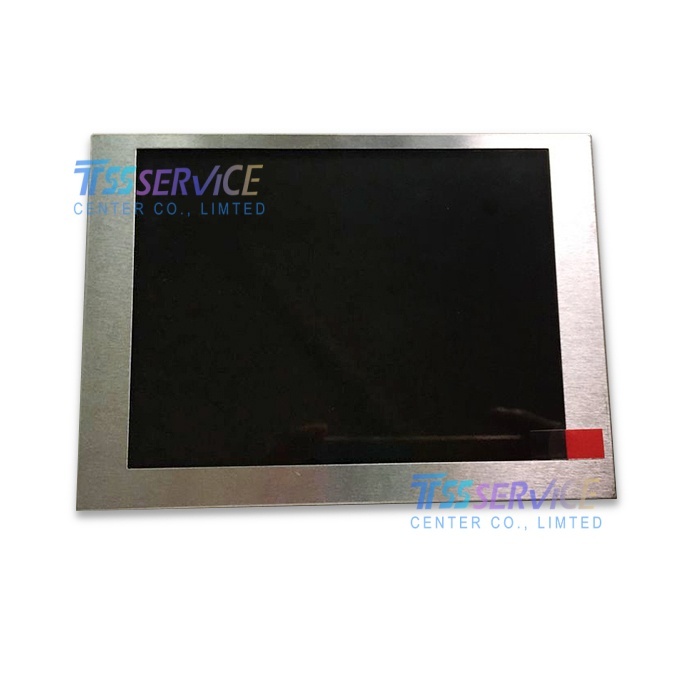

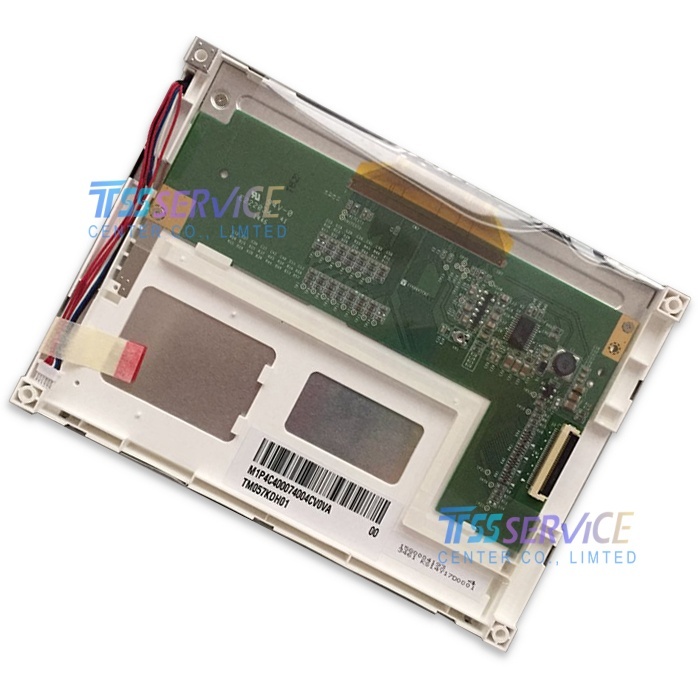

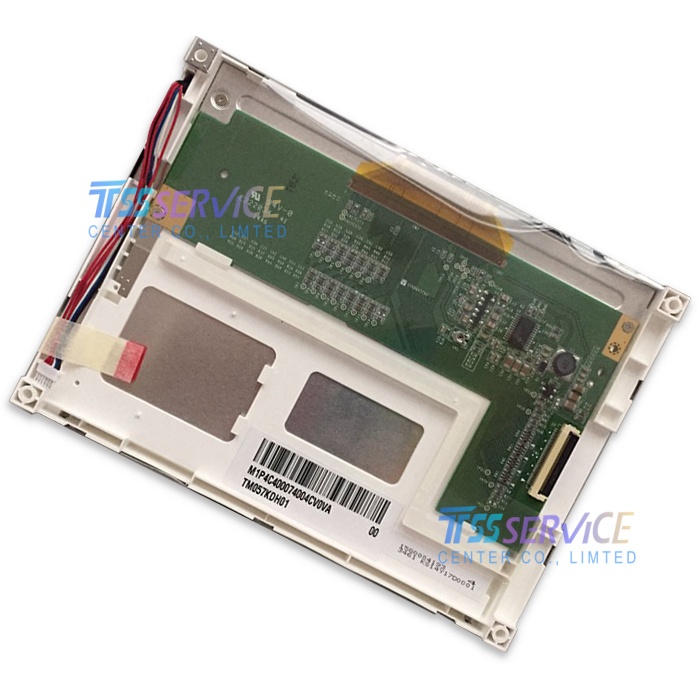

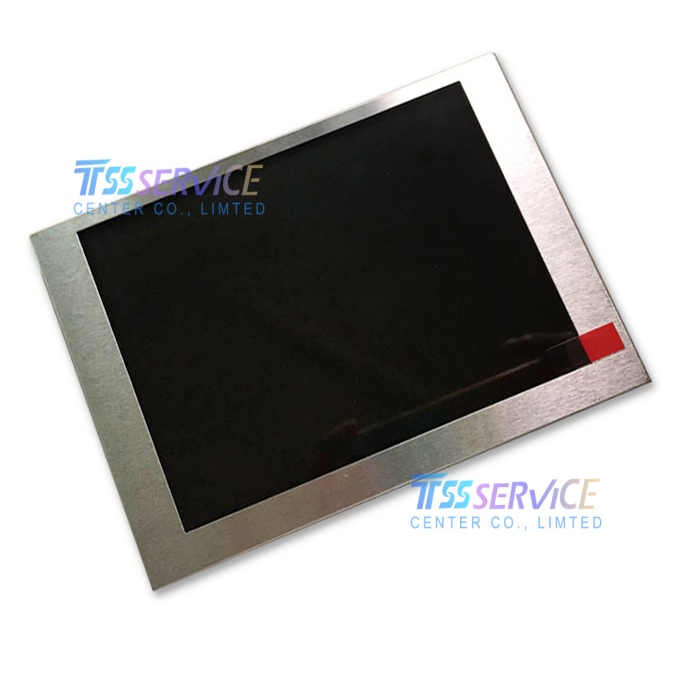

The TM057KDH01-10 is a 5.7-inch a-Si TFT-LCD module manufactured by TIANMA Microelectronics . Released in Q2 2016, this model is specifically engineered for industrial applications that require reliable performance and stable operation in standard environments . It features a QVGA resolution of 320×240 pixels with an RGB vertical stripe pixel arrangement.
| Brand |
TIANMA |
| Model P/N |
TM057KDH01-10 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA, 70 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
| Bezel Opening |
118.2(W)×89.4(H) mm |
| Outline Dim. |
144(W)×104.6(H)×12.8(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
| Response Time |
20 (Typ.)(Tr+Td) ms |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K, 52% NTSC |
| Light Source |
WLED (5S3P), 50K hours, Without Driver |
| Panel Weight |
157g (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 33 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Application Scenarios
The TM057KDH01-10 is engineered for industrial and commercial applications that require reliable performance :
-
Industrial Automation: Human-Machine Interface (HMI) panels, industrial control systems, and factory automation equipment
-
Commercial Equipment: Point of Sale (POS) terminals, office automation devices
-
Consumer Applications: Portable DVD players, digital photo frames, and video doorbells
-
Specialized Instrumentation: Test and measurement equipment, embroidery machine controls, dyeing machine controls
