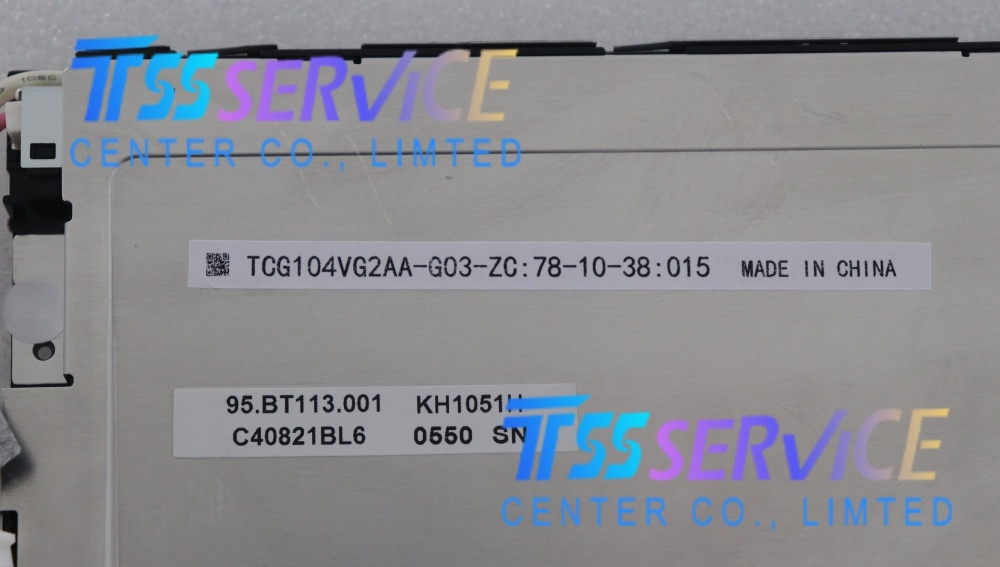

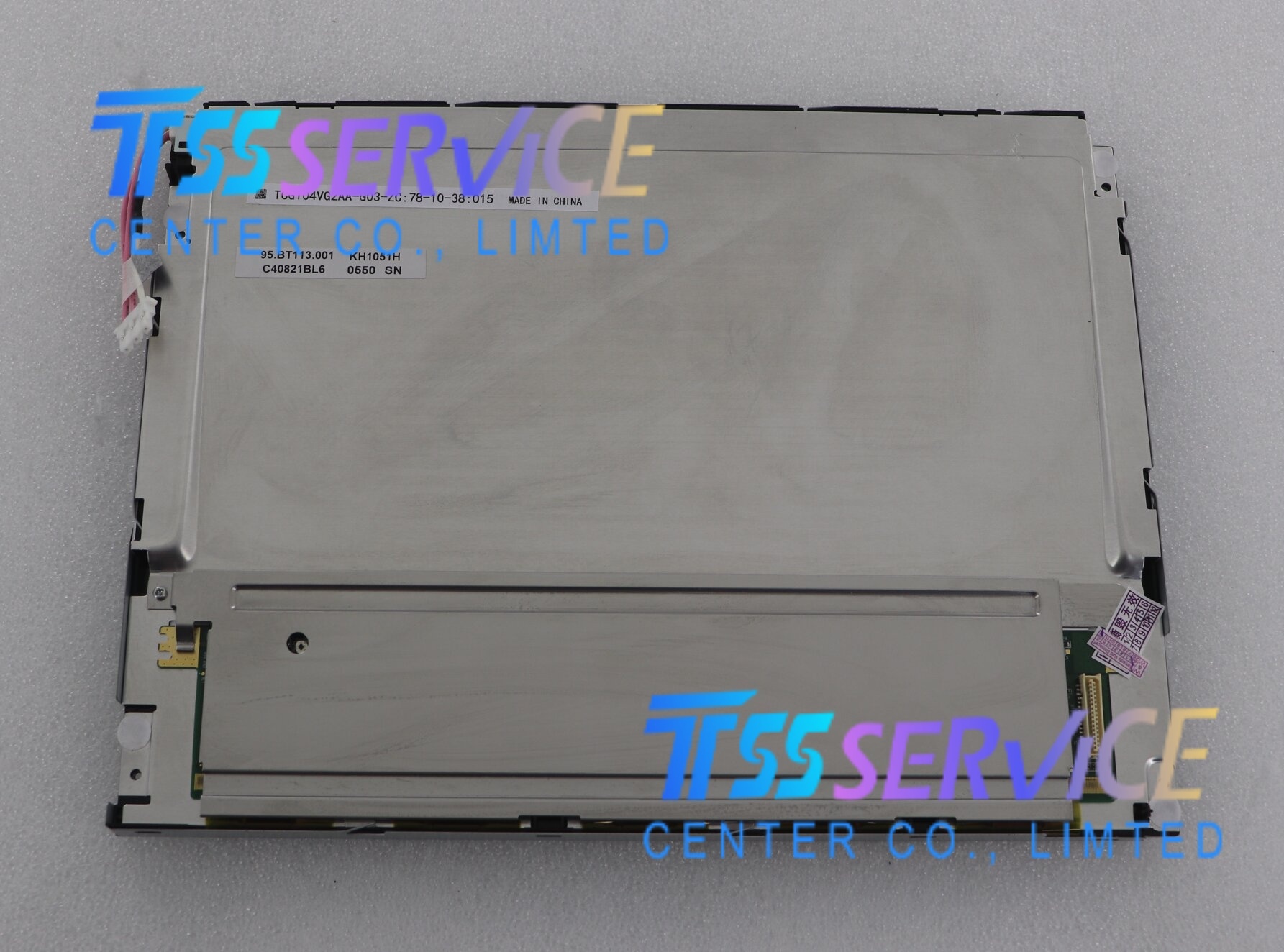

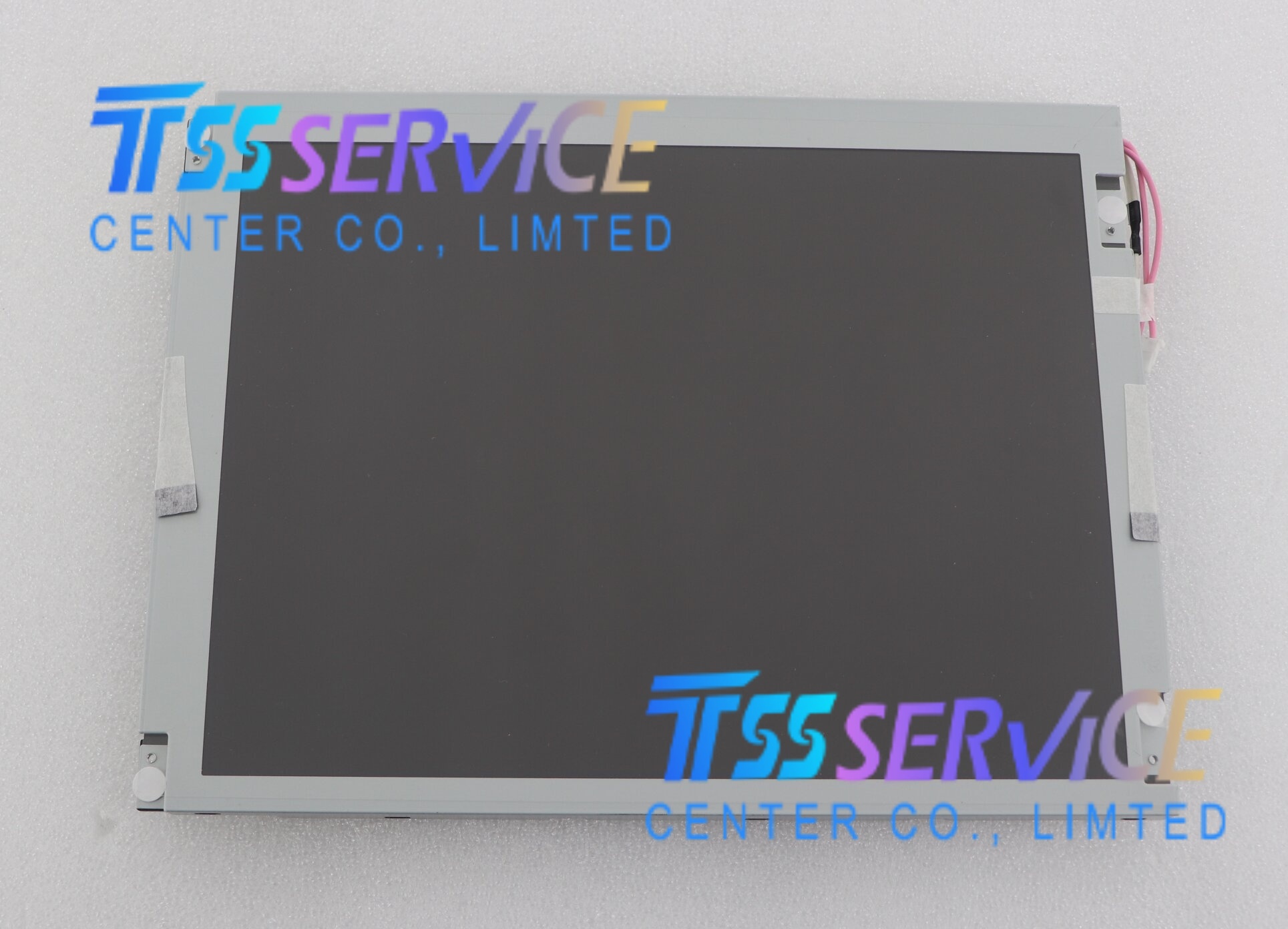

KYOCERA NEW 10.4 inch LCD Display Panel TCG104VG2AA-G03-W for Industrial
| Parameter |
Specification |
Details / Notes |
| Model Number |
TCG104VG2AA-G03-W |
Kyocera (Optrex) Industrial LCD Module |
| Screen Size |
10.4 inches |
Diagonal measurement |
| Active Area (AA) |
211.2 × 158.4 mm |
Standard 4:3 aspect ratio |
| Outline Dimensions |
Approx. 240.7 × 180.2 × 12.5 mm |
Includes metal bezel; slightly thicker due to CCFL inverter space |
| Resolution |
640 (RGB) × 480 |
VGA Format |
| Pixel Pitch |
0.33 × 0.33 mm |
RGB Vertical Stripe arrangement |
| Display Mode |
TN (Twisted Nematic) |
Transmissive, Normally White |
| Color Depth |
262K colors |
6-bit per color (18-bit total) |
| Brightness |
350 ~ 450 cd/m² |
Typical (CCFL dependent, may degrade over time) |
| Contrast Ratio |
400:1 ~ 500:1 |
Typical (CR ≥ 10) |
| Viewing Angle |
70/70/50/60° |
Typical (Left/Right/Up/Down) at CR≥10 |
| Response Time |
20/30 ms |
Typical (Tr + Td), slower than modern IPS/LED panels |
| Backlight Type |
CCFL |
Cold Cathode Fluorescent Lamp (Requires high-voltage inverter) |
| Backlight Life |
30,000 ~ 50,000 hours |
Until brightness drops to 50% (Shorter than LED) |

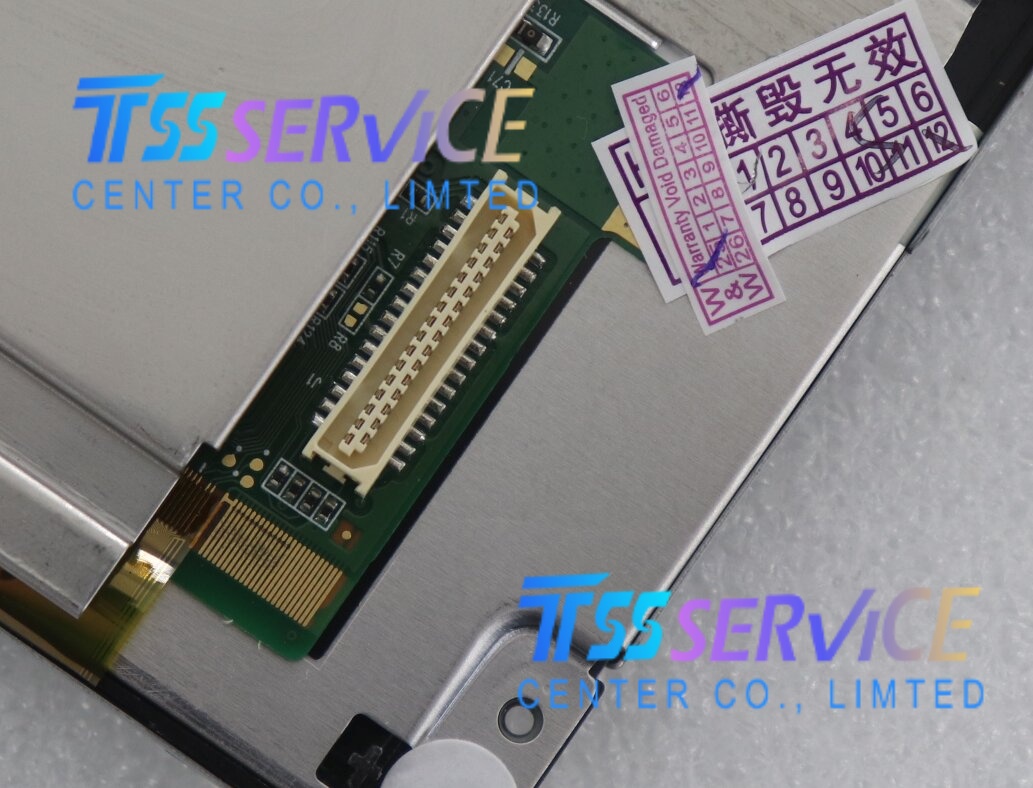

| Interface |
TTL (Parallel) |
18-bit RGB Parallel (6-bit color depth); Verify pinout for G03 revision |
| Input Voltage |
5.0V |
Logic voltage; Backlight requires separate 12V-24V for inverter |
| Power Consumption |
~5.0W - 7.0W |
Higher than LED equivalents due to inverter loss |
| Operating Temp. |
0°C to +50°C |
Standard Industrial (Some variants support -20°C to +70°C) |
| Storage Temp. |
-20°C to +60°C |
Non-operating storage range |
| Weight |
Approx. 550g - 600g |
Heavier due to CCFL tubes and inverter |
| Surface Treatment |
Haze 25%, 3H Hard Coat |
Anti-glare and scratch-resistant |
| RoHS Compliance |
Partial/Exempt |
CCFL contains mercury; may require special disposal |
The TCG104VG2AA-G03-W is primarily found in legacy industrial systems and applications where long-term supply chains for older technology are maintained, or where the specific characteristics of CCFL (such as color temperature stability over time) were originally specified.
-
Legacy Industrial Automation:
- Older HMI Panels: Widely used in Human Machine Interfaces manufactured in the 2000s and early 2010s for PLCs (Programmable Logic Controllers) from brands like Siemens, Allen-Bradley, and Mitsubishi.
- CNC Machine Controllers: Embedded in the control consoles of older CNC lathes and milling machines where the system architecture relies on TTL parallel video signals.
-
Transportation (Legacy Fleets):
- Train & Bus Consoles: Installed in older railway driver desks and bus dashboard displays. The "Normally White" mode is crucial for safety in these environments.
- Ticket Vending Machines: Used in older generations of subway and train ticketing kiosks that are still in service due to their durability.
-
Medical Equipment (Older Models):
- Patient Monitors: Found in bedside monitors and vital signs displays produced a decade ago. The reliability of the TN panel ensures that waveform data remains visible even if the inverter begins to fail.
- Diagnostic Carts: Used in older ultrasound and endoscopy carts where the system's video output card is hardwired for TTL 640x480 resolution.
-
Test & Measurement Instruments:
- Benchtop Analyzers: Integrated into older oscilloscopes, spectrum analyzers, and network testers where the internal graphics controller outputs a parallel RGB signal.
- Field Service Tools: Used in portable diagnostic equipment for telecommunications and power utilities that were designed before LVDS became ubiquitous.
-
Maintenance & Retrofit Projects:
- Direct Replacement: The primary application today is as a replacement part for repairing existing machinery. When an original TCG104VG2AA-G00 or G01 fails, the G03 is often used as a compatible substitute to avoid costly system redesigns.
- Spare Parts Inventory: Maintained by factories and transport authorities to ensure continuity of operations for aging equipment that has not yet been scheduled for full modernization.
-
Specialized Control Systems:
- Power Plant Control Rooms: Used in monitoring stations for nuclear, thermal, and hydroelectric plants where systems have long certification cycles and cannot be easily upgraded to new display technologies without re-certification.
