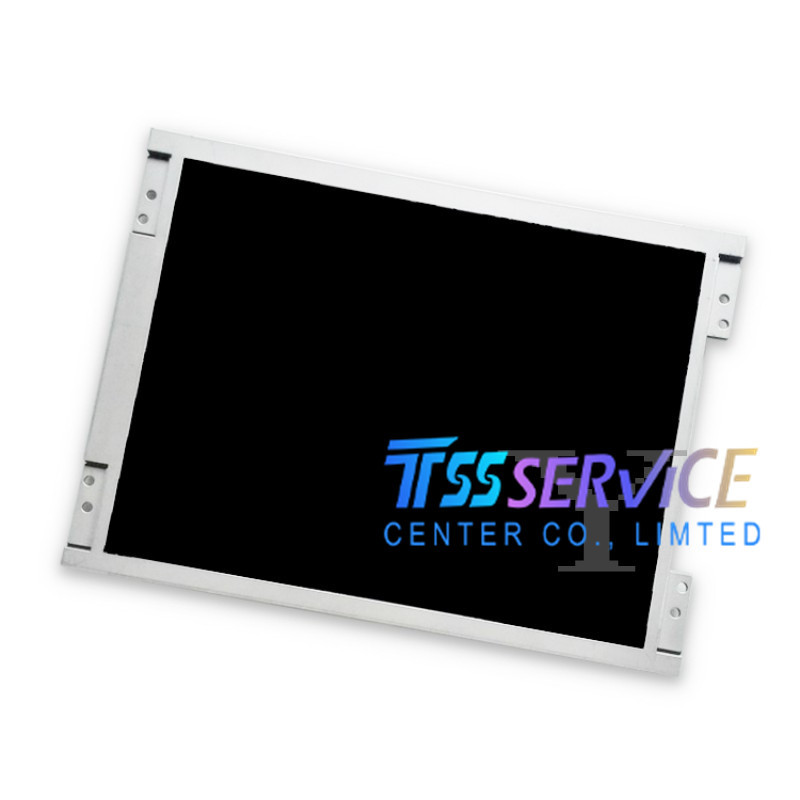

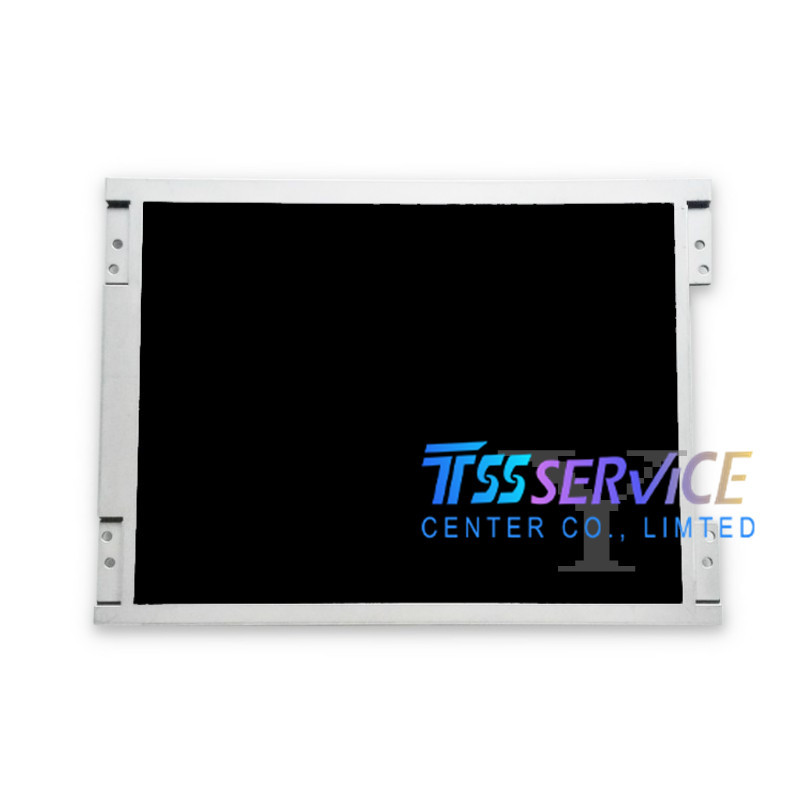

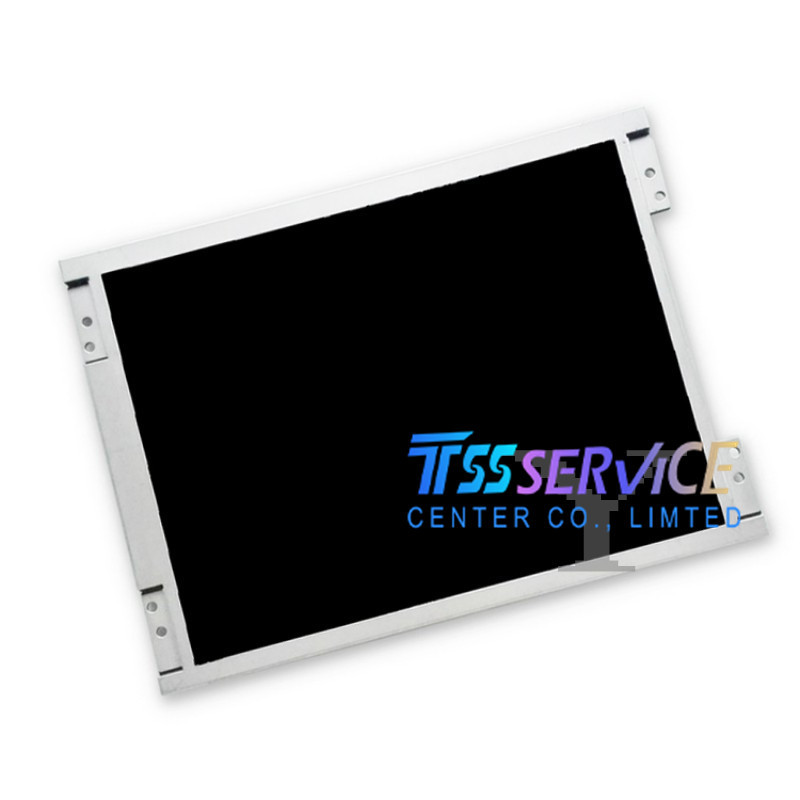

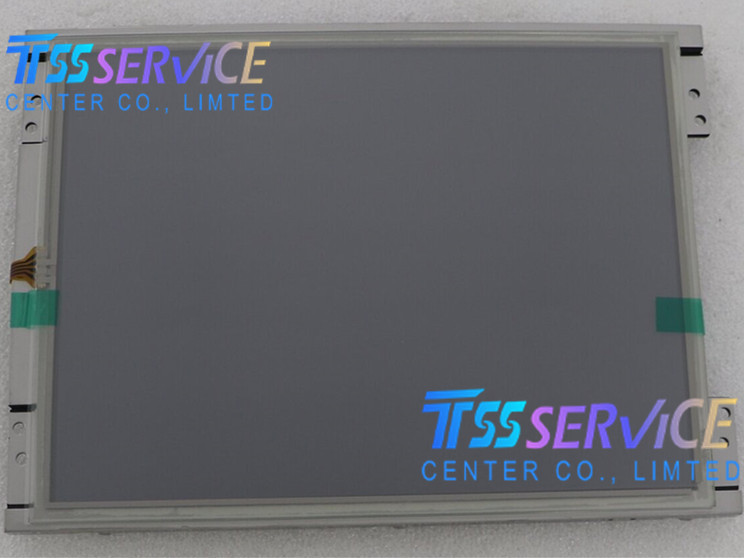

TCG084SVLQEPNN-AN31 8.4 inch Kyocera LCD Panel for Industrial Machine
| Parameter |
Details |
| Manufacturer |
Kyocera (京瓷) |
| Model |
TCG084SVLQEPNN-AN31 |
| Diagonal Size |
8.4-inch |
| Resolution |
800 × 600 (SVGA) |
| Display Type |
a-Si TFT-LCD, Transmissive |
| Display Mode |
AWV (Advanced Wide View), Normally Black |
| Color Depth |
16.2M Colors (18-bit RGB) |
| Brightness |
1200 cd/m² (Typical) |
| Contrast Ratio |
750:1 (Typical) |
| Backlight |
WLED (White LED), Driver Built-in |
| Backlight Lifetime |
50,000 hours (Typical) |
| Interface |
LVDS (1 ch, 8-bit) |
| Viewing Angle |
85°(L) / 85°(R) / 85°(U) / 85°(D) (CR≥10) |
| Operating Voltage |
DC 3.3V |
| Operating Temp. |
-30°C ~ +80°C (Extended Industrial) |
| Storage Temp. |
-30°C ~ +80°C |
| Outline Dimensions |
199.5 × 149 × 11.5 mm |
| Active Area |
170.4 × 127.8 mm |
| Surface Treatment |
Anti-glare (Matte) |
| Weight |
365 g (Typical) |
TCG084SVLQEPNN-AN31 is a high-brightness, wide-temperature industrial LCD module tailored for outdoor and semi-outdoor environments where visibility under direct sunlight is critical.Key Application Scenarios:
- Industrial Automation & Control
- Factory HMI (Human-Machine Interface) panels
- CNC machine tools and machining center consoles
- Industrial robotics and PLC control systems
- Outdoor & High-Ambient Light Equipment
- Outdoor industrial terminals and monitoring systems
- Agricultural machinery displays
- Marine and shipboard electronic equipment
- Test & Measurement Instruments
- Portable field analyzers and data loggers
- Precision testing equipment for harsh environments
- Specialized Equipment
- Medical carts and outdoor diagnostic devices
- Military and avionics display systems
- Heavy-duty vehicle dashboards
