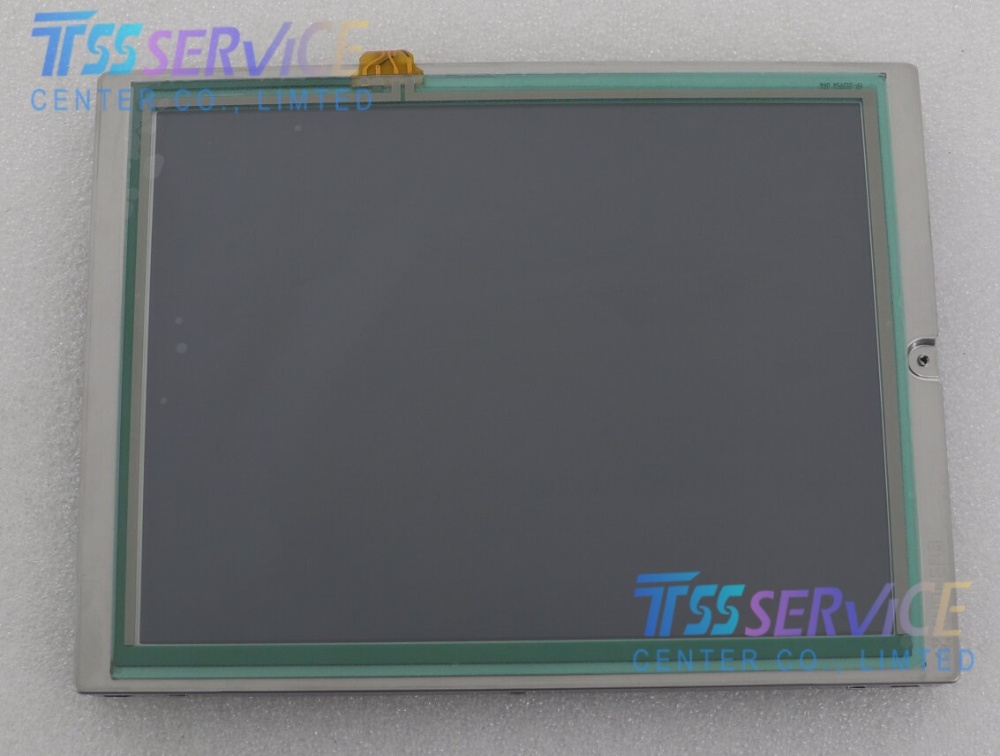

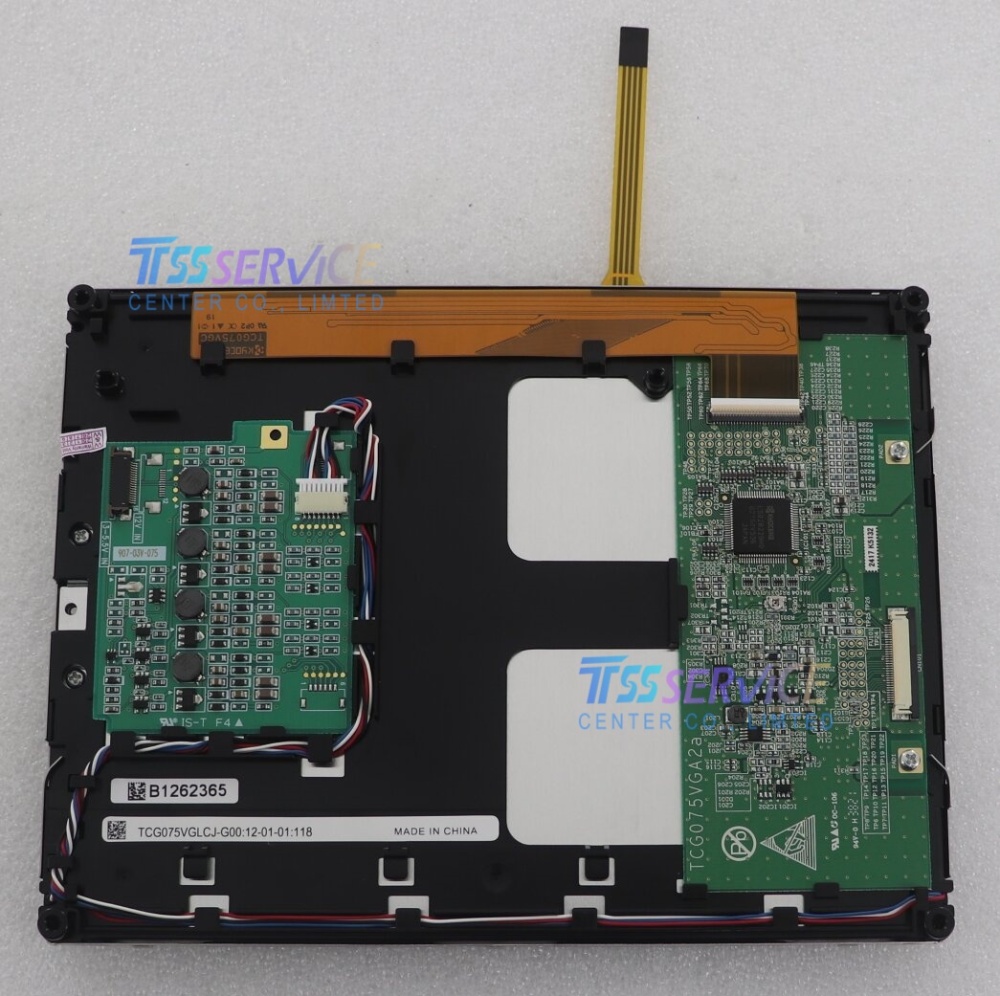

KYOCERA NEW 7.5 inch LCD Display Panel TCG075VGLCJ-G00-29-07-36 for Industrial
| Category |
Parameter |
Specification |
| General Info |
Panel Brand |
KYOCERA |
|
Panel Model |
TCG075VGLCE-G00 |
|
Screen Size |
7.5 inches |
|
Panel Weight |
355 g (Typ.) |
| Structure |
Resolution |
640(RGB) × 480 (VGA) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Dot Pitch |
0.079 × 0.237 mm |
|
Display Area |
151.68(W) × 113.76(H) mm |
|
Outline Dimension |
184 × 139.8 mm |
|
Surface Treatment |
Mirror (Haze 0%) |
| Optical |
Optical Mode |
TN, Normally White, Transmissive |
|
Luminance |
280 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (Transmissive) |
|
Display Colors |
262K (6-bit) |
|
Response Time |
15/20 (Typ.) (Tr/Td) ms |
|
Viewing Angle |
80/80/80/80 (Typ.) (CR≥10) |
| Backlight |
Lamp Type |
WLED, Side-light (Bottom) |
|
LED Lifetime |
> 50,000 Hours |
|
Input Voltage |
23.1 / 25.9 V (Typ./Max.) |
|
Input Current |
25 mA (Typ.) |
| Electrical |
Signal Interface |
Parallel RGB (1 ch, 6-bit), 33 pins, Terminal |
|
Panel Voltage |
3.3 V (Typ.) |
| Environment |
Operating Temp. |
-20 ~ 70 °C |
|
Storage Temp. |
-30 ~ 80 °C |
- Industrial Equipment: CNC system displays (e.g., FANUC, Siemens, Mitsubishi, KND, Guangzhou CNC systems), industrial automation control panels, and manufacturing machinery.
- Medical Instruments: Medical diagnostic equipment, patient monitors, and laboratory testing devices.
- Automotive & Transportation: Car navigation systems, vehicle dashboard displays, and marine navigation equipment.
- Commercial & Financial Terminals: ATM machines, POS receipt printers, self-service kiosks, and ticketing terminals.
- Security & Monitoring: Surveillance equipment, security control room monitors, and access control systems.
- Portable Devices: Handheld PDAs, ruggedized data loggers, and field testing equipment.
