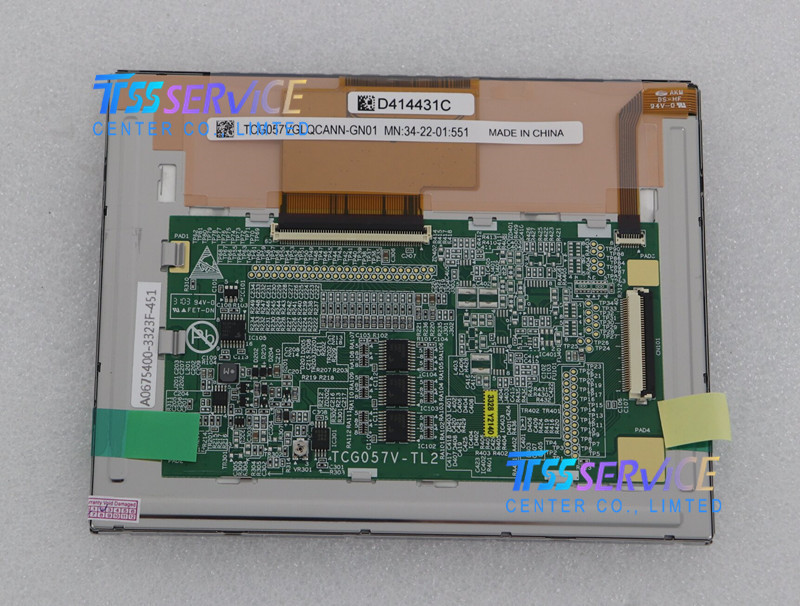

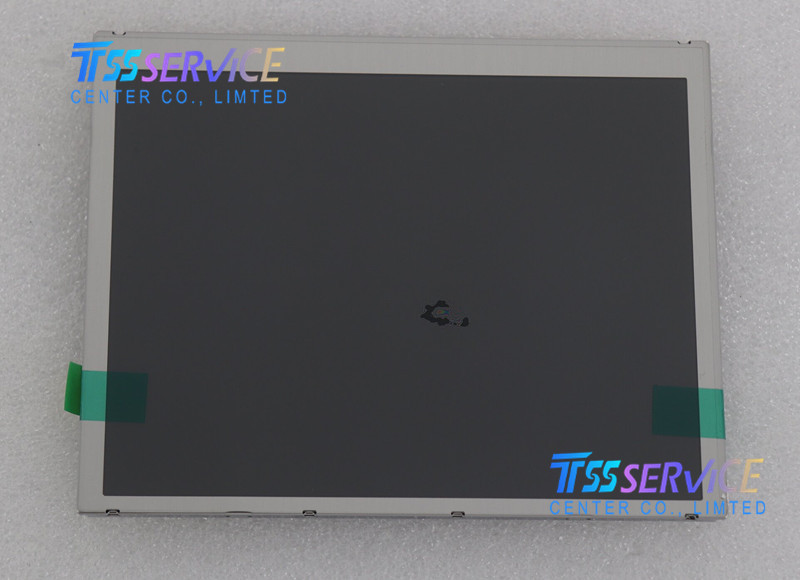

Kyocera 5.7inch LCD Panel Display TCG057VGLQCANN-GN01 For Industrial

Name: Kyocera 5.7inch LCD Panel Display TCG057VGLQCANN-GN01 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG057VGLQCANN-GN01
Price: 150 USD
Availability: InStock

SKU: TCG057VGLQCANN-GN01

Condition: New Original
Warranty: 90 days
Shipping: DHL/ Fedex/ 4PX express/ SF express
Lead time: 1-3 days
Packaging: Bubble pad+Paper box

0.0 (0 Reviews)

0 Sold

~~$160.00~~ $150.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

TCG057VGLQCANN-GN01 LCD Display is a 5.7-inch LCD screen from Kyocera brand without touch. It has a resolution of 640x480 pixels (VGA), a brightness of 1300 cd/m ², a input voltage of 3.3V, and a working frequency of 60Hz. With a contrast ratio of 700:1 and a wide operating temperature, this LCD screen is mainly used in these fields: Factory automation equipment field.

SPECIFICATION

Resolution	640(RGB)×480, VGA 141PPI	Pixel Format	RGB Vertical Stripe
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)	Operating Mode	TN, Normally White, Transmissive
Interface Type	Parallel RGB (1 ch, 6-bit) Connector	Light Source	WLED , W/O Driver
Power Supply	3.3V (Typ.)	Touch Panel	Without
