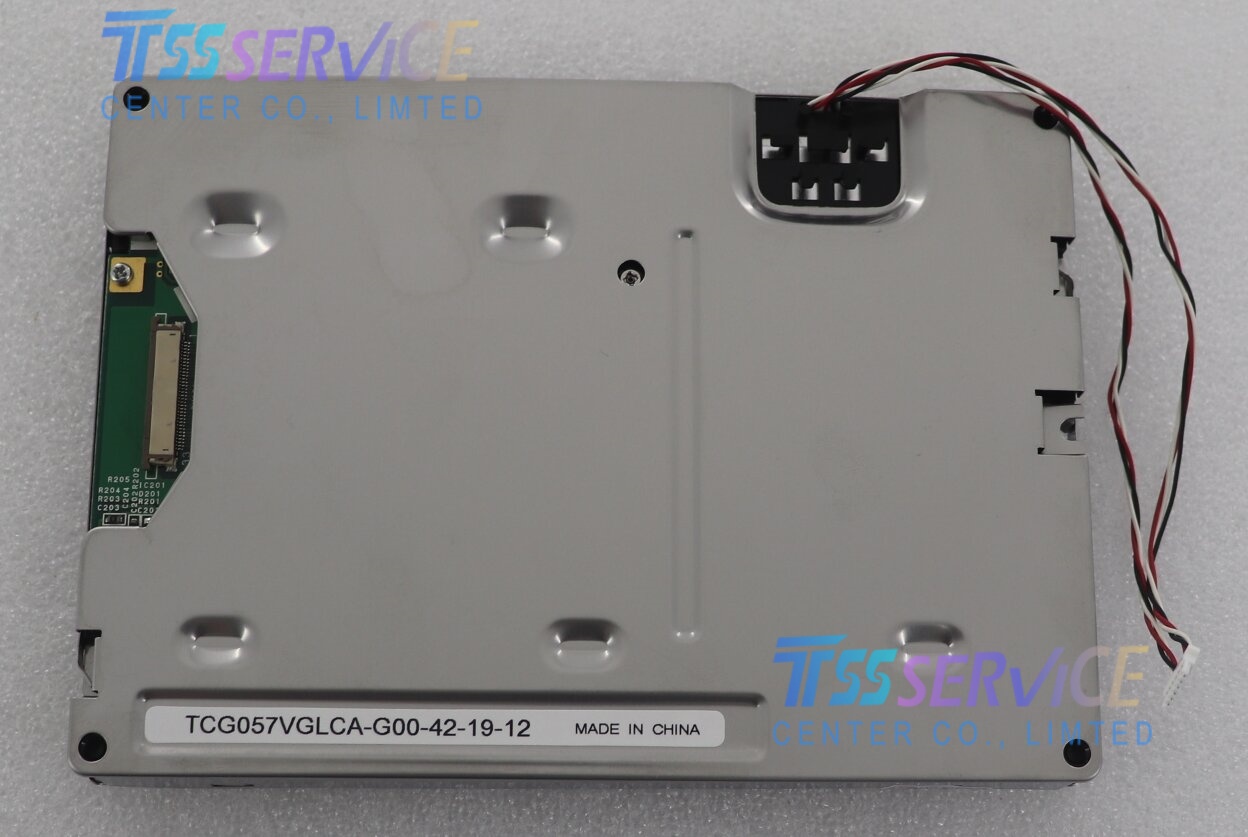

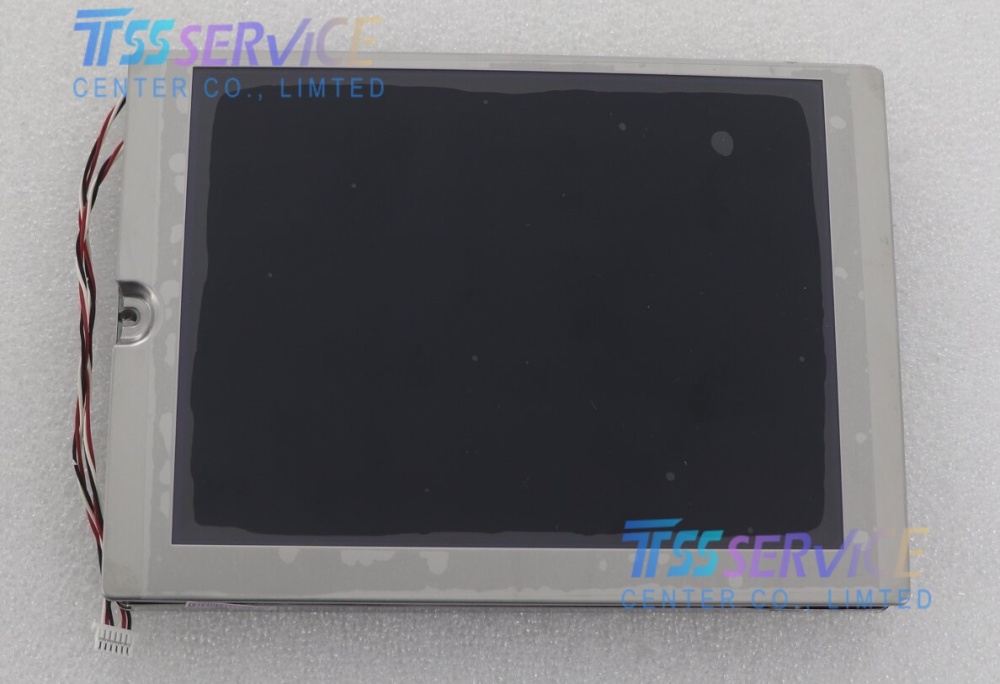

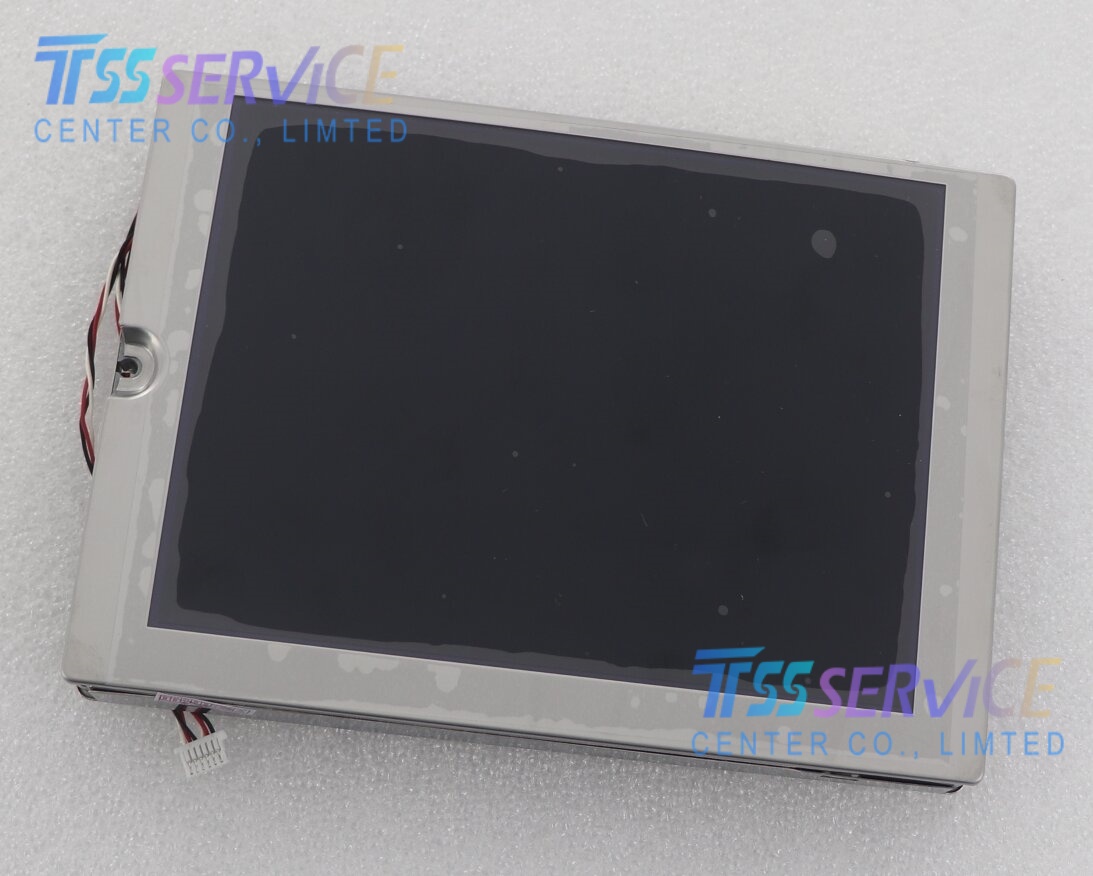

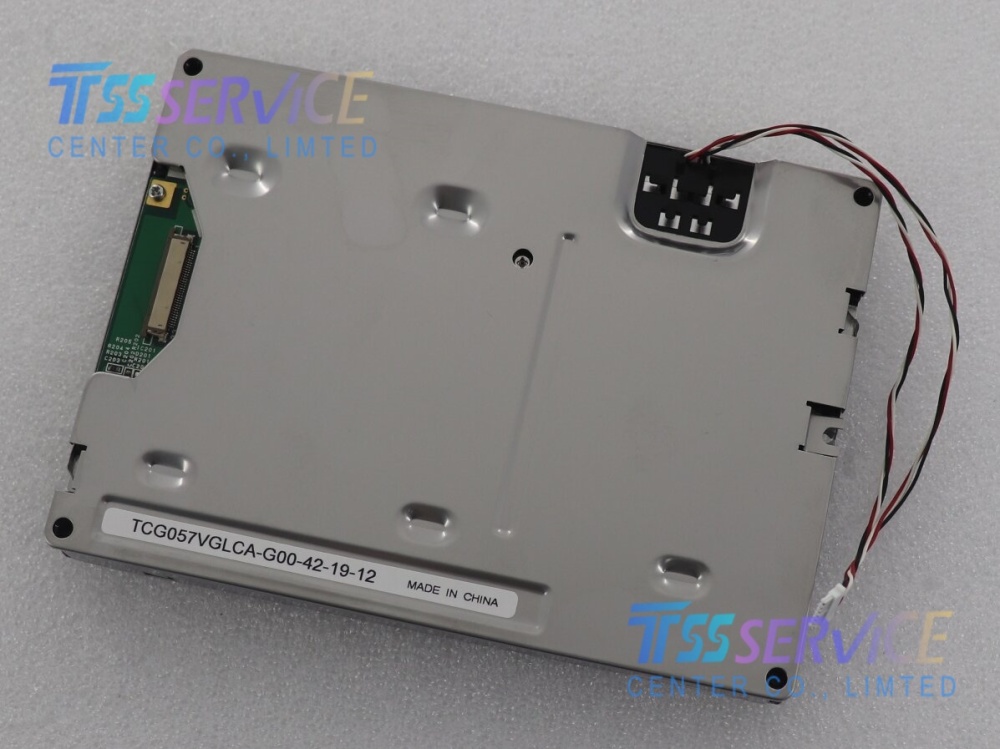

Product Overview: TCG057VGLCAQ-H50AK
The TCG057VGLCAQ-H50AK is a high-performance 5.7-inch a-Si TFT-LCD liquid crystal module designed for robust industrial applications. Engineered for reliability, this display features a standard VGA resolution of 640(RGB)×480 pixels, delivering clear and precise visual output. It utilizes a WLED (White LED) backlight system, ensuring a typical brightness of 800 cd/m² and a long operational lifespan of over 50,000 hours.
This module is built to withstand demanding environments, with a wide operating temperature range from -20°C to 70°C. It employs a Parallel RGB interface (33 pins) and operates on a 3.3V power supply, making it a reliable choice for integration into various electronic systems.
Key Specifications
| Parameter |
Specification |
| Model Number |
TCG057VGLCAQ-H50AK |
| Display Type |
a-Si TFT-LCD, Transmissive |
| Screen Size |
5.7 inch |
| Resolution |
640(RGB) × 480 [VGA] |
| Brightness |
800 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Backlight |
WLED, 50k Hours Life |
| Interface |
Parallel RGB (1 ch, 6-bit), 33 Pins |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp |
-20°C to 70°C |
| Storage Temp |
-30°C to 80°C |
