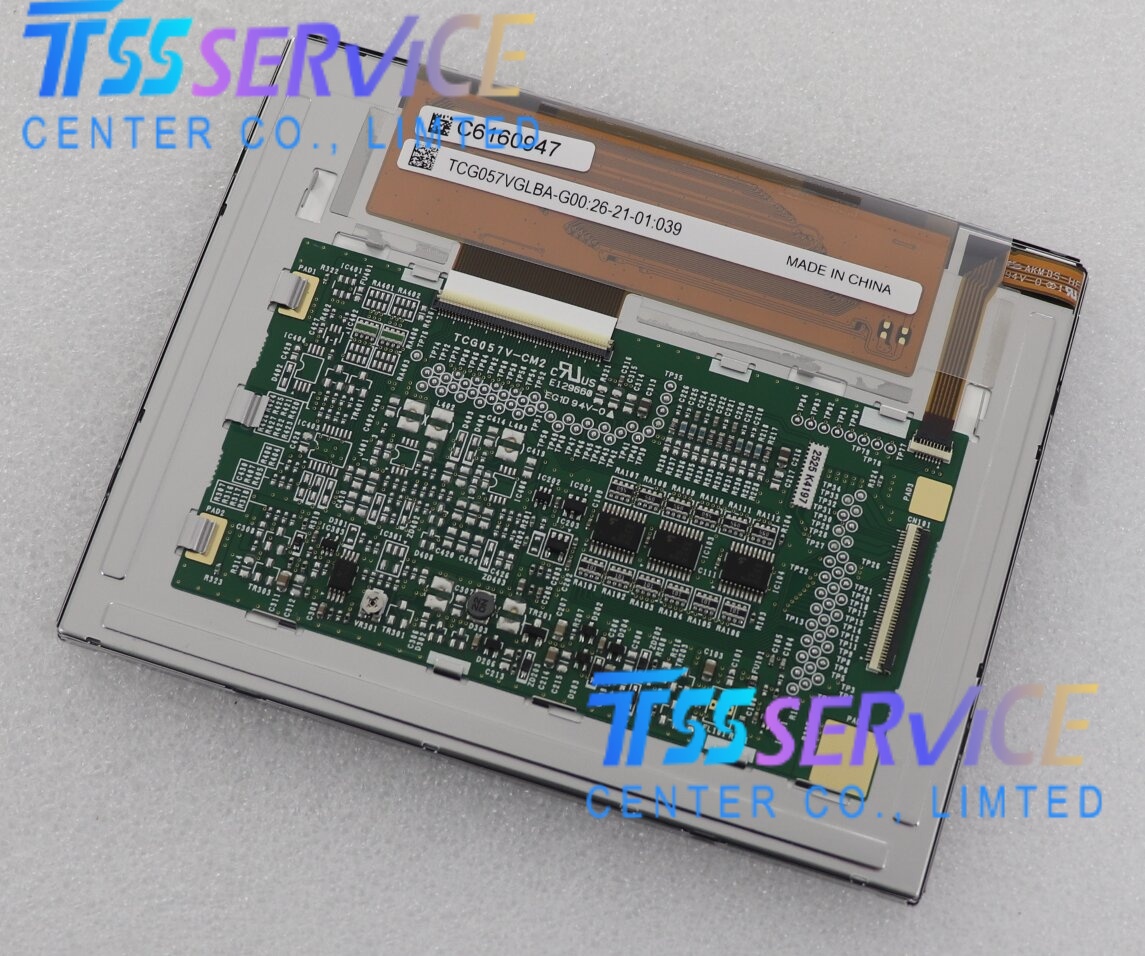

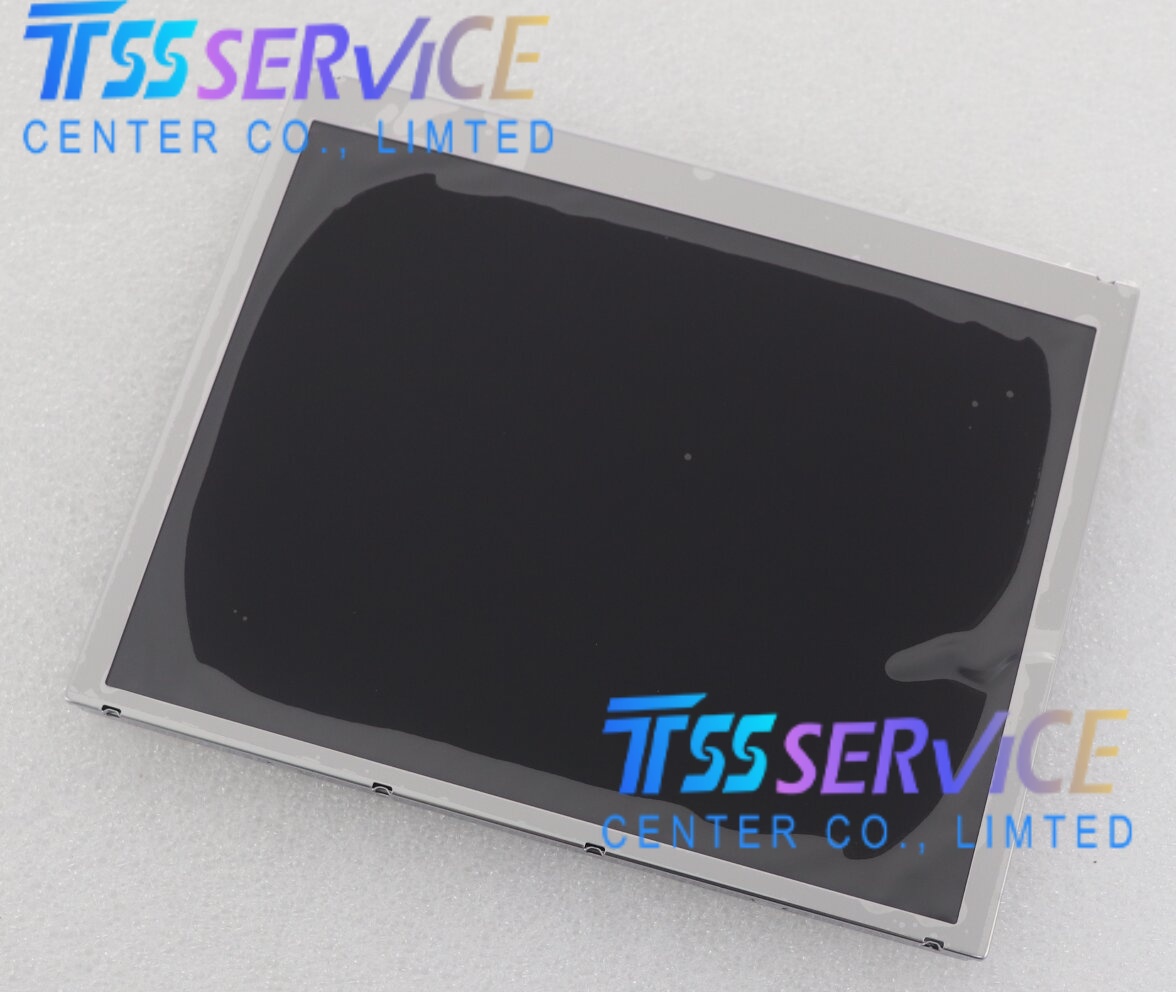

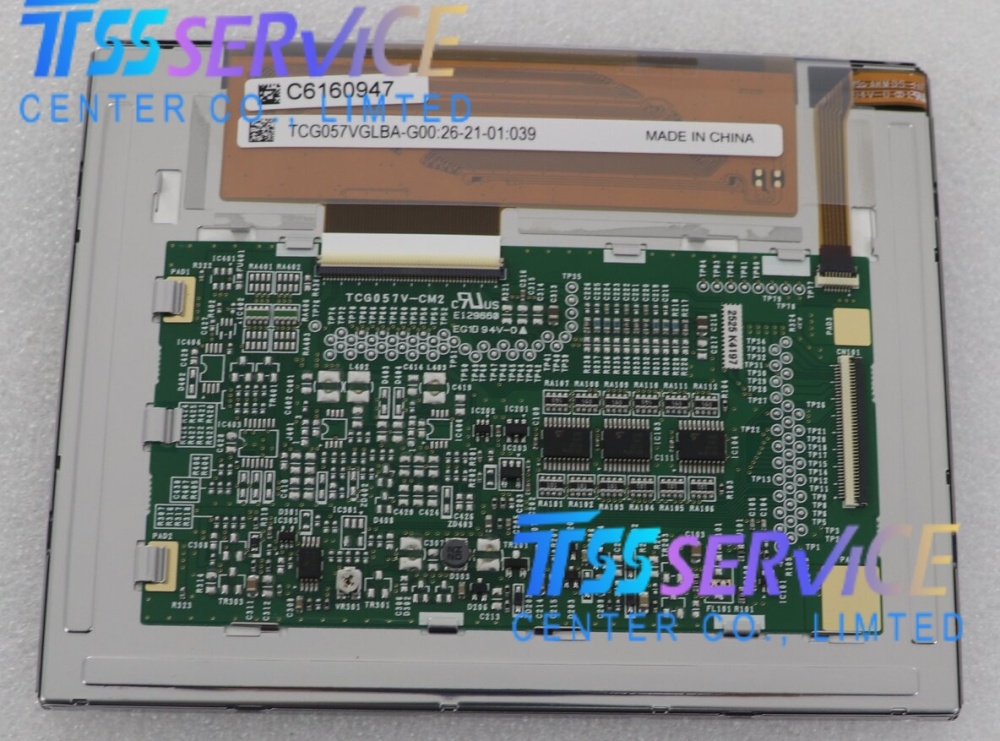

KYOCERA NEW 5.7 inch LCD Display Panel TCG057VGLBA-G00-79-05-1 for Industrial
| Parameter |
Value |
| Model |
TCG057VGLBA-G00-79-05-1 |
| Brand |
KYOCERA |
| Display Type |
a-Si TFT-LCD (Transmissive Color TFT) |
| Screen Size |
5.7 inches |
| Resolution |
640(RGB) × 480 (VGA), 141 PPI |
| Color Support |
262K colors, 52% NTSC |
| Brightness |
250 cd/m² (Typical) |
| Contrast Ratio |
500:1 (Typical) |
| Display Mode |
TN, Normally White, Transmissive |
| Surface Treatment |
Glare (Haze 0%) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Backlight |
WLED, 3 strings, 40,000 hours (Typical lifetime) |
| Supply Voltage |
3.3V (Typical) |
| Interface |
40-pin Parallel RGB (1 channel, 6-bit), Terminal |
| Dimensions |
127.2(H) × 100.4(V) × 6(D) mm (Outline) |
The KYOCERA TCG057VGLBA-G00-79-05-1 is an industrial-grade display designed for reliability in harsh environments. It is suitable for the following specific applications:
- Industrial Equipment: CNC machines, industrial automation controllers, and human-machine interface (HMI) panels.
- Medical Devices: Patient monitors, diagnostic instruments, and portable medical equipment.
- Automotive & Navigation: In-vehicle information displays, industrial navigation systems, and vehicle control terminals.
- ATM & Self-service: Point-of-sale (POS) systems, kiosks, and automated teller machines (ATM).
- Handheld Devices: Ruggedized handheld PDAs and mobile data terminals.
- Surveillance: Security system monitors and access control panels.
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
