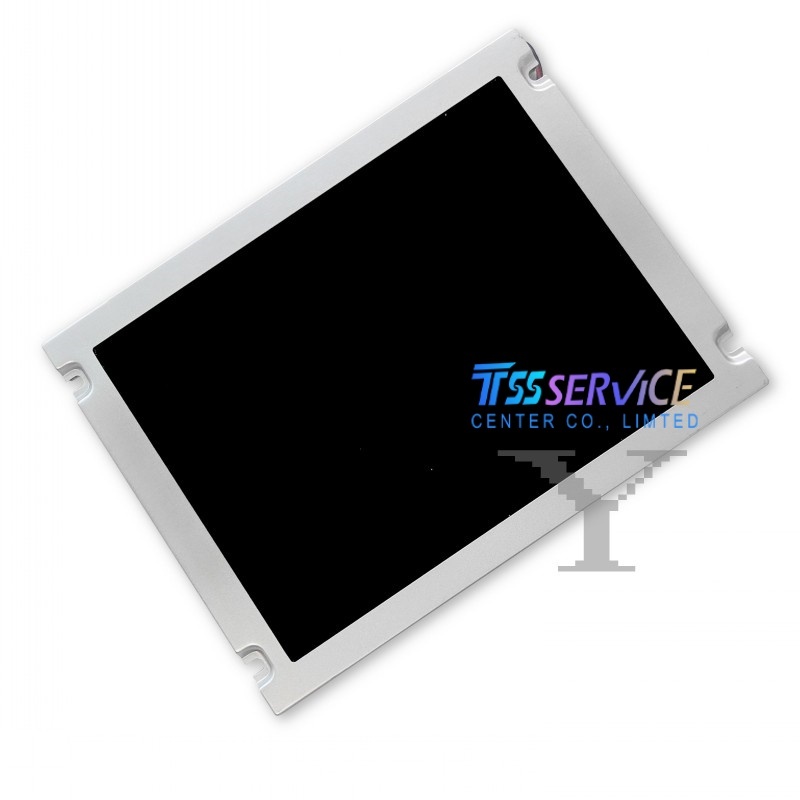

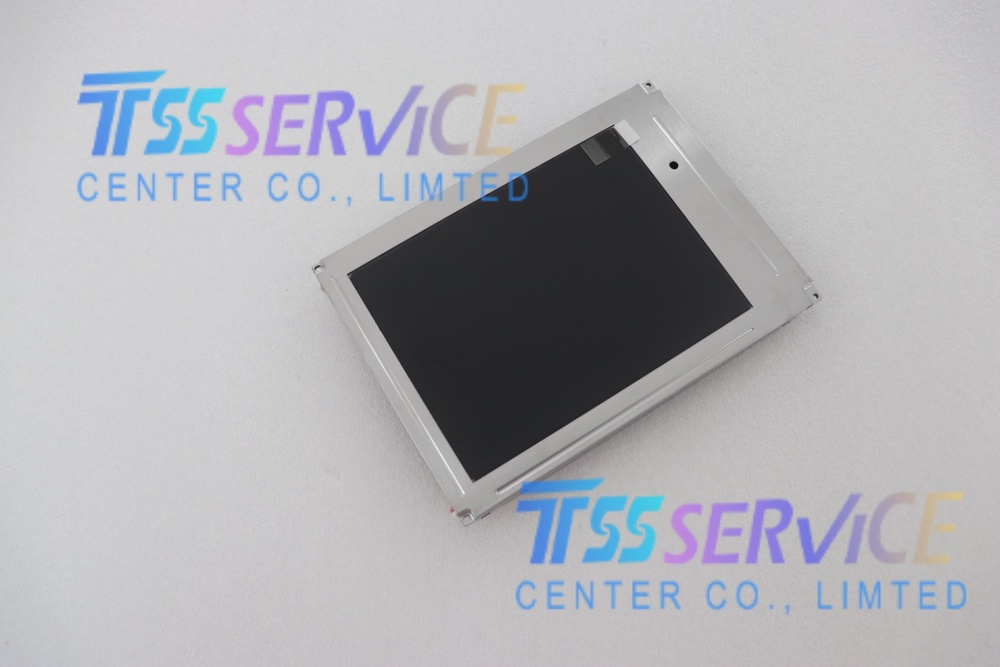

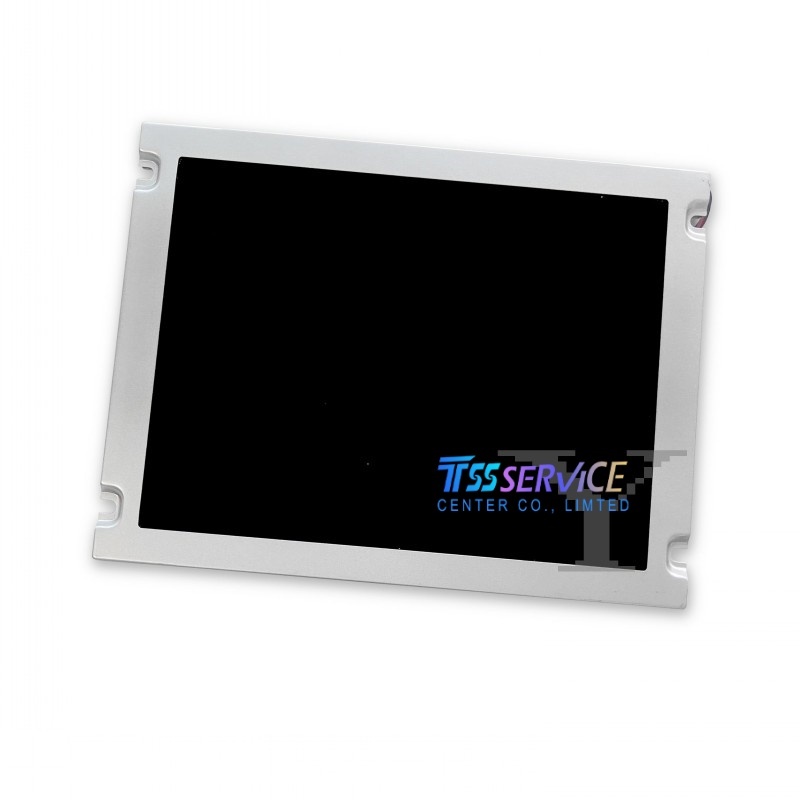

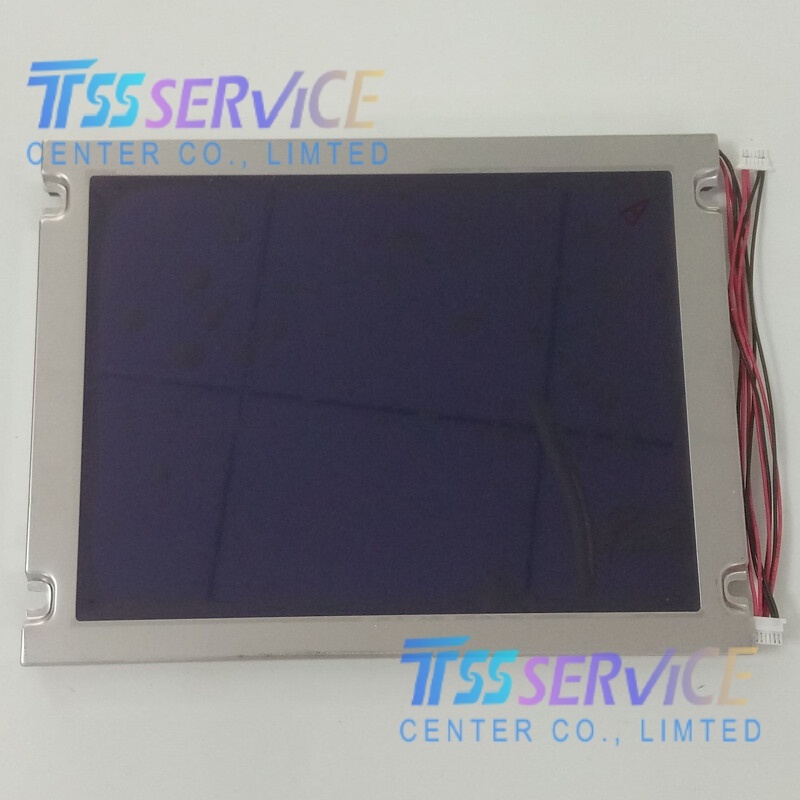

Part no : T-51440GL070H-FW-AIN
Brand : OPTREX
INCH : 7"
Resolution 640 (RGB) × 480 pixels (VGA)
| Parameter Item | Specification Details |
|---|---|
| Part Number | T-51440GL070H-FW-AIN |
| Manufacturer | Optrex (Kyocera) |
| Display Size | 7.0 inch, landscape |
| Resolution | 480 (RGB) × 234 pixels |
| Technology | a-Si TFT-LCD, TN, normally white, transmissive |
| Active Area | 154.1 × 75.1 mm |
| Outline Dimension | 170.0 × 95.0 × 6.5 mm |
| Brightness | 400 cd/m² (typ.) |
| Contrast Ratio | 150:1 (min.) |
| Viewing Angle | 60°/60°/30°/60° (L/R/U/D, CR≥10) |
| Display Colors | Full color (RGB vertical stripe) |
| Backlight | CCFL, long life, with inverter |
| Interface | Analog RGB (VGA compatible) |
| Supply Voltage | 12 VDC (backlight), 3.3 VDC (logic) |
| Operating Temperature | -30°C ~ +85°C |
| Storage Temperature | -40°C ~ +90°C |
| Touch Screen | Without touch |
| Surface Treatment | Standard (non-AG) |
| Weight | Approx. 300 g |
| Certifications | RoHS compliant |
| Status | In production / Industrial legacy standard |
