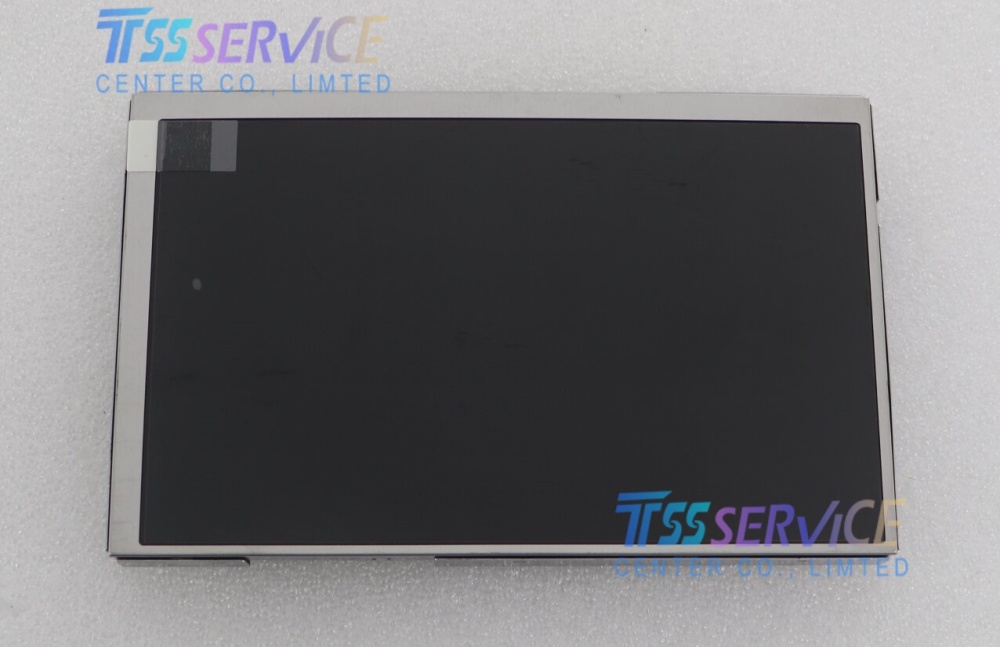

PM070WL5 PVI 7.0inch 800x480 WVGA TFT-LCD Display Panel

Name: PM070WL5 PVI 7.0inch 800x480 WVGA TFT-LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: PM070WL5(LF)
Price: 133 USD
Availability: InStock

SKU: PM070WL5(LF)

1，Condition: New，Grade A

2，Description: PM070WL5 7.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $133.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

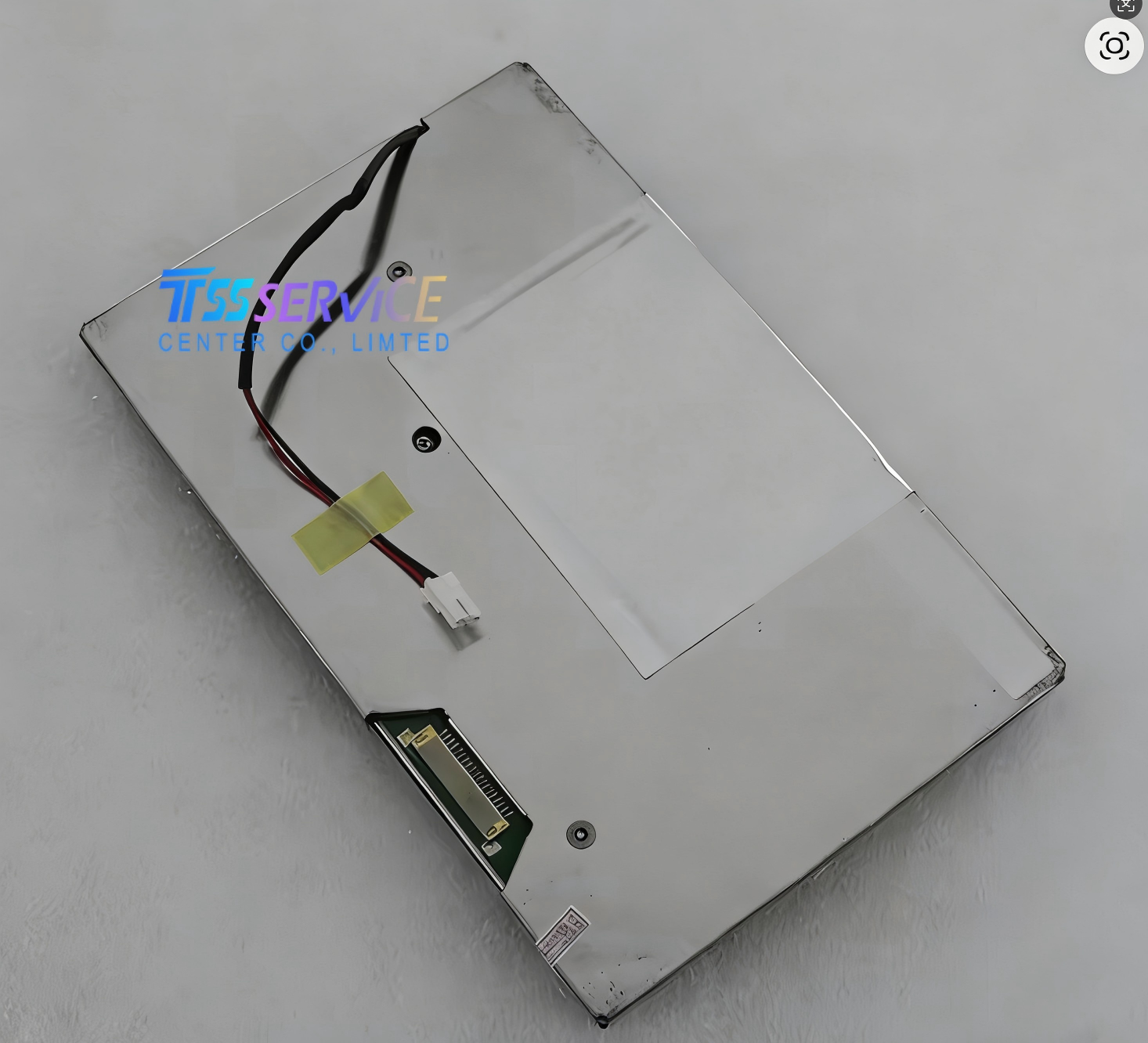

The PM070WL5 is a 7.0-inch diagonal TFT-LCD module manufactured by PVI (Prime View International), a well-known brand in industrial and automotive display solutions. Utilizing a-Si TFT-LCD technology with LCM packaging, this WVGA panel delivers reliable performance for a wide range of applications requiring wide temperature tolerance and durable operation.

Parameter	Specification
Brand	PVI
Model P/N	PM070WL5
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	156.0(W)×95.0(H) mm
Outline Size	166.3(W)×105.3(H)×11(D) mm
Surface	Antiglare
Brightness	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	60/60/40/55 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View On	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	3S11P WLED, 30K hours, Without Driver
Touch Screen	Without
Panel Weight	265±10g
Signal Interface	LVDS (1 ch, 6-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Operating Temp.	-30 ~ 80 °C
Storage Temp.	-40 ~ 85 °C

Applications

Automotive infotainment and instrument clusters
Industrial control HMIs (Human-Machine Interfaces)
Outdoor terminals and kiosks
Marine navigation displays
Heavy equipment vehicle displays
Cold chain logistics monitoring
Factory automation equipment
Medical diagnostic devices (where wide temp is required)
