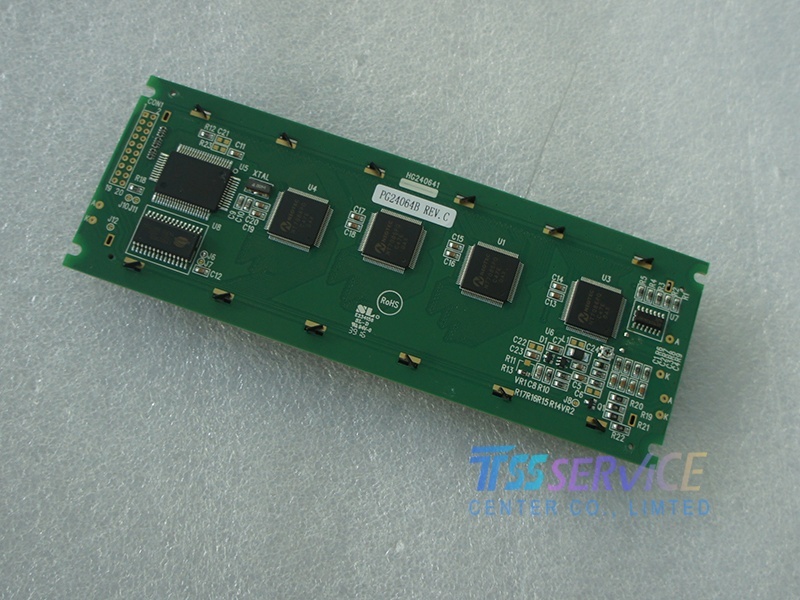

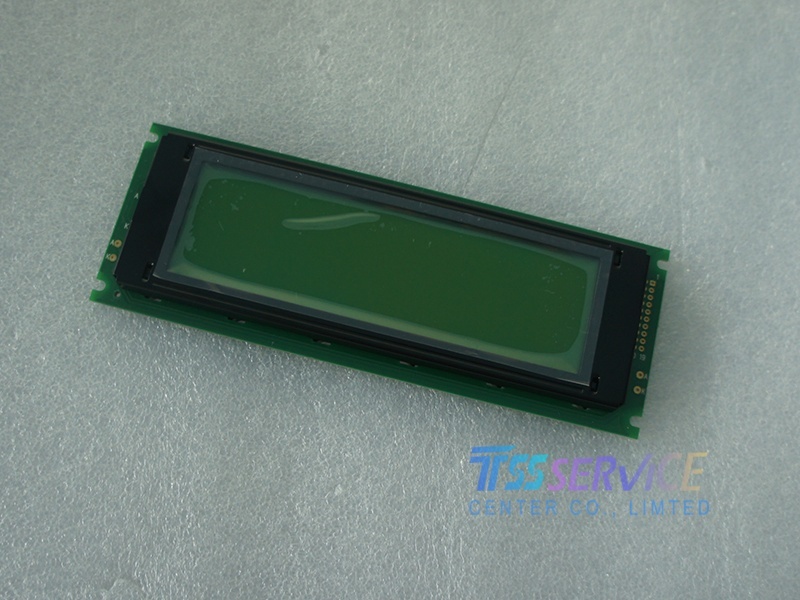

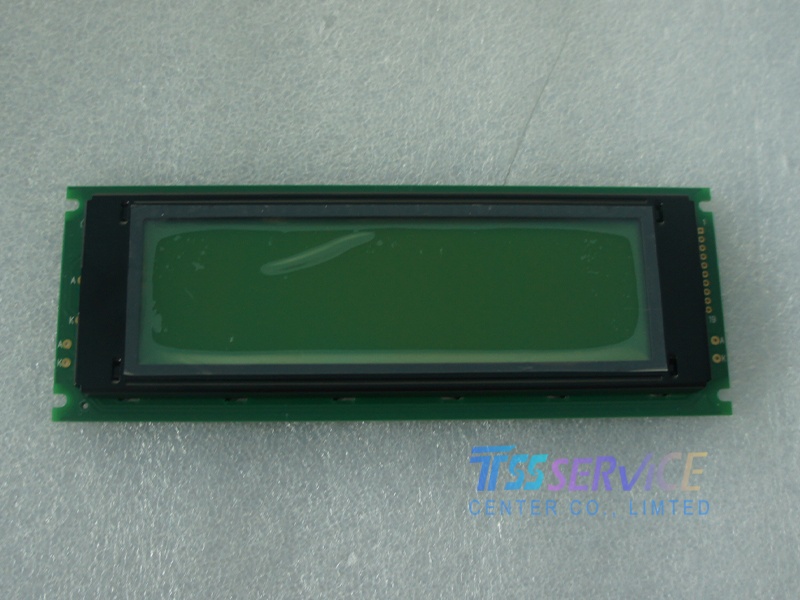

PG24064A-P2 (Powertip Original 240×64 STN Graphic LCD Module)
PG24064A-P2 is an industrial monochrome STN graphic LCD module manufactured by Powertip, with 240×64 pixel resolution, built-in LC7981/T6963C controller and standard 8-bit MCU parallel interface. Equipped with yellow-green LED backlight, black-on-green display mode and robust industrial temperature performance, this module is widely used for legacy industrial control panels, testing instruments, medical equipment and old automation device screen replacement。
| Parameter Item |
Detailed Specification |
| Part Number |
PG24064A-P2 |
| Manufacturer |
Powertip Technology |
| Display Resolution |
240(Column) × 64(Row) Dots Graphic |
| Display Type |
STN Positive Transflective, Black Font on Yellow-Green Background |
| Active View Area |
132.0(W) × 39.0(H) mm |
| Overall Outline Size |
180.0(W) × 65.0(H) × 14.5(T) mm |
| Dot Pitch / Dot Size |
0.53×0.53mm / 0.49×0.49mm |
| Built-in Controller |
LC7981 Compatible, matches T6963C driver circuit |
| Signal Interface |
8-bit Parallel MCU 8080 Bus, 20Pin Straight Pin Header |
| Logic Supply Voltage |
DC 5.0V(Typ:4.75~5.25V) |
| Backlight |
Yellow-Green LED Backlight, VLED=4.2V typical |
| Typical Contrast Ratio |
18:1 |
| View Direction |
6 O’clock Optimal Viewing Angle |
| Operating Temperature |
0℃ ~ +55℃ |
| Storage Temperature |
-20℃ ~ +70℃ |
| Compliance |
RoHS Certified Industrial Grade |
| Product Feature |
Sunlight readable, low power consumption, anti-vibration structure |
