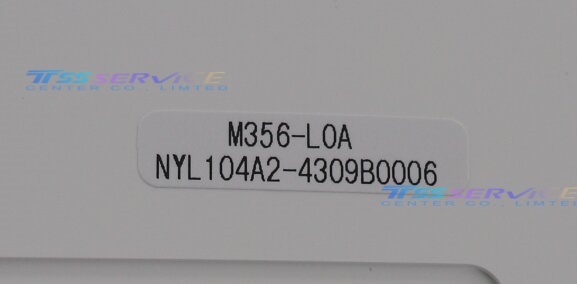

M356-L0A | Nanya 9.4-inch STN Industrial LCD Panel
M356-L0A is a 9.4-inch monochrome STN industrial LCD module produced by Nanya (South Asia Display) with standard VGA 640×480 resolution, single CCFL backlight and parallel digital interface. Featuring anti-glare front glass, stable low power consumption and robust industrial mechanical frame, this panel is widely used as replacement screen for legacy CNC controllers, old industrial HMI, testing instruments and traditional medical analytical equipment。
| Parameter Item |
Detailed Specification |
| Part Number |
M356-L0A (Alias: M356-10A / M356-LOA) |
| Manufacturer |
Nanya (South Asia, Taiwan) |
| Diagonal Size |
9.4 inch STN LCD |
| Native Resolution |
640(RGB) × 480 (VGA, monochrome grayscale) |
| Display Mode |
STN Transmissive, Normally White |
| Active Area |
190.5mm(W) × 142.8mm(H) |
| Overall Outline Dimension |
215mm(W) × 168mm(H) × 12.5mm(T) |
| Surface Treatment |
Anti-glare hard coated front panel |
| Typical Brightness |
180 cd/m² |
| Contrast Ratio |
220:1(Typical) |
| Viewing Angle(L/R/U/D) |
45°/45°/30°/35° (CR≥10) |
| Color Mode |
16-level grayscale monochrome display |
| Backlight |
Single side CCFL lamp, external high-voltage inverter required |
| Signal Interface |
Parallel 8-bit digital standard industrial pin connector |
| Logic Supply Voltage |
DC 5.0V (±5%) |
| Operating Temperature |
0℃ ~ +55℃ |
| Storage Temperature |
-25℃ ~ +65℃ |
| Net Weight |
Approx 1.2KG |
| Product Grade |
Industrial A-grade, obsolete original spare screen |
