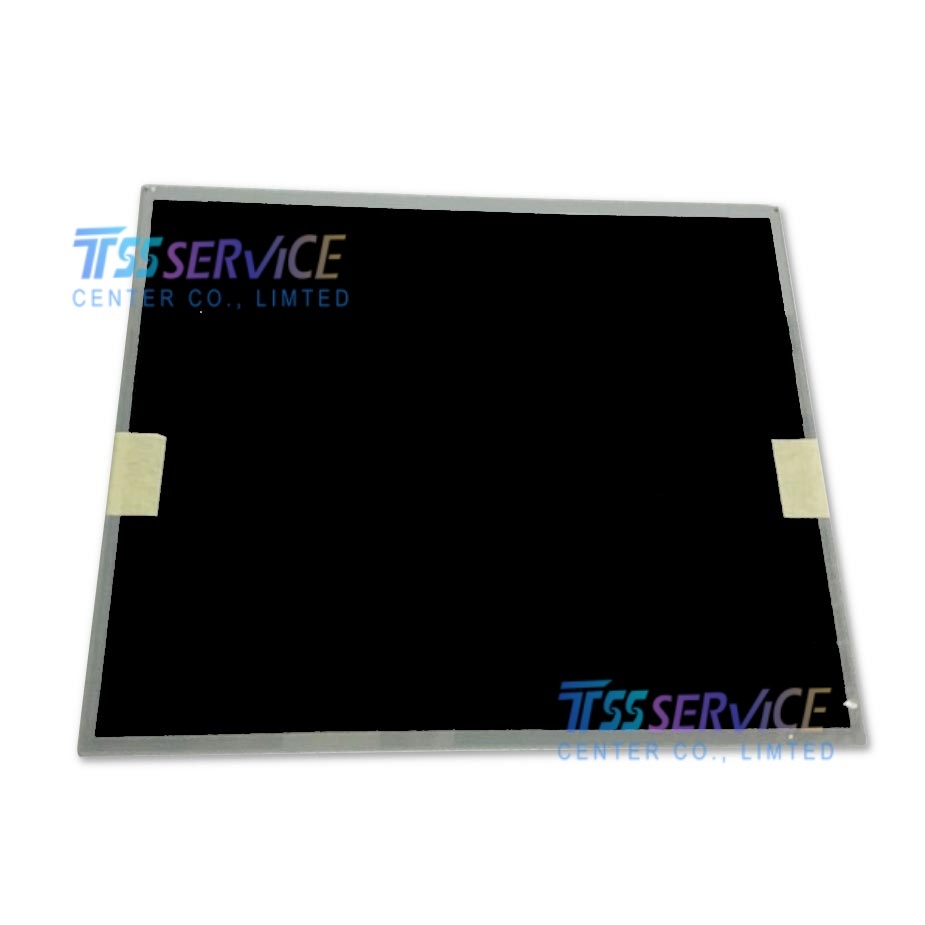

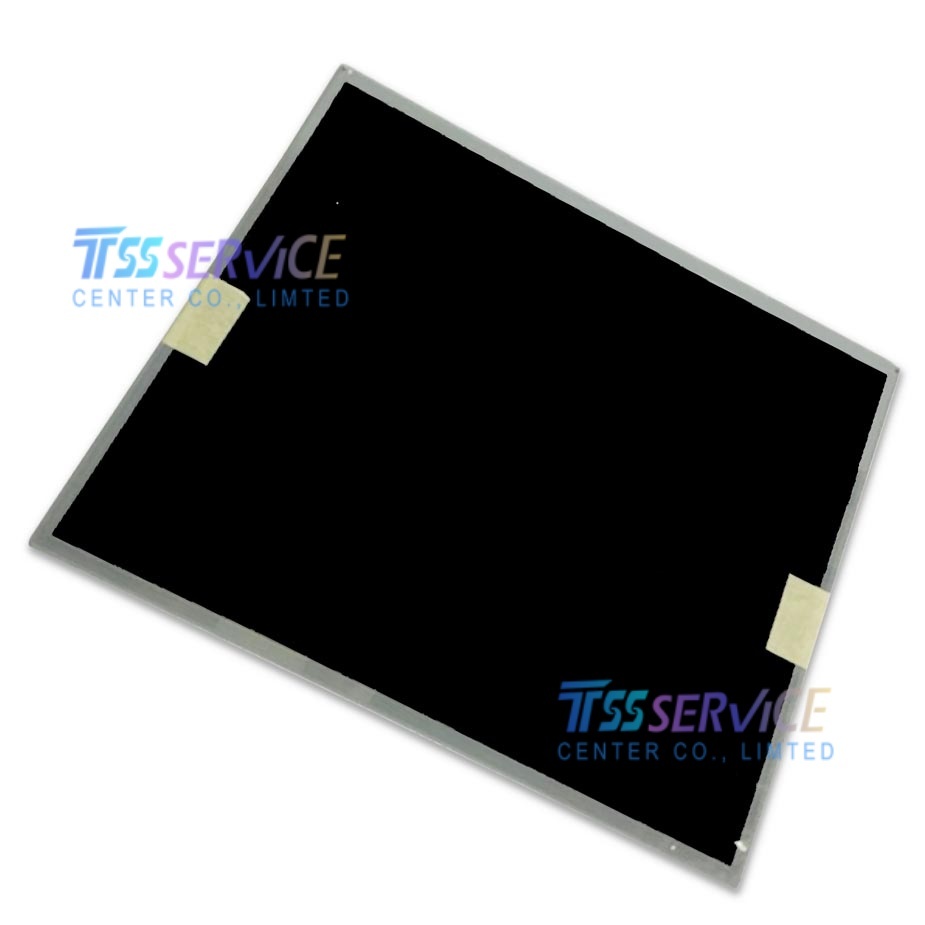

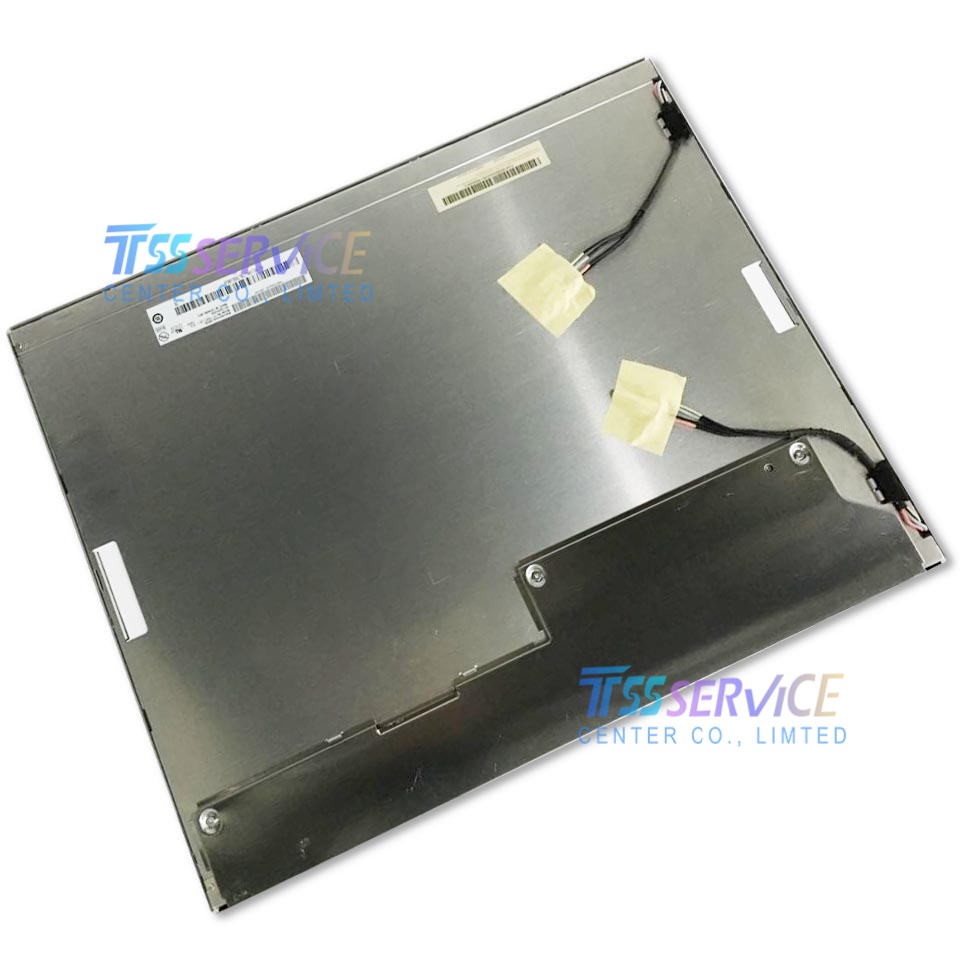

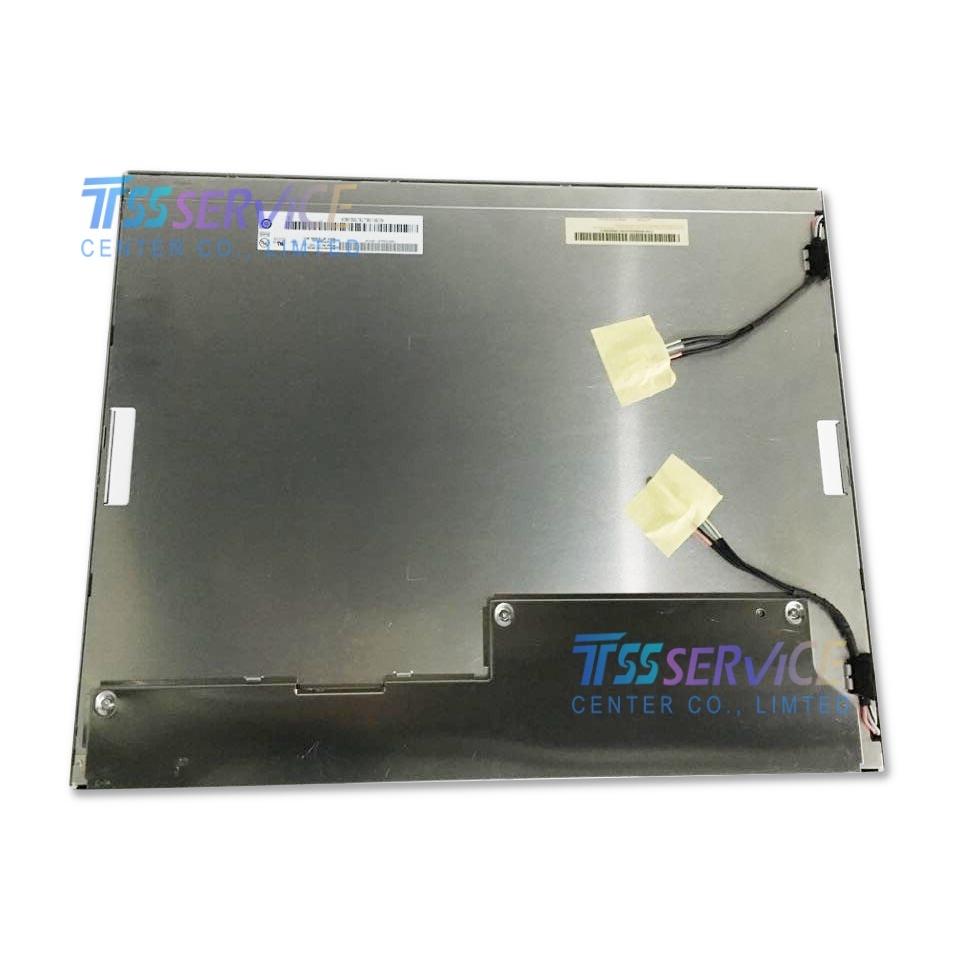

M190EG01 V.0 AUO 19" 1280×1024 LCD DISPLAY PANEL

SKU: M190EG01 V.0

Part no : COM35H3P42ULC
Brand : Ortustech
INCH :  3.5"

Resolution 240×320

LCD Panel for Industrial Machine

0.0 (0 Reviews)
0 Sold
$85.00 $95.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
1/1
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • M190EG01 V.0 AUO 19" 1280×1024  LCD DISPLAY PANEL
  • Description

Brief Description (≤100 chars)

AUO 19” SXGA TFT-LCD, 1280×1024, 300 cd/m², 1300:1, LVDS, CCFL, wide viewing, industrial grade, medical, high reliability.

Specifications

Parameter Details
Model M190EG01 V.0
Brand AUO (AU Optronics)
Size 19.0 inches
Resolution 1280(RGB)×1024 (SXGA)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.)
Viewing Angle 89/89/89/89 (U/D/L/R, CR≥10)
Interface LVDS (2 ch 8-bit, 30 pins)
Backlight 4×CCFL, 50,000 hrs lifespan
Operating Temp 0°C ~ +50°C
Storage Temp -20°C ~ +60°C
Dimensions (W×H×D) 396 × 324 × 17.53 mm
Active Area 376.32 × 301.056 mm

Key Applications (English)

  • Industrial Control Panels: For factory automation, HMI, and process monitoring in harsh environments.
  • Medical Monitoring Devices: Patient monitors and diagnostic equipment requiring stable, accurate display.
  • ATM & Kiosk Systems: Financial terminals and self-service machines needing long-term reliability.
  • Desktop & Industrial Monitors: Office and factory workstations with wide viewing and consistent color.
