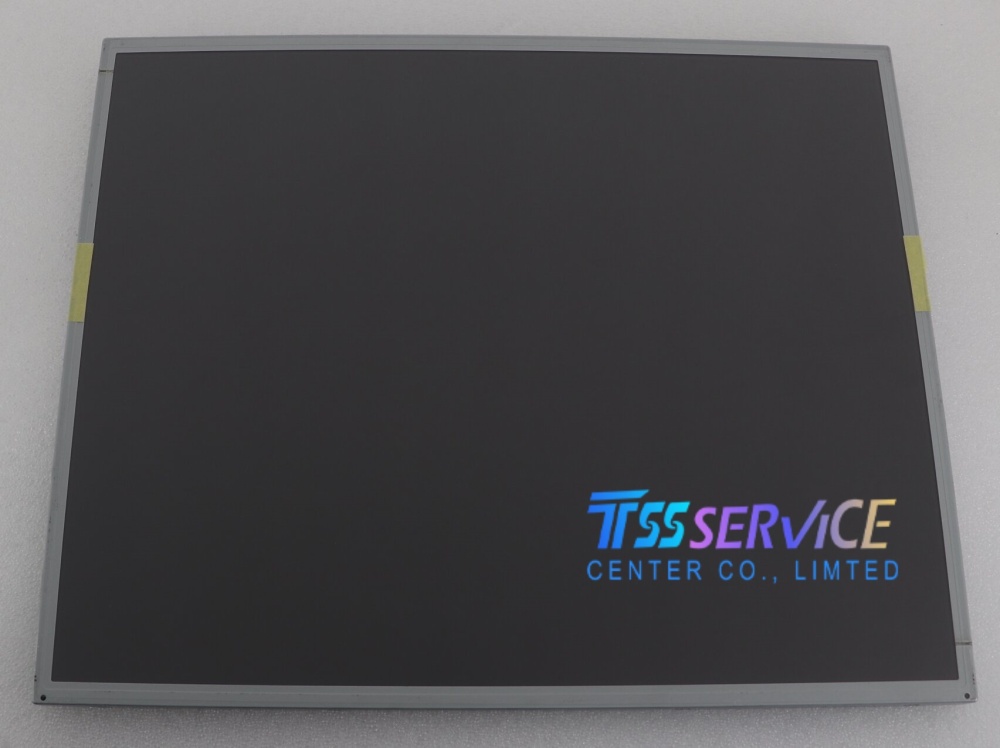

AUO NEW 19.0 inch LCD Display Panel M190A1-L0A Rev.C1 for Industrial
| Parameter |
Specification |
| Panel Brand |
AU Optronics (AUO) |
| Panel Model |
M190A1-L0A Rev.C1 |
| Panel Size |
19.0 inch |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Resolution |
1440(RGB)×900 [WXGA+] |
| Pixel Pitch |
0.2835 × 0.2835 mm |
| Display Area |
408.24 (W) × 255.15 (H) mm |
| Overall Dimension |
447.0 (W) × 296.6 (H) × 20.9 (D) mm |
| Surface Treatment |
Anti-Glare (Haze 25%), Hard coating (3H) |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) (Up/Down/Left/Right) |
| Display Mode |
IPS (In-Plane Switching), Normally Black |
| Response Time |
8 ms (Typ.)(Tr+Td) |
| Display Colors |
16.7M (8-bit), 72% NTSC |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp), WLED option depending on sub-revision |
| Signal Interface |
LVDS (2 ch, 8-bit), 30 pins, Connector |
| Supply Voltage |
5.0V (Typ.) |
| Operating Temp. |
0 ~ 50 °C |
| Storage Temp. |
-20 ~ 60 °C |
The M190A1-L0A Rev.C1 is a robust display panel known for its IPS technology (providing wide viewing angles) and WXGA+ resolution. Its specific applications include:
- Desktop LCD Monitors: As a standard 19-inch widescreen panel with a 16:10 aspect ratio, it was widely used in mainstream computer monitors for office work, graphic design, and general home computing during the late 2000s and early 2010s.
- All-in-One (AIO) PCs: Due to its reliable performance and standard dimensions, this panel served as a core display component for various brands of 19-inch All-in-One desktop computers.
- Medical & Industrial Displays: The IPS display mode offers excellent color accuracy and wide viewing angles (85/85/80/80), making it suitable for medical imaging monitors or industrial control panels where screen visibility from different angles is critical.
- Broadcasting & Studio Monitors: With its 72% NTSC color gamut and high contrast ratio, it has been utilized in entry-level video editing stations and broadcasting reference monitors requiring consistent color reproduction.
- Digital Signage: The panel's anti-glare surface treatment and durable build allow it to be integrated into indoor digital signage, information kiosks, and public display terminals.
AUO
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
